Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Lattice Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the latest prices |
| Packaging Details: | Exported Containers |
| Delivery Time: | 35 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800000 Metric Ton/Metric Tons Per Year |
| Product Name: | Transmission Steel Lattice Tower | Usage: | Overhead Steel Tower |
|---|---|---|---|
| Wind Speed: | 120KM/H | Voltage Grade: | 115KV |
| Material: | Steel | Surface Treatment: | Hot-dip-galvanized Following ASTM123 |
| High Light: | 115KV Telecommunication Steel Tower,Hot Dip Galvanized Telecommunication Steel Tower,115KV Lattice Steel Towers |
||

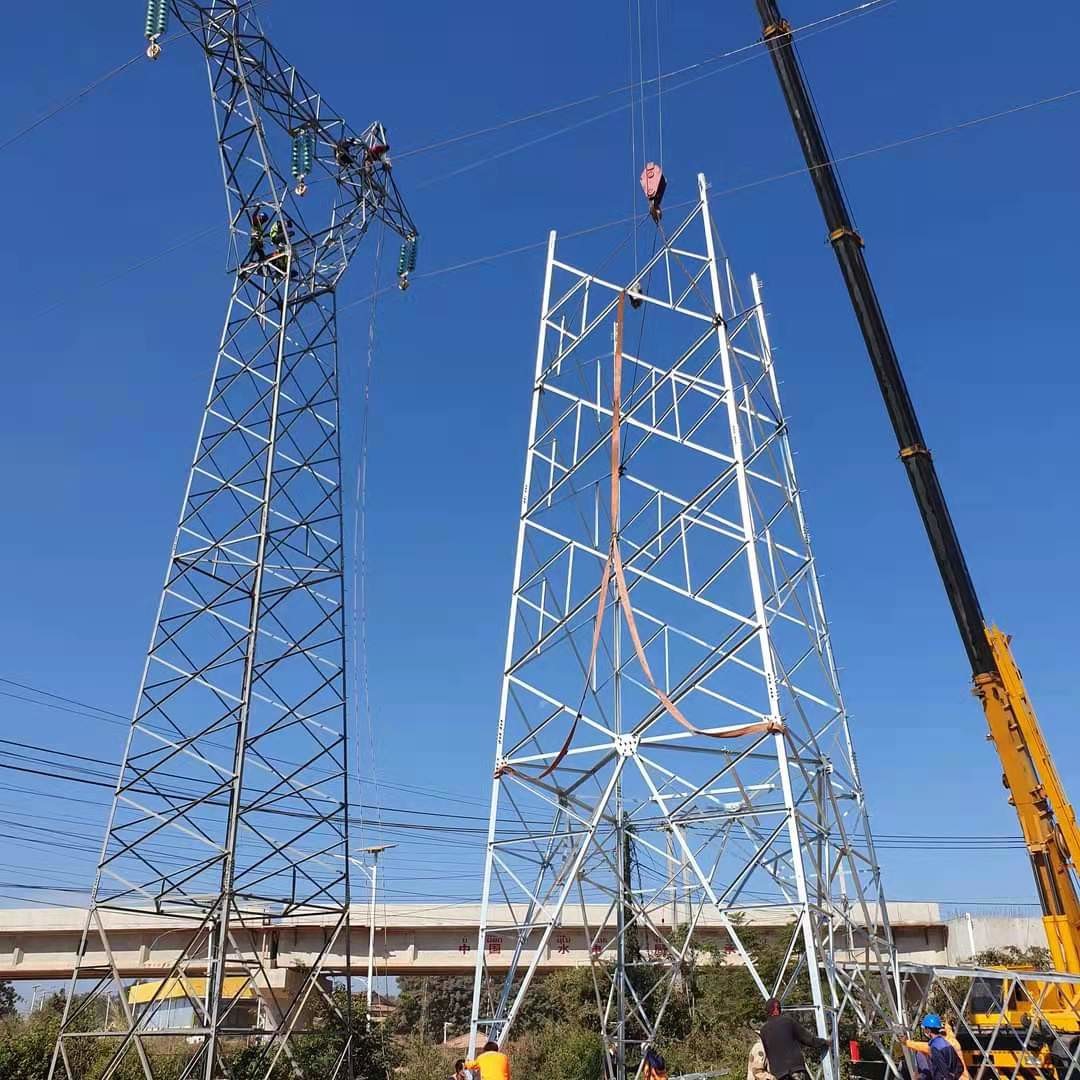

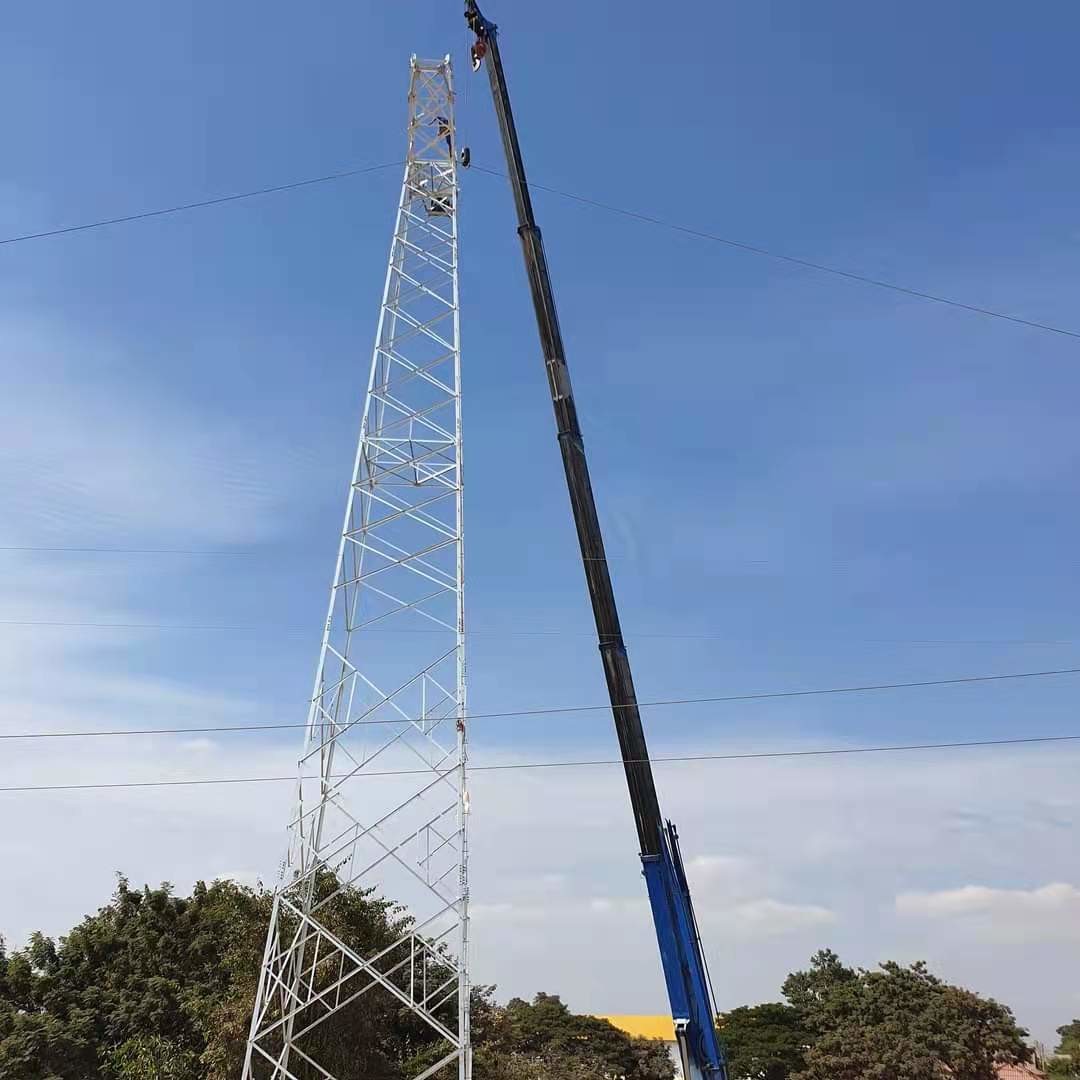

115 Kv Hot Dip Galvanized Telecommunication Antenna Transmission Lattice Steel Towers
Each power transmission tower, depending on its type, size and shape, includes a series of varied parts, components and accessories; with detailed engineering calculations and in accordance with the customer orders and needs, using technology and Advanced software.
After precise investigation, control and final approval, plans are sent to production unit; where each piece, is cut, bend or/and punched by the very advanced CNC Machines, and then is galvanized to protect the steel from corrosion before passing the stages of packaging, storage, to be transferred to the installation site.
A type of a power transmission tower depends on various factors such as voltage (33kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).
The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing coating thickness depends on the weather conditions at the location of tower.
| Height | From 10M-100M or according to client’s requirement | |||||
| Suit for | Electric Power Transmission and Distribution | |||||
| Shape | Polygonal or Conical | |||||
| Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
| Power Capacity | 10kV to 500kV | |||||
| Tolerance of the dimension | According to client’s requirement | |||||
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
| Joint of Poles | Slip joint, flanged connected | |||||
| Standard | ISO9001:2008 | |||||
| Length of per section | Within 13M once forming | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
| Life Period | More than 30 years, it is according to installing environment | |||||
