Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Transmission Steel Lattice Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest prices |
| Packaging Details: | Exported Containers |
| Delivery Time: | 35 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300000 Metric Ton/Metric Tons Per Year |
| Product Name: | Lattice Pylon Transmission Tower | Material List: | Steel Q355/Q255 |
|---|---|---|---|
| Voltage Capacity: | 10kV-700kV | Usage: | Transmission Line Tower |
| Lifetime: | More Than 30 Years | Wind Speed: | 120KM/H |
| High Light: | HDG Pylon Transmission Tower,110KV Pylon Transmission Tower,110KV Angle Steel Tower |
||

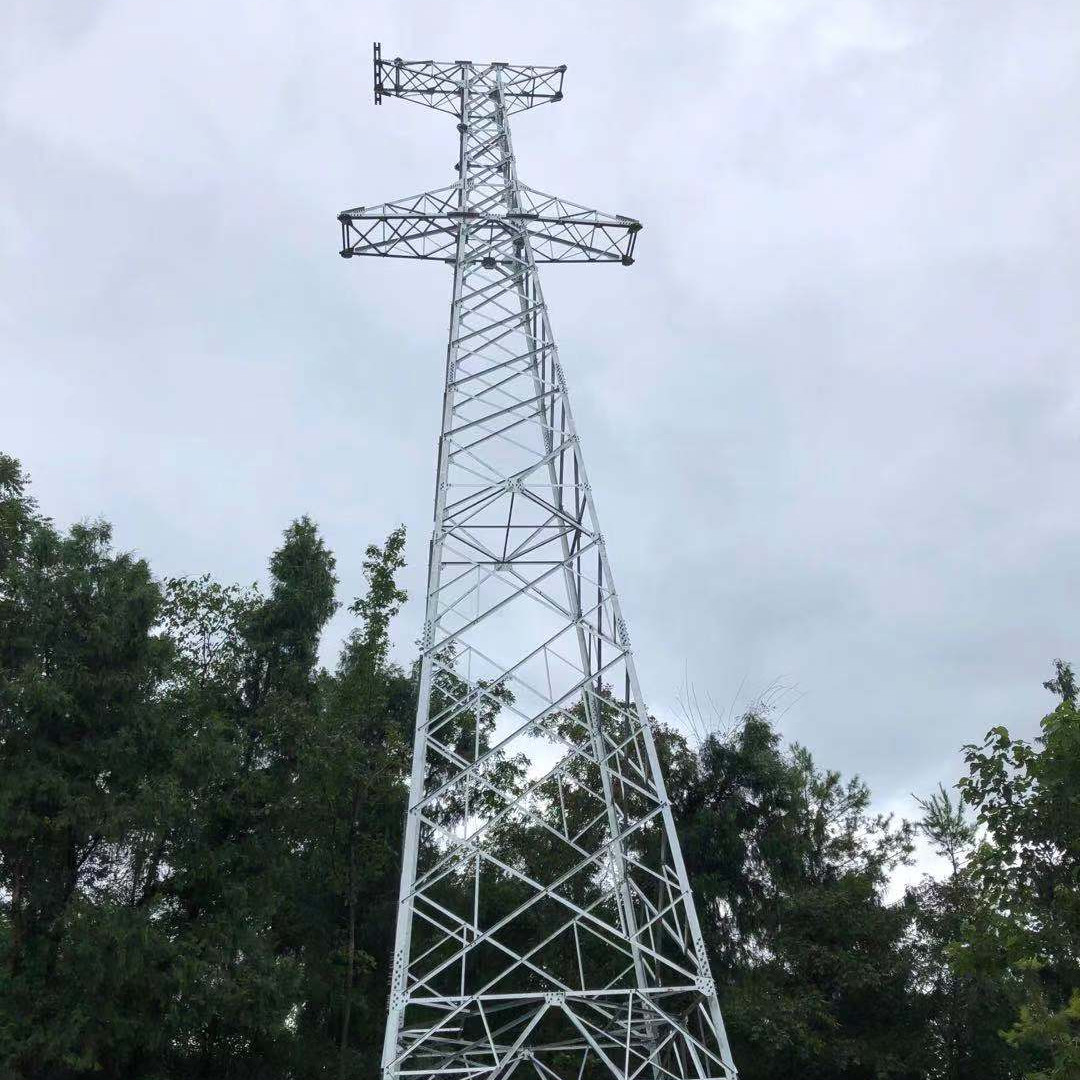

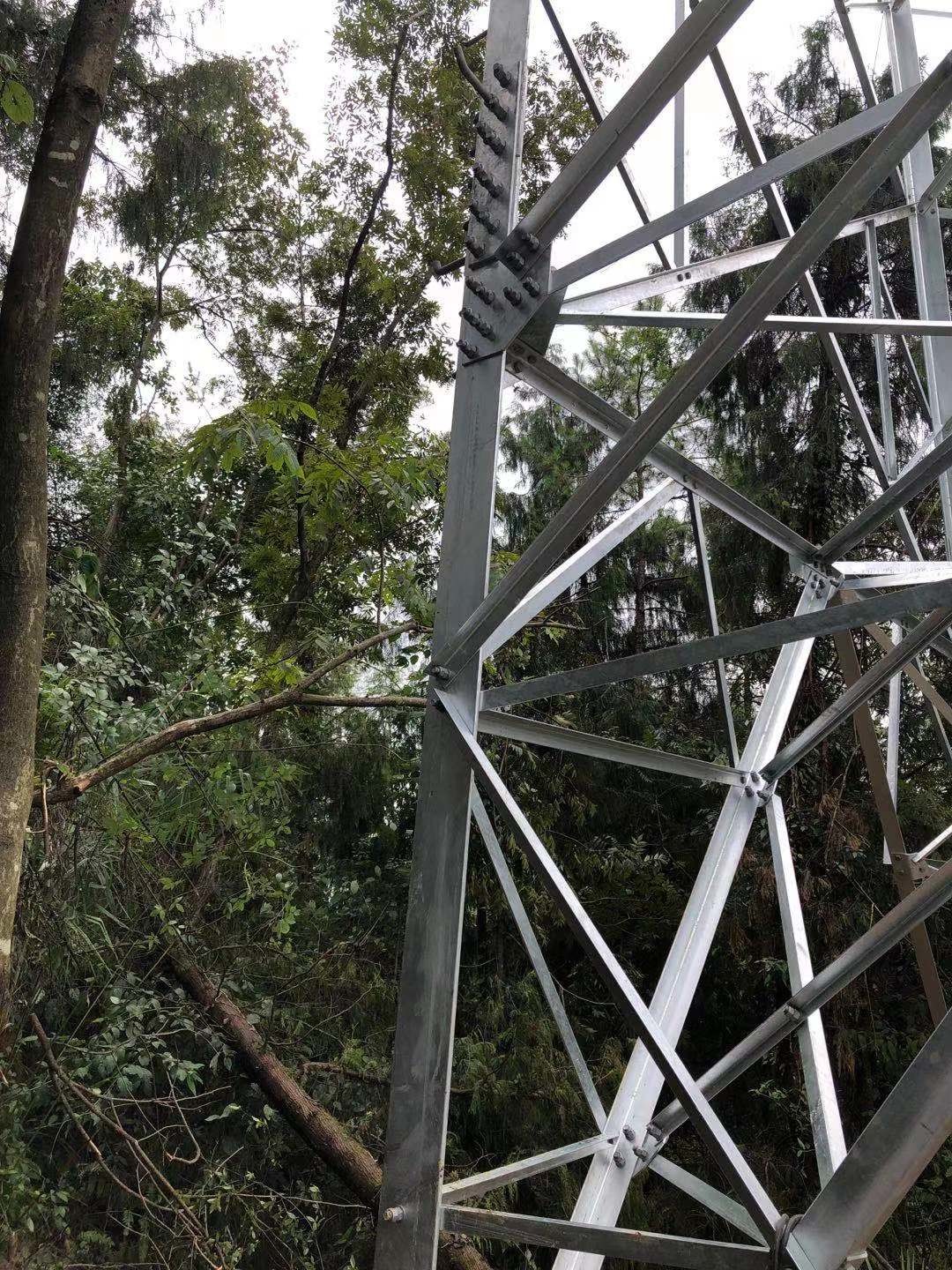

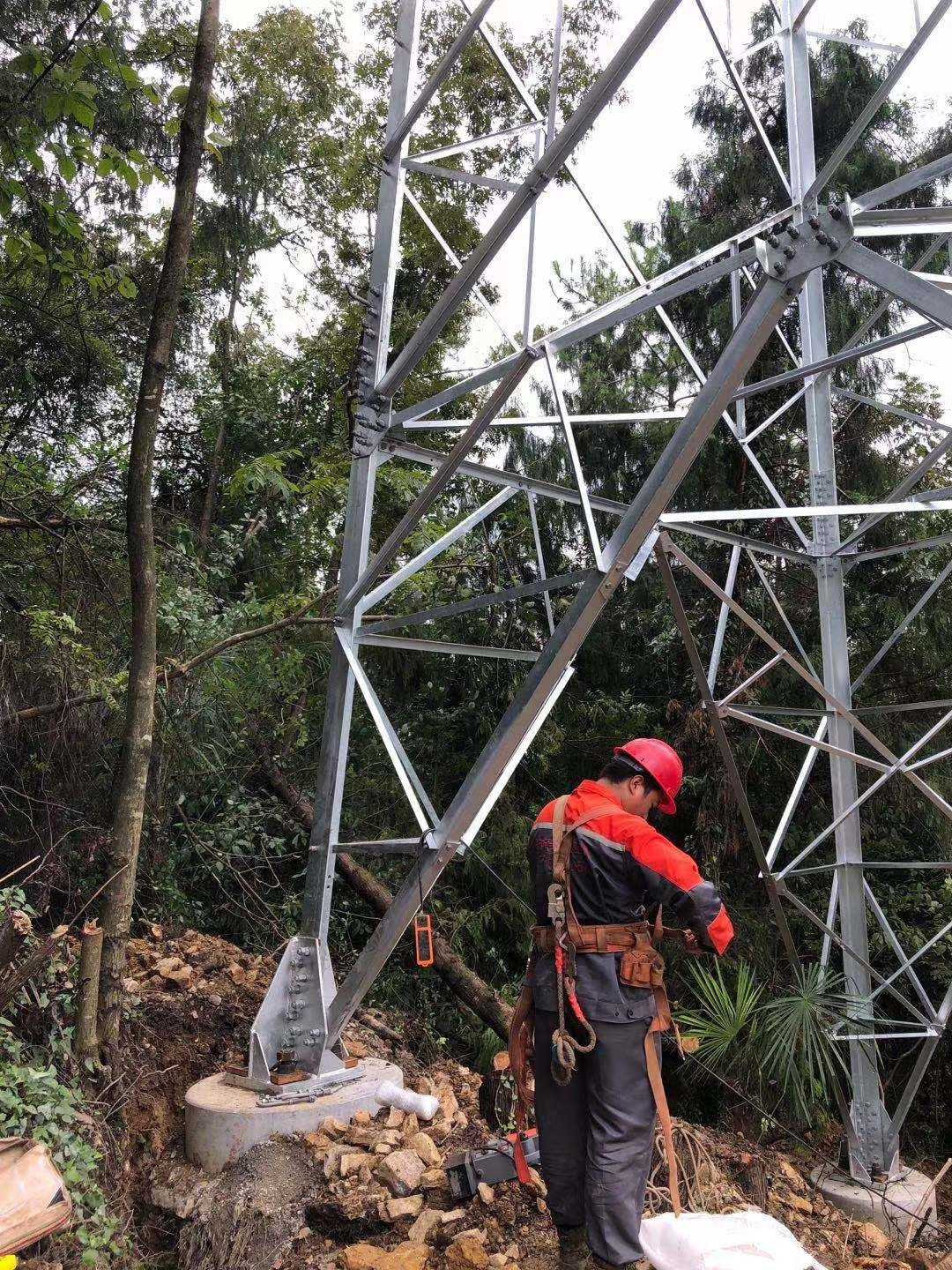

Hot Dip Galvanized 110kV Electric Power Tower Angualr Steel Lattice Pylon Transmission Tower
A type of a power transmission tower depends on various factors such as voltage (33kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).
The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing coating thickness depends on the weather conditions at the location of tower.
Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.
The main factor of any electrical power transmission line is transmission tower. The Main parameters of high voltage transmission lines are mainly depend on voltage level. There are different types of towers use for electrical power transmission lines. The major types of Transmission towers can categorize as bellow.
1. Suspension Tower
2. Tension Tower
3. Transposition Tower
4. Special Tower
| Material | Q345B/A572,minimum yield strength >=345N/mm2 |
| Q235B/A36,minimum yield strength>=235N/mm2 | |
| Standard | ISO 9001 |
| Height | 5-200M |
| Appearance | Hot Dip Galvanization and Color as customer's request |
| Working & Resting Platform Quantity | 1~3 pcs |
| Antenna Support Quantity | 3-18 PCS |
| Microwave Dish Quantity | 3-18 PCS |
| Quality Standard | ISO9001:2008 |
| Welding Standard | AWSD1.1 |
| Galvanization Standard | ASTM123 |
| Available Height | 5-80 m |
| Wind Speed | 5-300 KM/H |
| Life Time | More than 30 years |
Contact Person: Peter
Tel: 86-13958364836
Dia 660mm Conductor Stringing Blocks , Stringing Equipment For Overhead Power Lines

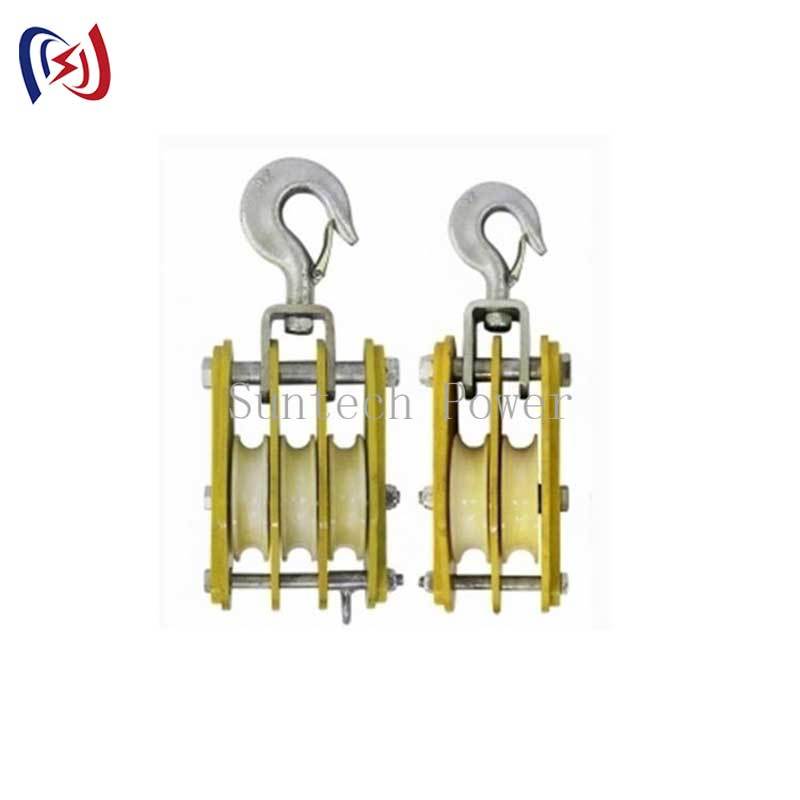

MC Nylon Cable Pulley Sheaves For Transmission Stringing Pulley Block

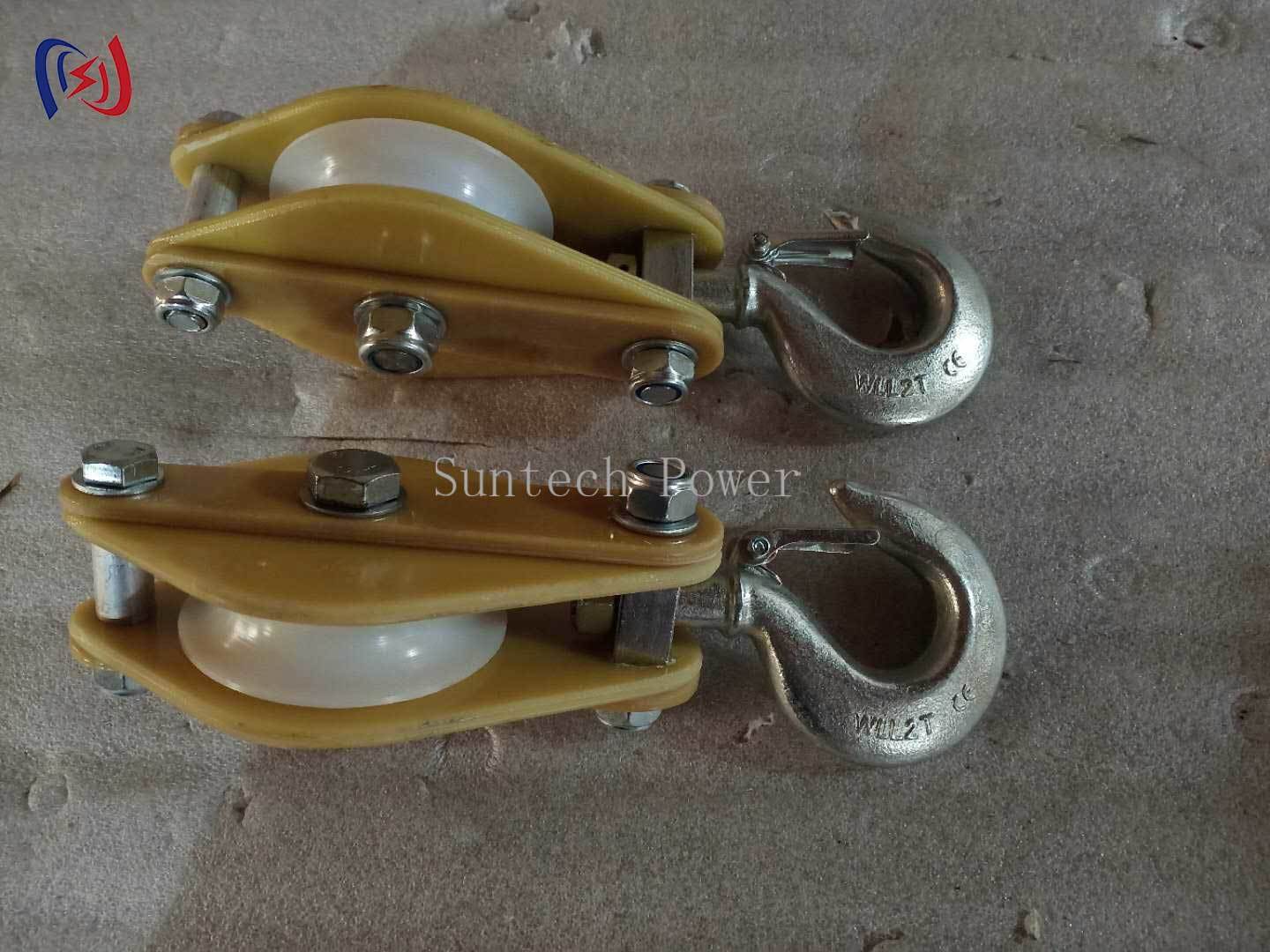

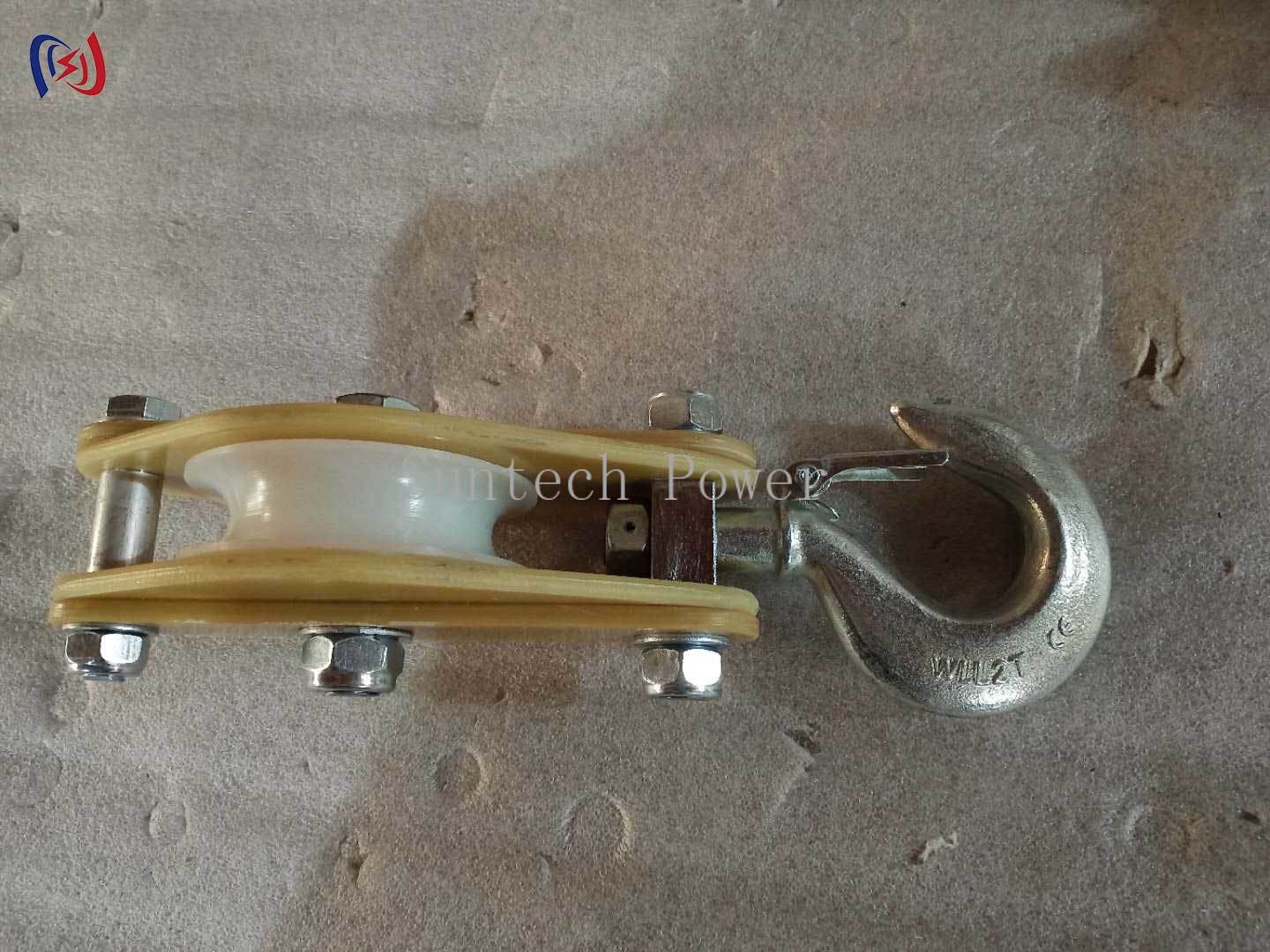

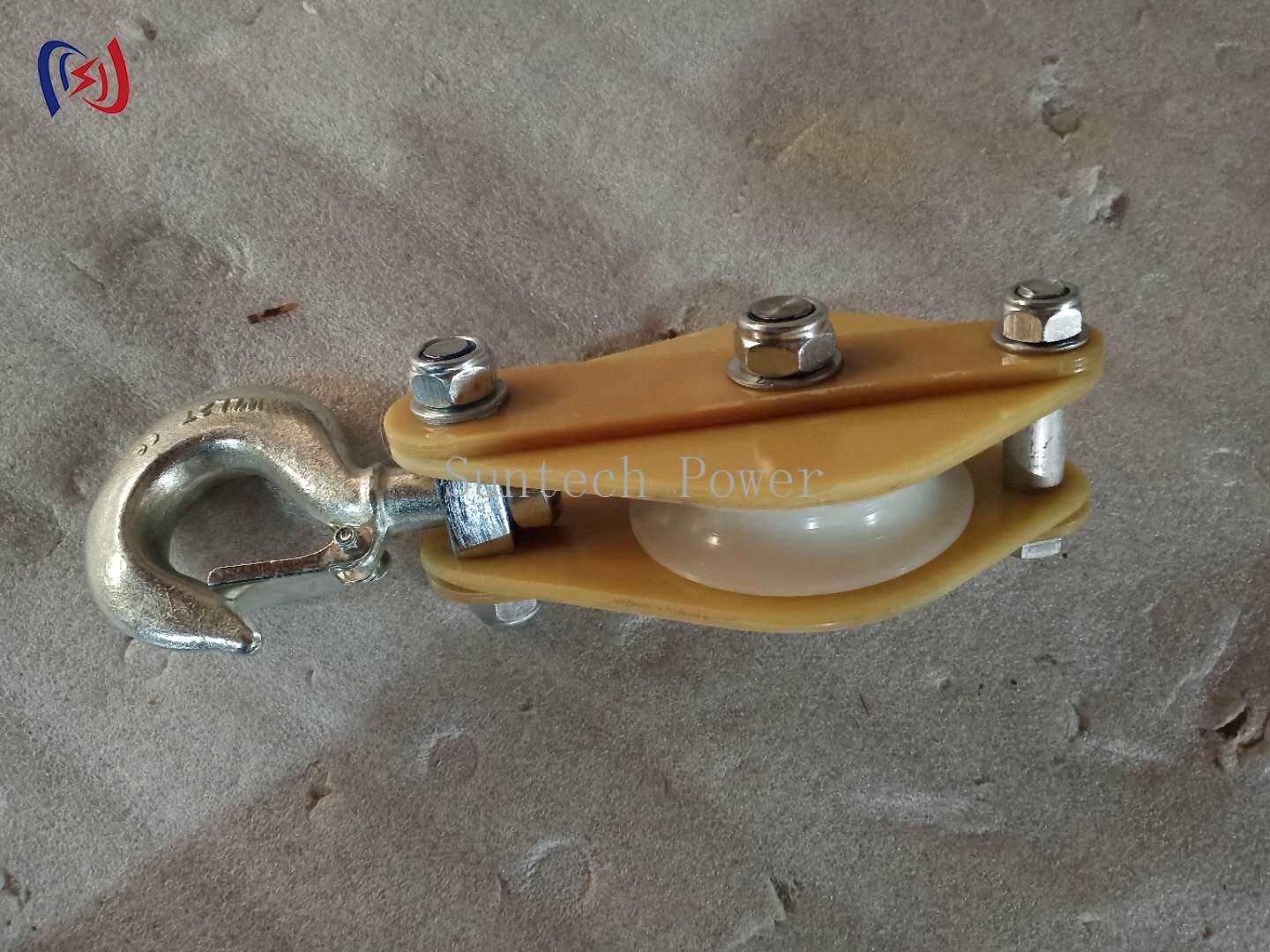

Factory Price MC Nylon Conductor Cable Stringing Pulley Block With Hook
