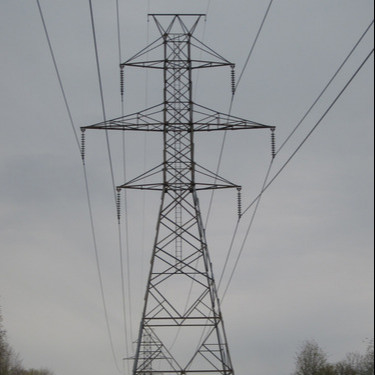

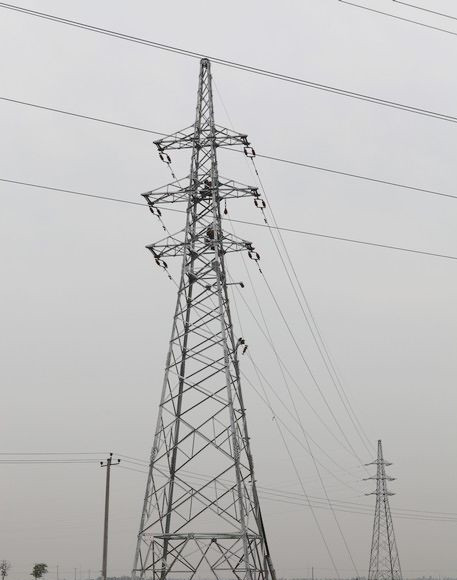

10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower

10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower

  • 10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower
  • 10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower
10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Transmission Lattice Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Name: Transmission Lattice Tower Model: Electric Power Tower
Usage: Transmission Line Wind Speed: 120KM/H
Voltage Grade: 10KV-1000KV Lifetime: Over 30 Years,According To Installing Environment
High Light:

HDG Angle Steel Lattice Transmission Tower

,

1000KV Lattice Transmission Tower

,

HDG Double Circuit Tower

Angle Steel Hot Dip Galvanized Double Circuit Electric Power Transmission Lattice Tower



Towers may be self-supporting and capable of resisting all forces due to conductor loads, unbalanced conductors, wind and ice in any direction. Such towers often have approximately square bases and usually four points of contact with the ground.

A semi-flexible tower is designed so that it can use overhead grounding wires to transfer mechanical load to adjacent structures, if a phase conductor breaks and the structure is subject to unbalanced loads. This type is useful at extra-high voltages, where phase conductors are bundled (two or more wires per phase). It is unlikely for all of them to break at once, barring a catastrophic crash or storm.

A guyed mast has a very small footprint and relies on guy wires in tension to support the structure and any unbalanced tension load from the conductors. A guyed tower can be made in a V shape, which saves weight and cost.



Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.



Product Steel Structure Tower
Height 5m to 30m or other height customer requirement
Suit for Electric Power Distribution Transmission Steel Tower
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52
Strength 2.5KN,5KN,8KN,10KN,12KN
Torlance of the dimenstion -0.02
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade I
The casing anti-corrosion performance Class II
Working atmosphere of lighting fixture -40 ºC~+45 ºC
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160km/hour
Minimum yield strength 335mpa
Minimum ultimate tensile strength 400mpa
Max ultimate tensile strength 620mpa
Standard ISO9001
Length of per section Within 14m once forming without slip joint
Welding
We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard : AWS ( American Welding Society ) D 1.1
Thickness 1mm to 30mm
Production Process Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Style Size and styles are variable as per customer request



10 - 1000KV HDG Angle Steel Double Circuit Lattice Transmission Tower 0
