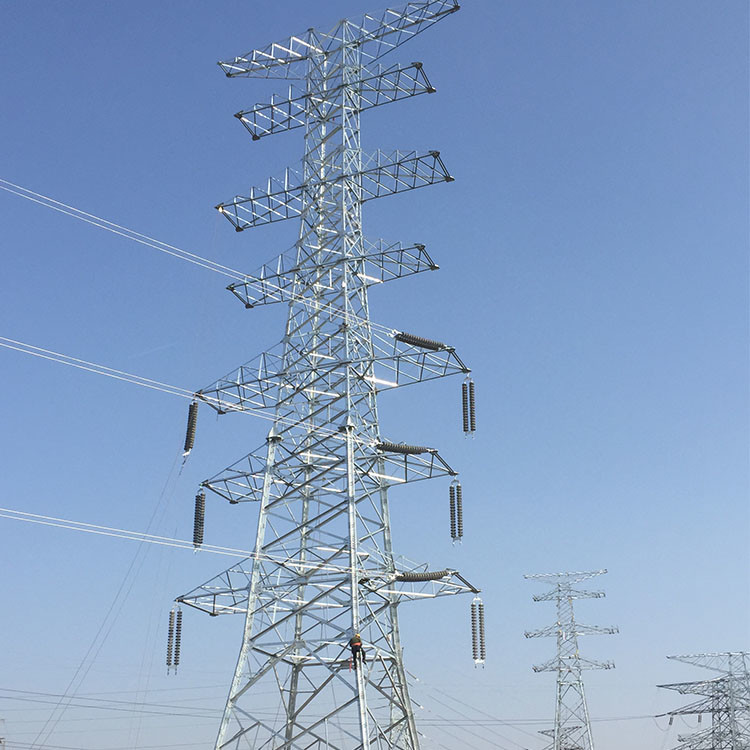

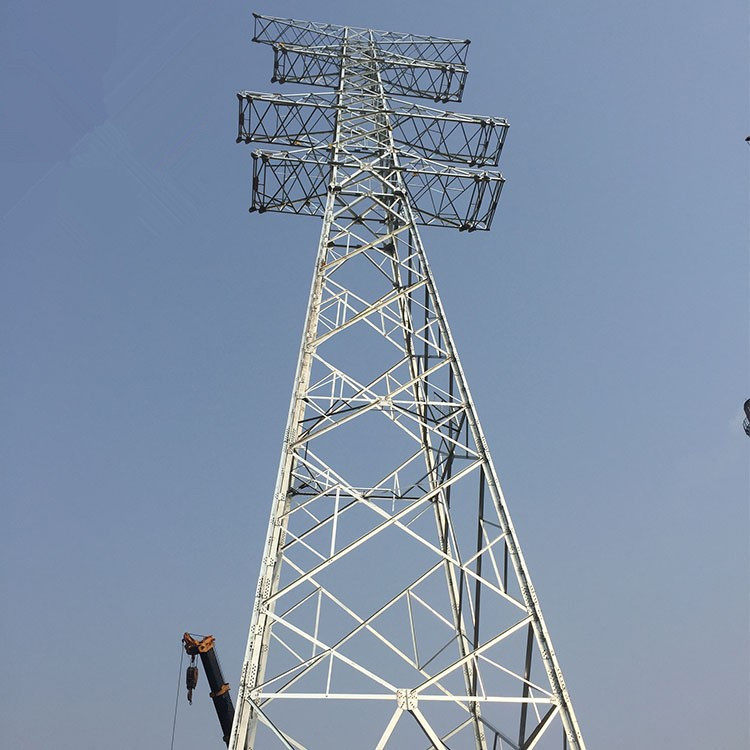

Hot Dip Galvanized Q345B Q235B Lattice Transmission Line Tower

Hot Dip Galvanized Q345B Q235B Lattice Transmission Line Tower

  • Hot Dip Galvanized Q345B Q235B Lattice Transmission Line Tower
  • Hot Dip Galvanized Q345B Q235B Lattice Transmission Line Tower
Hot Dip Galvanized Q345B Q235B Lattice Transmission Line Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Model Number: Lattice Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Certification: ISO Material Name: Galvanised Steel
Product: Electric Lattice Tower Application: Overhead Line
Wind Speed: 120KM/H Usage: Construction Site
High Light:

Q235B Transmission Line Tower

,

Q345B Transmission Line Tower

,

Hot Dip Galvanized Lattice Transmission Tower

Electric Power Steel Lattice Hot Dip Galvanized Transmission Line Tower



Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.



Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.

Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–30 kV, but normally carry only one or two conductors.

AC transmission towers may be converted to full or mixed Suntech use, to increase power transmission levels at a lower cost than building a new transmission line.



Material Q345B/A572,minimum yield strength >=345N/mm2

Q235B/A36,minimum yield strength>=235N/mm2
Standard ISO 9001
Height 5-200M
Appearance Hot Dip Galvanization and Color as customer's request
Working & Resting Platform Quantity 1~3 pcs
Antenna Support Quantity 3-18 PCS
Microwave Dish Quantity 3-18 PCS
Quality Standard ISO9001:2008
Welding Standard AWSD1.1
Galvanization Standard ASTM123
Available Height 5-80 m
Wind Speed 5-300 KM/H
Life Time More than 30 years



FAQ


1. Price Term? EXW, FOB, CFR or CIF.

Shipping seaport: shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. Payment?

Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Another payment way can be negotiated.


3. Delivery?

For towers, goods can be ready for shipment about 30~60 workdays after receiving the deposit.

4. How can I get a price of needed Tower?
A: Please give the exact dimensions such as tensile strength, height, thickness, material, top and bottom diameter. We can according to your specification give you a similar price.

B: You can send us a drawing; we can according to your drawing give you one price.

5. I am a small wholesaler, do you accept the small order?
It's no problem if you are a small wholesaler; we would like to grow up with you together.

6. I am a designer; Can you help me to produce the sample which we designed?
Our mission is to help customers to be successful. So it's welcome if we can help you solve the problem and make your design come true.


7. Can you make Door to Door service? Because I don't know how to do customs clearance.
Yes! We can make Door to Door service to help you save much time of shipping. Also, we have a big discount with shipping company because we have done much of this every day. So it will save your time also money.
