Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Power Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest prices |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000 Metric Ton/Metric Tons Per Year |
| Item Number: | Electric Power Tower | Surface: | Steel Galvanised |
|---|---|---|---|
| Advantage: | Excellent Galvanizing Technolog | Usage: | Electric Power Transmission |
| Application: | Power Construction Site | Life Time: | At Least 30 Years |
| High Light: | Double Loop Transmission Line Tower,33KV Angle Steel Transmission Line Tower,Angle Steel 33KV Tower |
||

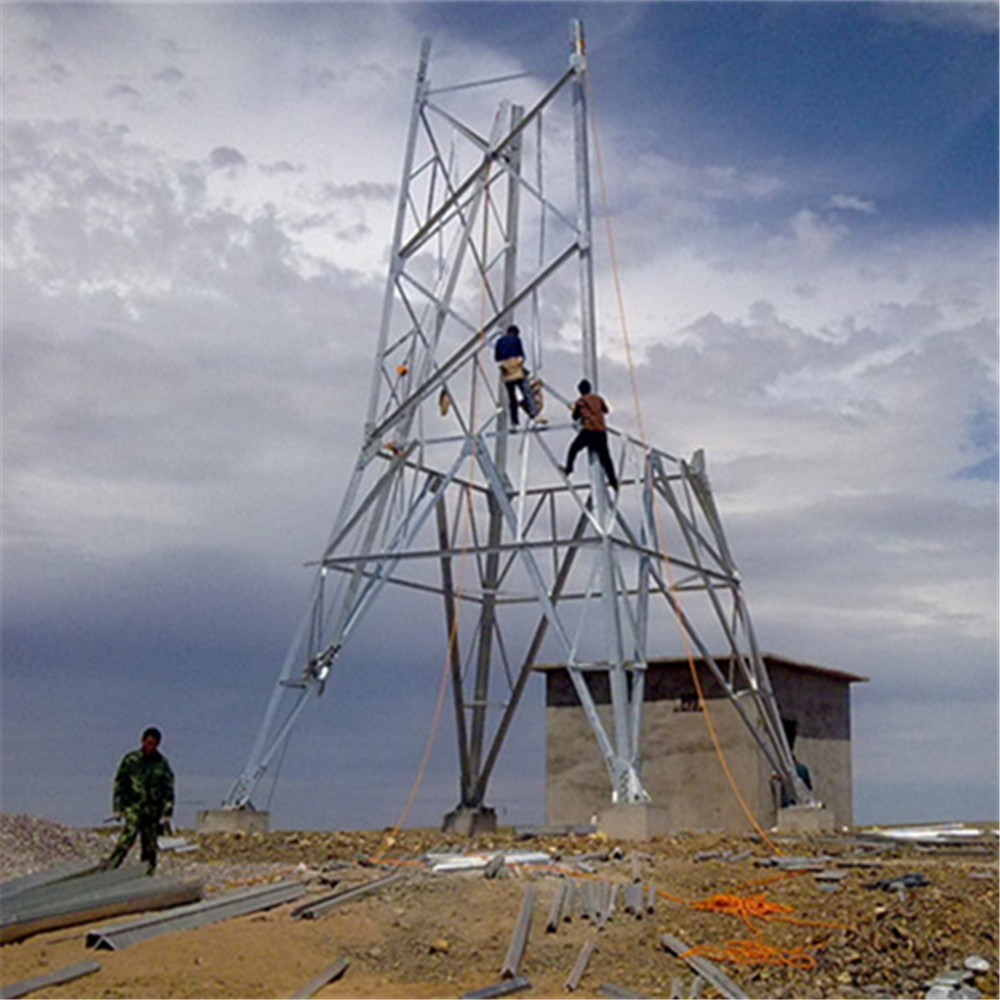

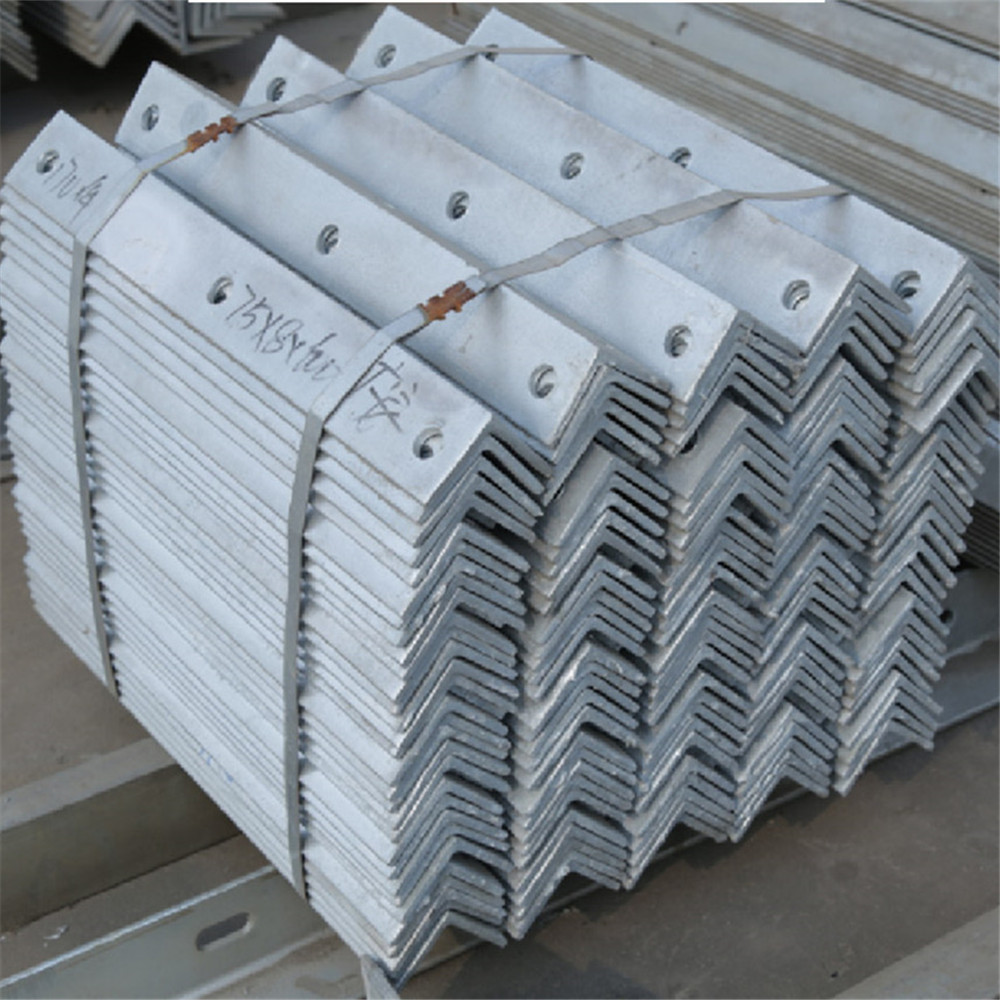

33KV Angle Steel Double Loop Transmission Line Electric Power Tower
Electrical Tension towers are used at locations where the angel of deviation is more than degree of 5. These towers are also known as angle towers and the tower are designed to take the tension load of the cable. Tension towers are mostly use for turning points and for the section isolate locations.
The piece of line from one angle tower to other angle tower is known as section and length of the section may vary and depend on the geographical location. All the towers in between the section is suspension towers. Suspension towers are lightweight and much economical compare to angle towers.
Tension tower can further divide in to two categories and these tower type are also can be categorized according to deviation angle in location of appropriate towers
Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.
| Product | Steel Structure Tower |
| Height | 5m to 30m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
| Q235B/A36,minimum yield strength>=235n/mm2 | |
| As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 | |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | -0.02 |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | |
| We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape | |
| Welding Standard : AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1mm to 30mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data. |
| Style | Size and styles are variable as per customer request |
Contact Person: Peter
Tel: 86-13958364836
