|Place of Origin:||China|
|Model Number:||Steel Tower|
|Minimum Order Quantity:||1 Tower|
|Packaging Details:||Exported Containers|
|Delivery Time:||30-35 days after deposit|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||70000 Metric Ton/Metric Tons Per Year|
|Material:||Steel||Name:||Electric Transmission Towers|
|Usage:||Construction Site||Application:||High And Low Voltage|
|Voltage:||10KV-1000KV||Life Time:||25-40 Years|

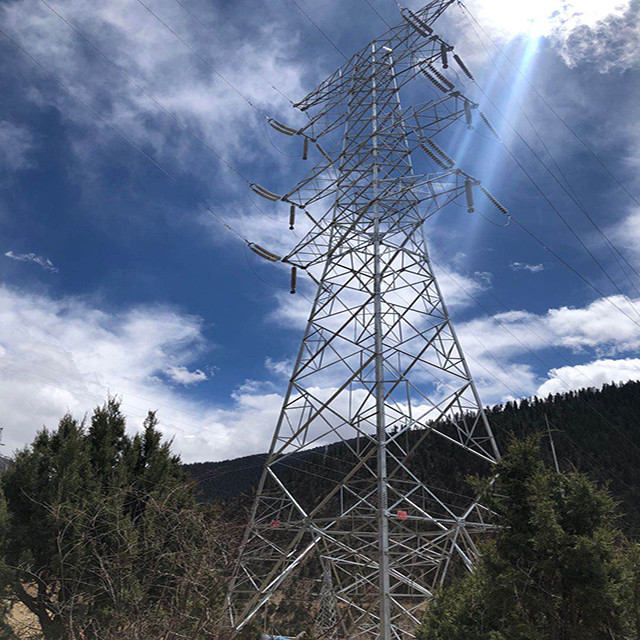

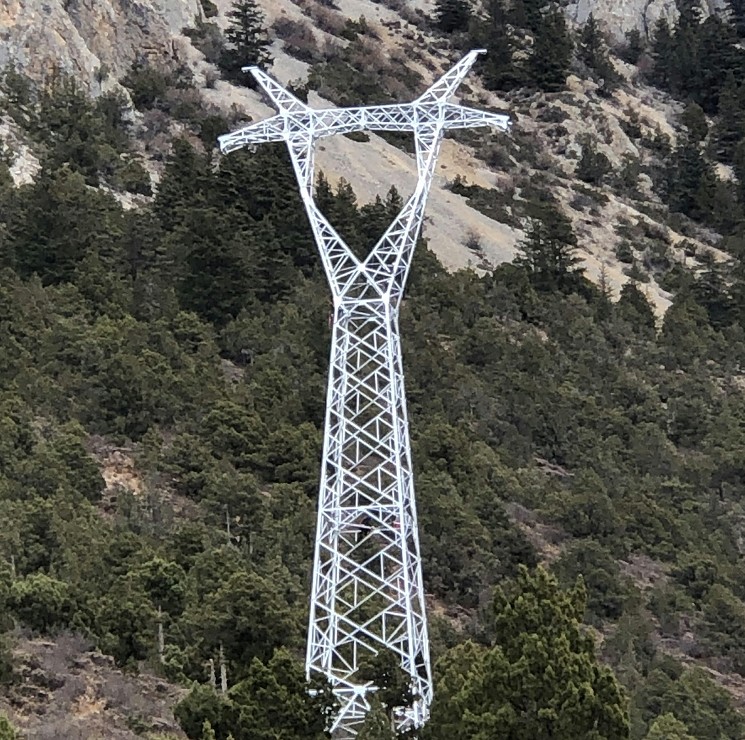

Galvanised Steel Electric Transmission Tower,
Construction Site Electric Transmission Tower,
Galvanised Steel Power Tower
Construction Site Quality Steel Galvansied Power Electric Transmission Towers
Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.
Each power transmission tower, depending on its type, size and shape, includes a series of varied parts, components and accessories; with detailed engineering calculations and in accordance with the customer orders and needs, using technology and Advanced software.
After precise investigation, control and final approval, plans are sent to production unit; where each piece, is cut, bend or/and punched by the very advanced CNC Machines, and then is galvanized to protect the steel from corrosion before passing the stages of packaging, storage, to be transferred to the installation site.
A type of a power transmission tower depends on various factors such as voltage (33kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).
The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing coating thickness depends on the weather conditions at the location of tower.
|Height||From 10M-100M or according to client’s requirement|
|Suit for||Electric Power Transmission and Distribution|
|Shape||Polygonal or Conical|
|Material||Normally Q235B/A36,Yeild Strength≥235MPa|
|As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400|
|Voltage level||10kV to 750kV|
|Tolerance of the dimension||According to client’s requirement|
|Surface treatment||Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement|
|Joint of Poles||Slip joint, flanged connected|
|Length of per section||Within 13M once forming|
|Welding Standard||AWS(American Welding Society)D 1.1|
|Production Process||Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages|
|Packages||Packing with plastic paper or according to client’s requirement|
|Life Period||More than 30 years, it is according to installing environment|
