Home /Products/Bare Aluminum Conductor/110kV 132kV Angular Steel Lattice Overhead Line Tower

110kV 132kV Angular Steel Lattice Overhead Line Tower

1 Tower
MOQ
Negotiation
Price
110kV 132kV Angular Steel Lattice Overhead Line Tower
Features Gallery Product Description Request A Quote
Features
Specifications
Material Grade: Steel Q245/Q345
Name: Transmission Power Tower
Usage: Transmission Line
Application: High Voltage
Voltage Grade: 33kV-330kV
Lifetime: More Than 30 Years
Highlight:

Angular Steel Lattice Pylon

,

132kV Overhead Line Tower

,

110kV Overhead Line Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Electric Tower
Payment & Shipping Terms
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 70000 Metric Ton/Metric Tons Per Year
Product Description

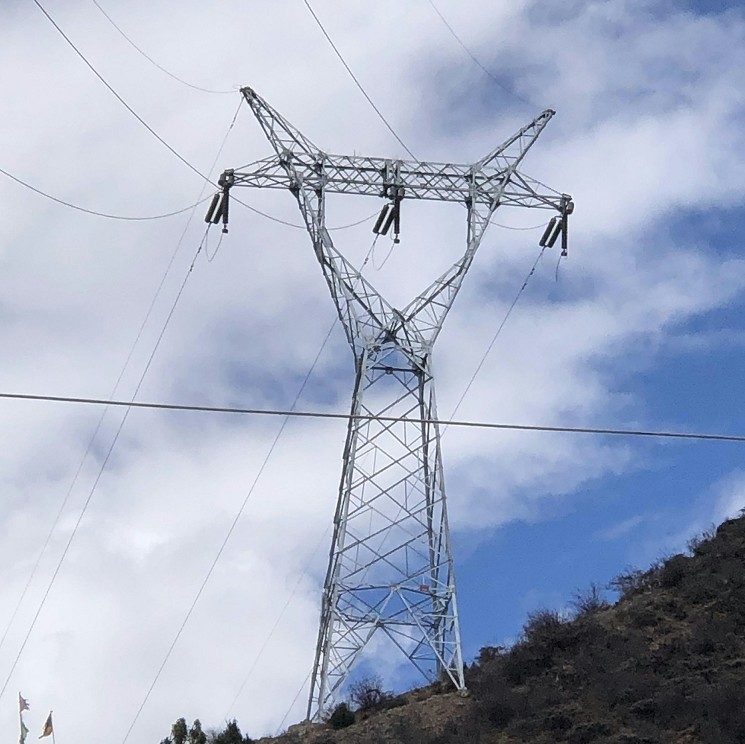

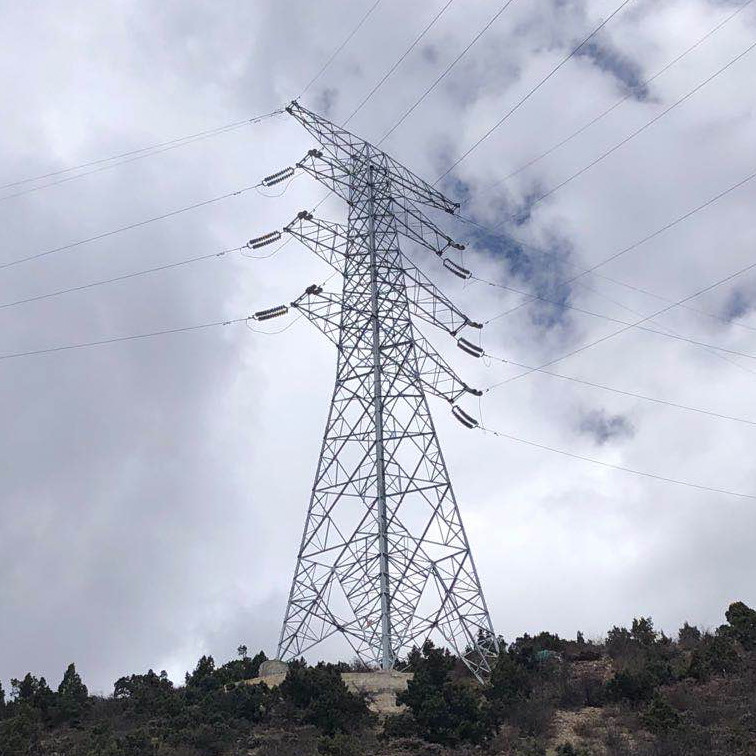

110kV/132kV Overhead Line Electric Angular Steel Tower Lattice Transmission Power Tower



We are leading Chinese Tower manufacturer which have 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 20 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.



Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.



Tower type Transmission power
tower application electric power line transmission and distribution
related towers telecommunication steel tower, steel turbular pole
raw material angle steel
coating hot dip galvanized
process punching holes, slipping and flanged connection
Height From 10M-100M or according to client’s requirement
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material Normally Q235B/A36,Yeild Strength≥235MPa
  Q345B/A572,Yeild Strength≥345MPa
  As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Voltage level 10kV to 750kV
Tolerance of the dimension According to client’s requirement
Surface treatment Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles Slip joint, flanged connected
Standard ISO9001:2015
Length of per section Within 13M once forming
Welding Standard AWS(American Welding Society)D 1.1
Production Process Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages Packing with plastic paper or according to client’s requirement
Life Period More than 30 years, it is according to installing environment



110kV 132kV Angular Steel Lattice Overhead Line Tower 0
