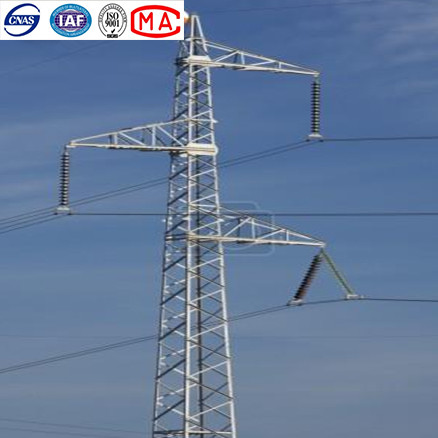

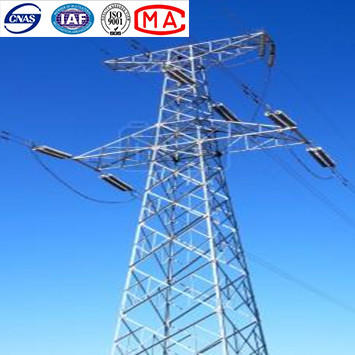

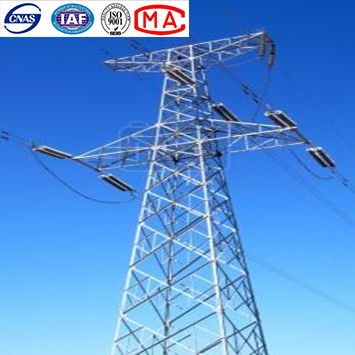

10 - 500kv HDG Angle Steel Tower For Transmission Line

1 Tower
MOQ
Get The Newest Price
Price
10 - 500kv HDG Angle Steel Tower For Transmission Line
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Electric Transmission Power
Material: Q235B & Q355B
Standard: China Standard Or As Customer's Request
Treatment: Hot Dip Galvanized
Power Capacity: 10-500kV
Warranty Period: 30 Years
Highlight:

HDG Angle Steel Tower

,

500kv Angle Steel Tower

,

HDG Angle Steel Transmission Line Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Transmission Electric Tower
Payment & Shipping Terms
Packaging Details: Exported Containers
Delivery Time: 35-40 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 Metric Ton/Metric Tons Per Year
Product Description

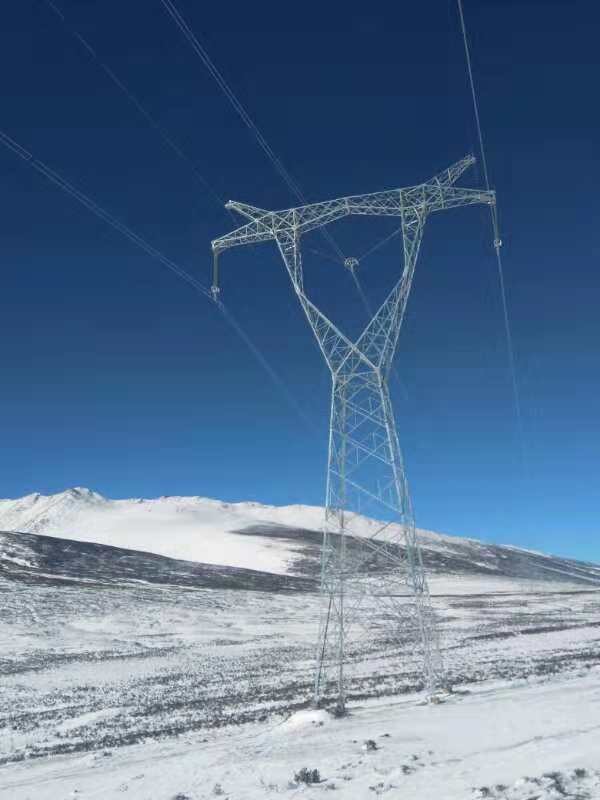

Angle Iron Tower For Electric Power Transmission Line



Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components,transmission tower and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.



10 - 500kv HDG Angle Steel Tower For Transmission Line 0


No.

 Description
Detailed Specification and Major design Parameters
1
Design Code
1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete
2
Design Software
PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3
Design Loading
As per requirement and specification by Clients worldwide.
4
Load test/destructive test
We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower
pricing.
5
Voltage
33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6
Hot-dip galvanization
ISO 1461-2009, ASTM A123
7
Steel Grade
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
8
Bolts and Nuts
Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9
Tower Type
Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10
Tower Type
Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11
Warranty
Tower structures: 10 years
12
Return Period
50 Years
13
Transportation
We are very close to the biggest port in the world which is our advantage for sea transportation.
14
Quality Control
Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment
inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.
