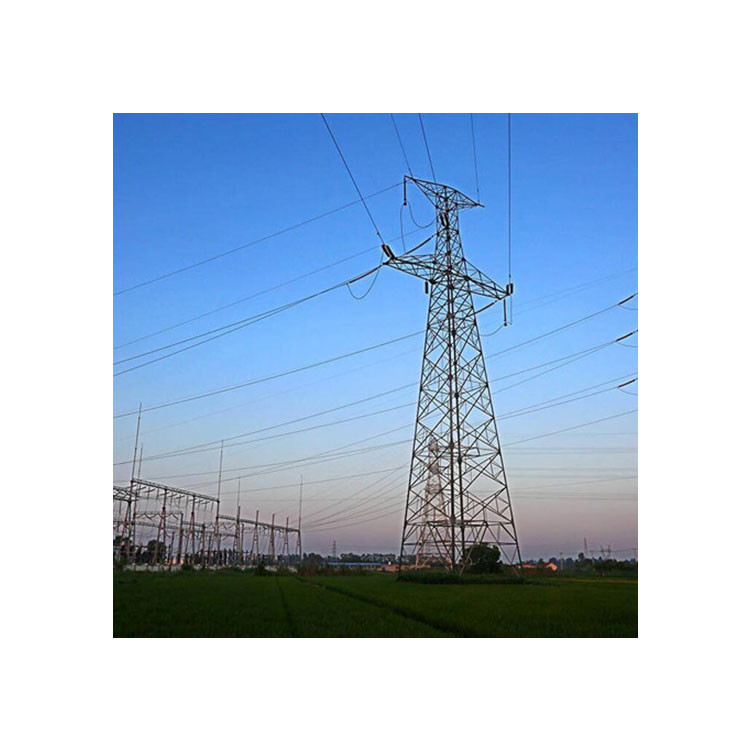

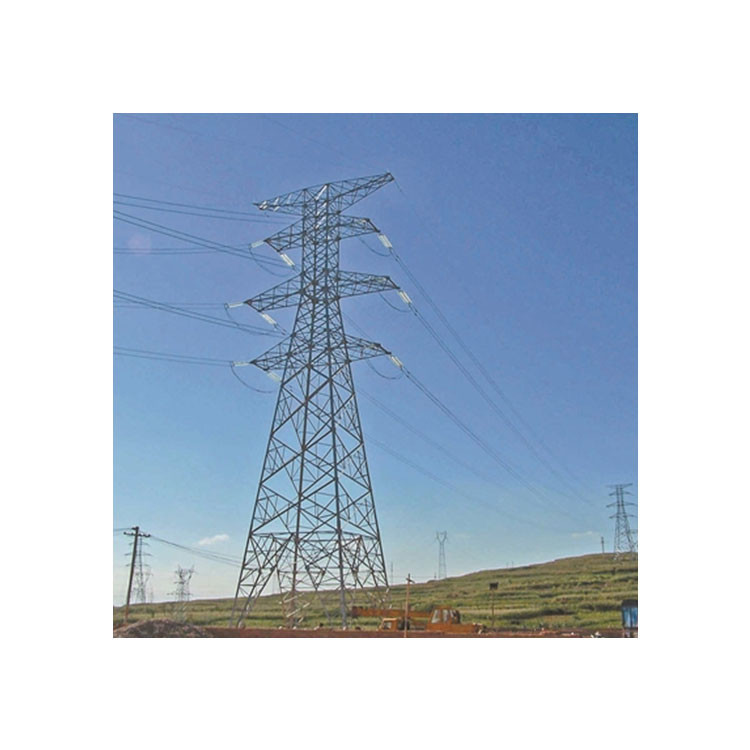

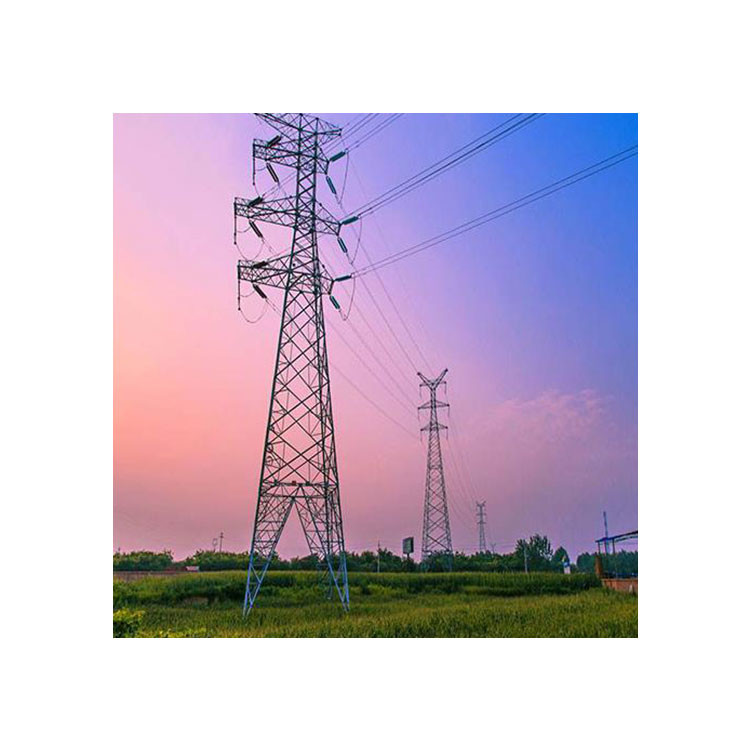

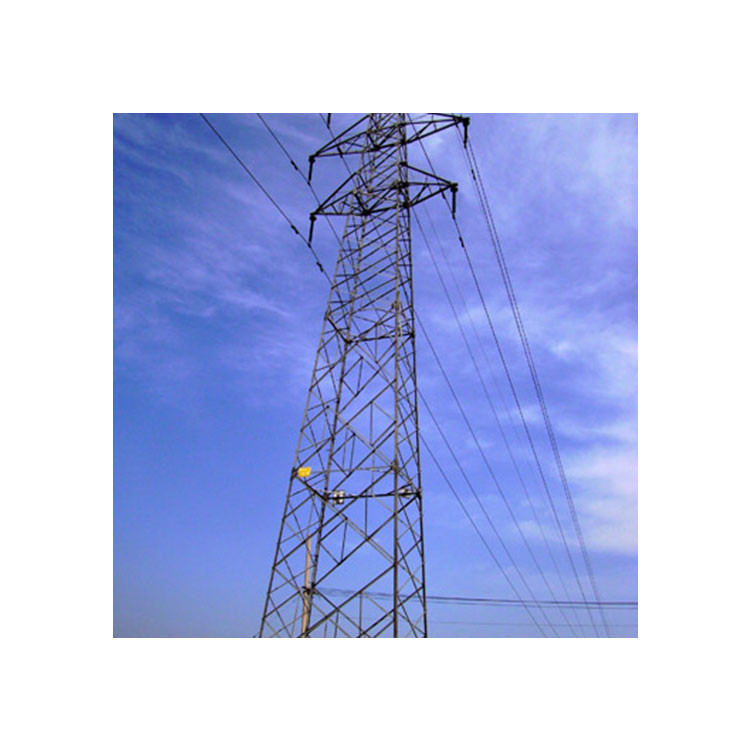

Angle Steel 10kV To 750kV Power Transmission Tower

Angle Steel 10kV To 750kV Power Transmission Tower

  • Angle Steel 10kV To 750kV Power Transmission Tower
  • Angle Steel 10kV To 750kV Power Transmission Tower
  • Angle Steel 10kV To 750kV Power Transmission Tower
  • Angle Steel 10kV To 750kV Power Transmission Tower
Angle Steel 10kV To 750kV Power Transmission Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Electric Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get The Newest Price
Packaging Details: Exported Containers
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Transmission Electric Power Material: Steel
Height: From 10M-100M Or According To Client's Requirement Voltage Level: 10kV To 750kV
Connection: Flanged Connected, Splice Way Application: Electric Power Transmission And Distribution
High Light:

750kV Power Transmission Tower

,

10kV Power Transmission Tower

,

Angle Steel Transmission Line Tower



Pole Power Transmission Line Angle Tower 10kV to 750kV Electrical Equipments



We are leading Chinese Tower manufacturer which have 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 20 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.

Height
From 10M-100M or according to client’s requirement
Suit for
Electric Power Transmission and Distribution
Shape
Polygonal or Conical
Material
Normally Q235B/A36,Yeild Strength≥235MPa

Q345B/A572,Yeild Strength≥345MPa

As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Voltage level
10kV to 750kV
Tolerance of the dimension
According to client’s requirement
Surface treatment
Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles
Slip joint, flanged connected
Standard
ISO9001:2015
Length of per section
Within 13M once forming
Welding Standard
AWS(American Welding Society)D 1.1
Production Process
Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages
Packing with plastic paper or according to client’s requirement
Life Period
More than 30 years, it is according to installing environment



Our company's design, production and testing equipment is advanced and perfect. Computer and software aided design have been widely used in the design: NSA finite element design system of Beijing Daoheng steel pipe pole is adopted in the design of steel pipe pole, and the full stress analysis program of steel tower is adopted in the design of iron tower, which ensures the accuracy of internal force analysis and the rationality of structure, and is in line with the design results of the design institute. In the aspect of drawing and lofting, our company has introduced three-dimensional entity lofting software (TMA, LMA), which connects the computer three-dimensional lofting software with the production line, which can make lofting and production synchronous, reduce intermediate links, improve the dimensional accuracy of products, and ensure the smooth installation of iron tower. In production, there are advanced CNC angle steel and plate automatic processing production line, CNC plasma automatic cutting machine, submerged arc automatic welding machine, gas shielded welding machine, various manual welding machines and other cold working equipment, such as crank press (punch), plate shearing machine, automatic gas cutting machine, hydraulic shaping machine, drilling machine, lathe, planer, sawing machine, super 80 drilling machine, etc Large gantry crane, a total of more than 80 sets. There are 600kN universal testing machine, five metal chemical elements automatic analyzer, spectroscope, impact testing machine, low temperature tank, bolt test mold, ultrasonic thickness gauge, metal coating thickness gauge, ultrasonic flaw detector and other advanced testing equipment.
