660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley

660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley

  • 660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley
  • 660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley
660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Stringing Block 660mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exported Box and Containers
Delivery Time: 10-15 days after Payment
Payment Terms: L/C , T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Name: Conductor Stringing Block Diameter Of Wheels: 660
Number: 1,3,5,7 Material: MC Nylon Sheave And Steel Support
Application: Power Transmission Usage: Construction Works
High Light:

SF6 3 Phase Circuit Breaker

,

Pneumatic Arc Extinguishing Chamber Circuit Breaker

,

SF6 Three Phase Circuit Breaker

660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley



Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures.Compression sleeves, swivel connectors, and

pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm

aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.



Single sheave Nylon Stringing Block

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10191 SHDN-120x30 25-70 5 1.5 Nylon
10192 SHDN-160x40 70-95 10 2.4
10193 SHDN-200x40 95-120 15 2.6
10194 SHDN-200x60 120-150 15 3.1
10195 SHDN-250x40 120-150 20 3.7
10196 SHDN-250x60 150-180 20 3.9
10197 SHDN-270x60 180-240 20 4.4
10198 SHDN-320x60 240-300 20 7.5
10199 SHDN-400x80 300-400 20 8
10104 SHDN508 300-400 20 16 Nylon, optional can be lined with neoprene
10124 SHDN660 400-500 20 24
10131 SHDN750 500-600 30 32
10141 SHDN822 600-700 30 38
10151 SHDN916 700-800 50 51
10165 SHDN1040 800-900 50 60

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,

swivel connectors, and pulling rope connectors can pass through the groove



Overhead Transmission Line Large Diameter Stringing Blocks

Item No. Model No. of Sheaves Rated Load (KN)

Diameter of Groove /

Conductor Size

Weight (kg) Material Outer Dia. / width Of Sheave
10101 SHD-508x75 1 20 Φ408mm / ≤ACSR400 mm² 22.5 Aluminum

Φ508mm / 75mm



10102 SHS-508x75 3 40 86 Central sheave steel
10103 SHW-508x75 5 60 108
10104 SHDN-508x75 1 20 18.5 Nylon
10105 SHSLN-508x75 3 40 51.5 Central sheave Nylon
10106 SHWLN-508x75 5 60 91.5
10107 SHSQN-508x75 3 40 60 Nylon
10108 SHWQN-508x75 5 60 75
10121 SHD-660x100 1 20 Φ560mm / ACSR400 - 500 mm² 30 Aluminum

Φ830mm / 110mm



10122 SHS-660x100 3 40 106 Central sheave steel
10123 SHW-660x100 5 60 136
10124 SHDN-660x100 1 20 20 Nylon
10125 SHSN-660x100 3 40 92 Central sheave Nylon
10126 SHWN-660x100 5 60 120
10127 SHSQN-660x100 3 40 85 Nylon
10128 SHWQN-660x100 5 60 100
10141 SHDN-822x110 1 30 Φ710mm / ACSR500 - 630 mm² 25 Nylon

Φ916mm / 110mm



10142 SHSQN-822x110 3 60 130 Central sheave Nylon
10143 SHWQN-822x110 5 90 180
10144 SHSQN-822x110 3 60 100 Nylon
10145 SHWQN-822x110 5 90 130
10151 SHDN-916x110 1 50 Φ800mm / ACSR720 - 800 mm² 45 Nylon
10152 SHSQN-916x110 3 80 140
10153 SHWQN-916x110 5 150 235

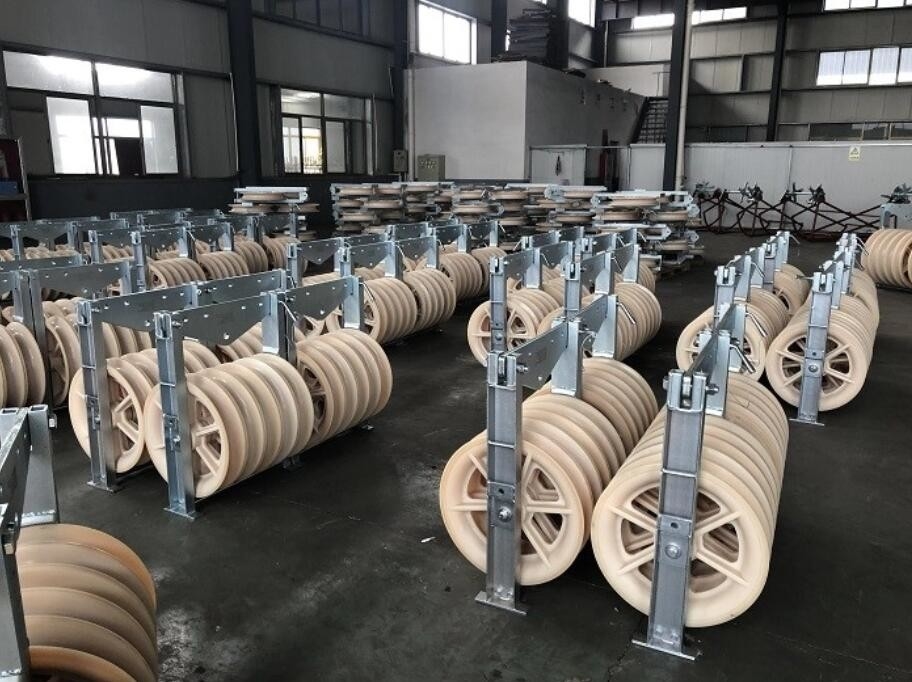

660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley 0



660mm MC Nylon Overhead Line Cable Conductor Stringing Blocks Pulley 1
