Heavy-Duty Bend Board With Reinforced Nylon Construction​

1 PCS
MOQ
Negotiation
Price
Heavy-Duty Bend Board With Reinforced Nylon Construction​
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Protective Bend Board
Item No.: 21321-21326
Model: GKB100A
Tube Diameter: 100-150mm
Curvature Diameter: R400-R450
Weight: 3.2-6KG
Highlight:

Q345B Telecom Antenna Tower

,

Telecom Antenna Tower 100m

,

Hot Dip Galvanized Q345B Telecom Mast

Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: GKB
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 3000 PCS/Month
Product Description

Heavy-Duty Bend Board With Reinforced Nylon Construction​

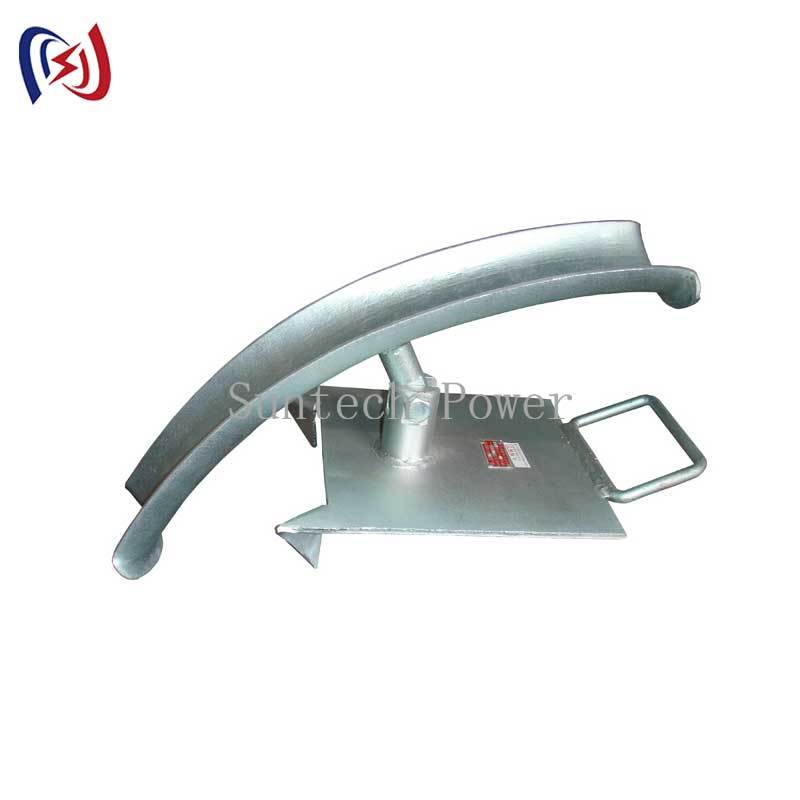

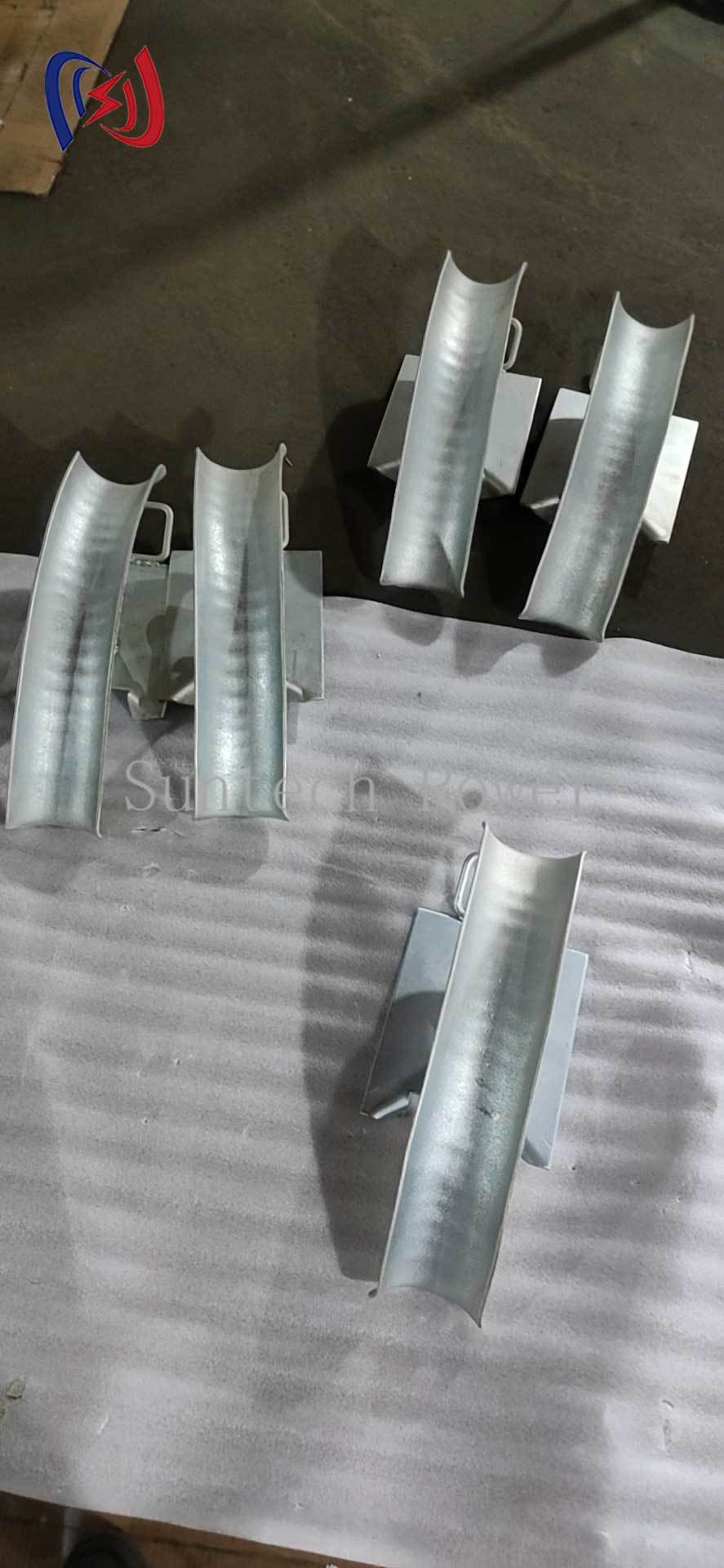

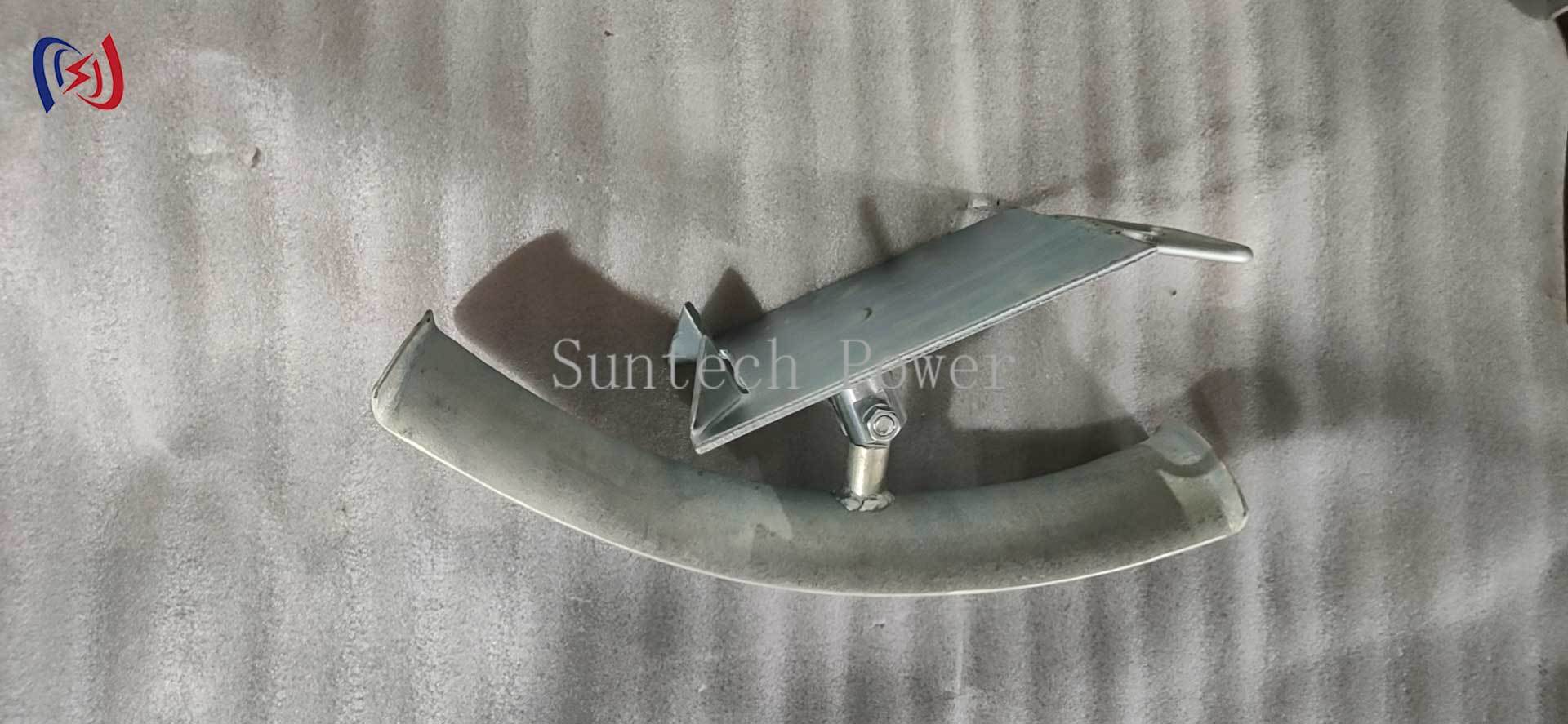

The ​​Cable Protective Bend Board​​ is an essential component in underground cable installation systems, designed to safeguard cables during directional changes in conduits and ducts. This professional-grade equipment ensures proper cable bending radius protection while preventing abrasion and damage during pulling operations in challenging underground environments.


​​Construction & Design Features:​

  • ​​Board Material:​​ High-density polyethylene or fiber-reinforced nylon
  • ​​Bend Radius:​​ Multiple standard sizes from 6" to 24" (150mm to 600mm)
  • ​​Surface Finish:​​ Smooth, low-friction coating to reduce cable wear
  • ​​Mounting System:​​ Pre-drilled holes for secure installation
  • ​​Load Capacity:​​ Rated for cable pulling tensions up to 3 tons (2.7 metric tons)
  • ​​Safety Features:​​ Rounded edges and cable retention lips
  • ​​Environmental Resistance:​​ UV-stabilized and chemical-resistant materials


​​Performance Advantages:​

  • ​​Cable Protection:​​ Maintains minimum bending radius requirements
  • ​​Reduced Friction:​​ Smooth surface minimizes pulling resistance
  • ​​Easy Installation:​​ Lightweight design for quick deployment
  • ​​Durable Construction:​​ Withstands underground environmental stresses
  • ​​Versatile Application:​​ Suitable for power and communication cables
  • ​​Maintenance-Free:​​ No lubrication or adjustment required
  • ​​Safety Compliance:​​ Meets industry standards for cable installation


​​Professional Applications:​

  1. ​​Underground power cable installations​​
  2. ​​Telecommunication duct work​​
  3. ​​Substation cable entry points​​
  4. ​​Tunnel and bridge cable routing​​
  5. ​​Industrial plant underground wiring​​
  6. ​​Urban infrastructure upgrades​​
  7. ​​Emergency cable replacement projects​​

​​

Available Configurations:​

  • ​​Standard Single-Channel:​​ Basic cable protection
  • ​​Multi-Channel:​​ For parallel cable runs
  • ​​High-Temperature:​​ For industrial applications
  • ​​Corner-Specific:​​ Pre-formed for common angles
  • ​​Heavy-Duty:​​ For large diameter cables
  • ​​Custom Designs:​​ Special radius requirements


​​Why Choose Our Cable Protective Bend Board:​

  • ​​Manufactured to IEEE and ANSI standards​​
  • ​​Used by utility professionals worldwide​​
  • ​​Interchangeable with major brand systems​​
  • ​​Competitive pricing with quality assurance​​
  • ​​Technical support from installation experts​

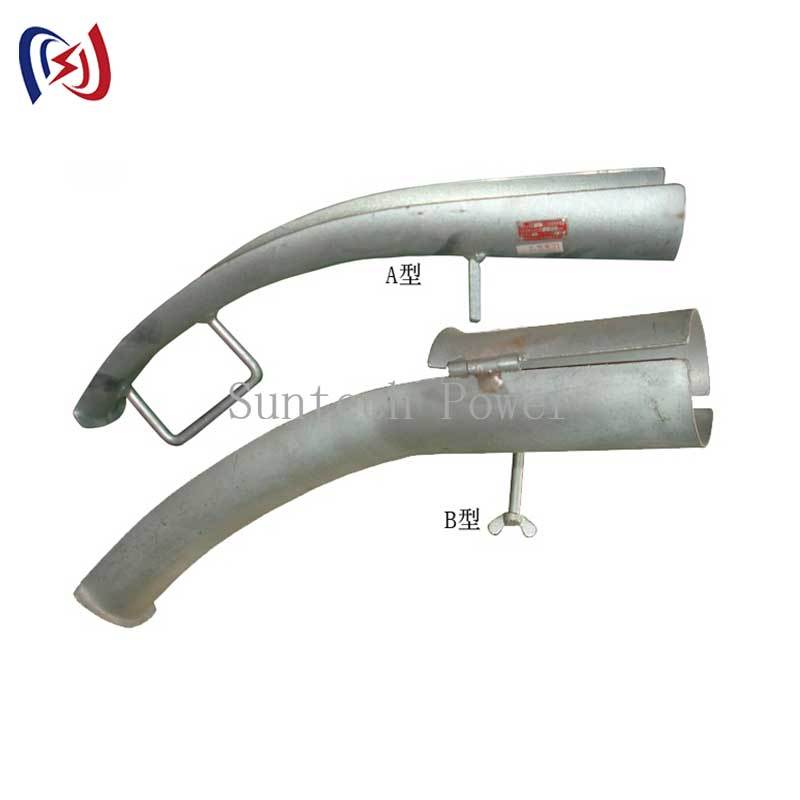

Item number Model Tube Diameter(MM) Curvature diameter(mm) Weight (kg)
21321 GKB100A Φ 100 R 400 3.2
21322 GKB130A Φ 130 R 450 5.2
21322A GKB150A Φ 150 R 450 5.9
21325 GKB100B Φ 100 R 450 3.4
21326 GKB130B Φ 130 R 450 6
