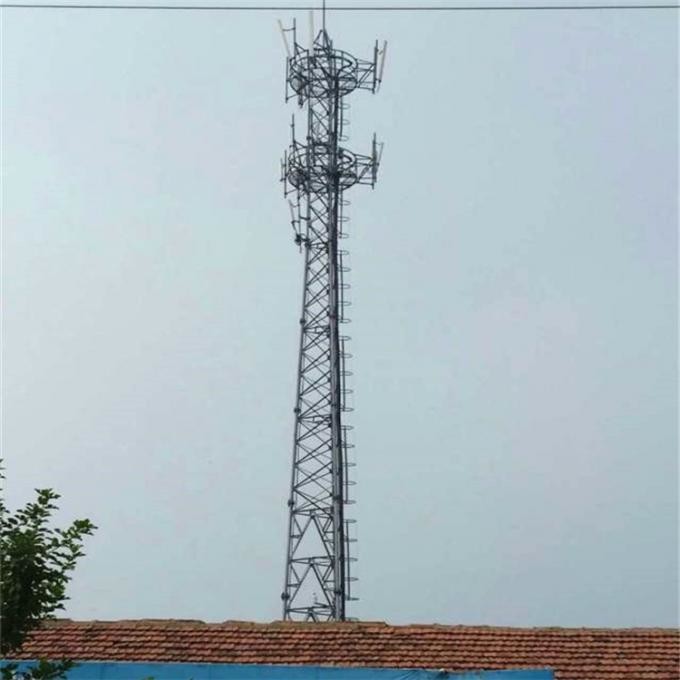

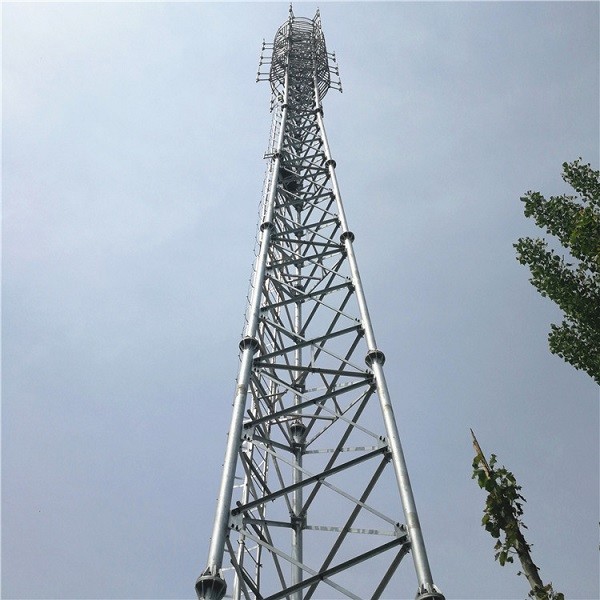

HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower

HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower

  • HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower
  • HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower
HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Antenna Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest prices
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Telecom Antenna Tower Material: Steel Q235B/Q345B/Q420
Application: Telecommunication Steel Tower Usage: Telecom Tower
Surface Treatment: Hot Dip Galvanised Wind Speed: 120KM/H
High Light:

HDG 4 Legged Telecom Antenna Tower

,

HDG 3 Legged Telecom Antenna Tower

,

HDG Telecom Tubular Steel Tower

Hot Dip Galvanized 3 Or 4 Legs Tubular Steel Tower Telecom Antenna Tower



Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.



Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.



Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.



Height From 10M-100M or according to client’s requirement
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material Normally Q235B/A36,Yeild Strength≥235MPa
Q345B/A572,Yeild Strength≥345MPa
As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity 10kV to 500kV
Tolerance of the dimension According to client’s requirement
Surface treatment Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles Slip joint, flanged connected
Standard ISO9001:2008
Length of per section Within 13M once forming
Welding Standard AWS(American Welding Society)D 1.1
Production Process Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages Packing with plastic paper or according to client’s requirement
Life Period More than 30 years



HDG 3 / 4 Legged Tubular Steel Telecom Antenna Tower 0
