Dual-Mode Stringing Block With Convertible Sitting/Hanging Design​
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Sitting And Hanging Type Dual-Use Stringing Block
Item No.: 10261-10274
Model: SHG-0.5-SHGN-2
Rated Load: 5-20KN
Sheave Size: 80x50mm
Weight: 2.1-3.6KG
Remark: Aluminum Sheave/ Nylon Sheave
Warranty: 1 Year
Highlight:

Angle Steel Telecom Tower

,

Lattice Tubular Telecom Tower

,

ASTM A123 Galvanized Steel Tubular Tower

Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SHG
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7Days
Payment Terms: L/C,T/T
Supply Ability: 6000 PCS/Month
Product Description

Dual-Mode Stringing Block With Convertible Sitting/Hanging Design​


The ​​Sitting and Hanging Type Dual-Use Stringing Block​​ represents a breakthrough in conductor installation technology, offering unprecedented flexibility for power line construction and maintenance. This innovative tool combines two essential installation methods in one robust unit, significantly improving efficiency in various working conditions.


​​Revolutionary Design Features:​

  • ​​Dual-Position Mechanism:​​ Patented convertible design for instant switching between sitting and hanging modes
  • ​​Multi-Axis Rotation:​​ 360° swivel capability in both configurations
  • ​​Structural Integrity:​​ High-grade alloy steel construction with fatigue-resistant welds
  • ​​Load Distribution System:​​ Balanced weight transfer in both operational modes
  • ​​Universal Mounting:​​ Compatible with all standard tower structures and crossarms
  • ​​Sheave Technology:​​ Double-sealed bearings with temperature-resistant lubrication
  • ​​Safety Interlock:​​ Automatic position locking when under load


​​Performance Advantages:​​

  • ​​Unmatched Versatility:​​ Handles both ground-level and elevated installations
  • ​​Time Savings:​​ Eliminates tool changes between different installation phases
  • ​​Reduced Equipment Costs:​​ Combines two tools into one investment
  • ​​Improved Safety:​​ Stable in both positions with positive locking
  • ​​Wide Application Range:​​ Suitable for conductors from 6mm to 50mm diameter
  • ​​Ergonomic Benefits:​​ Reduces worker fatigue during mode transitions


​​Professional Applications:​

  1. ​​New transmission line construction​​
  2. ​​Urban distribution network upgrades​​
  3. ​​Tower-to-tower conductor installation​​
  4. ​​Substation bus installation​​
  5. ​​Emergency restoration projects​​
  6. ​​Railway electrification work​​
  7. ​​Renewable energy farm connections​​


​​Available Configurations:​

  • ​​Standard Duty:​​ For general construction applications
  • ​​Heavy Capacity:​​ For large diameter conductors
  • ​​Insulated Version:​​ Rated for live-line work
  • ​​Corrosion-Resistant:​​ Marine-grade materials
  • ​​Custom Designs:​​ Special conductor requirements


​​Why Choose Our Dual-Use Stringing Block:​

  • ​​Field-Proven Innovation:​​ Successfully deployed in major utility projects
  • ​​Cost Efficiency:​​ Reduces equipment inventory needs
  • ​​Simplified Training:​​ One tool for multiple applications
  • ​​Maintenance Friendly:​​ Easy-access service points
  • ​​Future-Ready:​​ Adaptable to emerging conductor technologies


Item number Model Outside diameter ×width (mm) Rated load (kN) Weight (kg) Remark

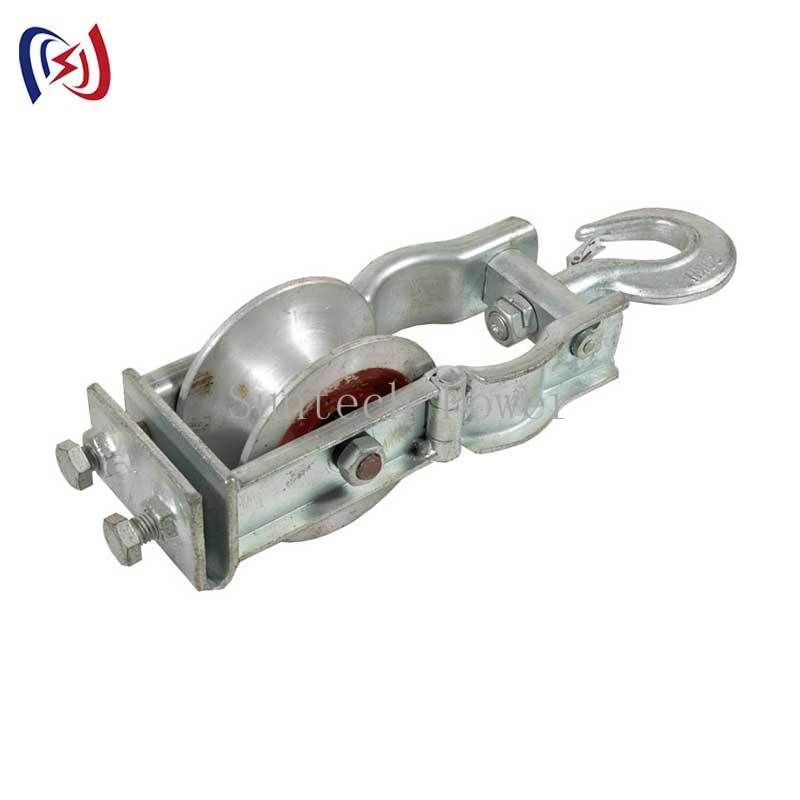

10261 SHC-80×50 Φ80×50 5 1.9 Aluminum sheave
10262 SHC-120×30 Φ120×30 5 2.1
10263 SHC-160×40 Φ160×40 10 2.5
10264 SHC-120×58 Φ120×58 20 3.5

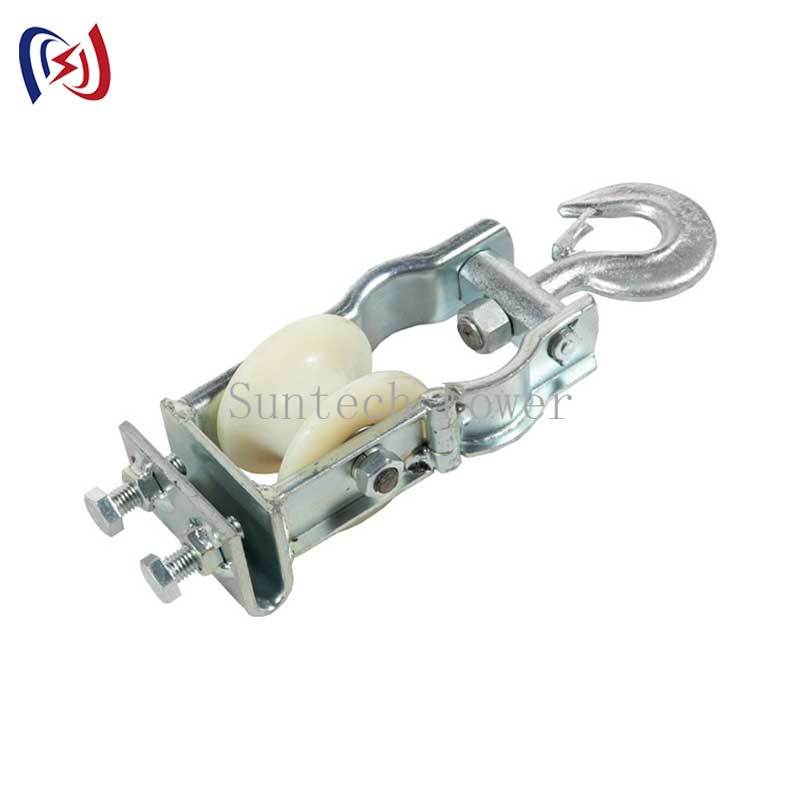

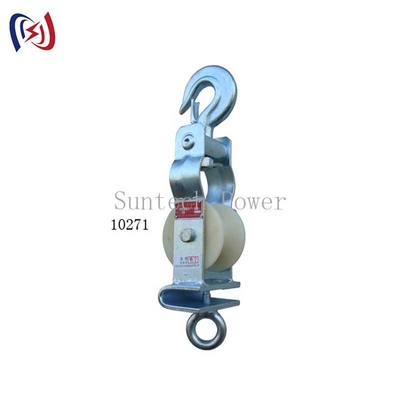

10271 SHCN-80×50 Φ80×50 5 1.4 Nylon sheave
10272 SHCN-120×30 Φ120×30 5 1.6
10273 SHCN-160×40 Φ160×40 10 2
10274 SHCN-120×58 Φ120×58 20 2.5
