Lightweight Aluminum Alloy Hoisting Tackle With Nylon Sheave For Rigging​ logo

Lightweight Aluminum Alloy Hoisting Tackle With Nylon Sheave For Rigging​

1 PCS
MOQ
Negotiation
Price
Lightweight Aluminum Alloy Hoisting Tackle With Nylon Sheave For Rigging​
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hoisting Tackle Aluminum Alloy Plate With Nylon Sheave
Item No.: 11101-11153
Model: QHN1x1-QHN10x1
Sheave: 1/2/3
Rated Load: 10-100KN
Max.Rope: 7.7-20mm
Weight: 1.8-13.2KG
Warranty: 1 Year
Highlight:

100m telecom steel tower

,

4 leg telecom steel tower

,

100m angle steel tower

Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: QHN1x1
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 5000 PCS/Month
Product Description

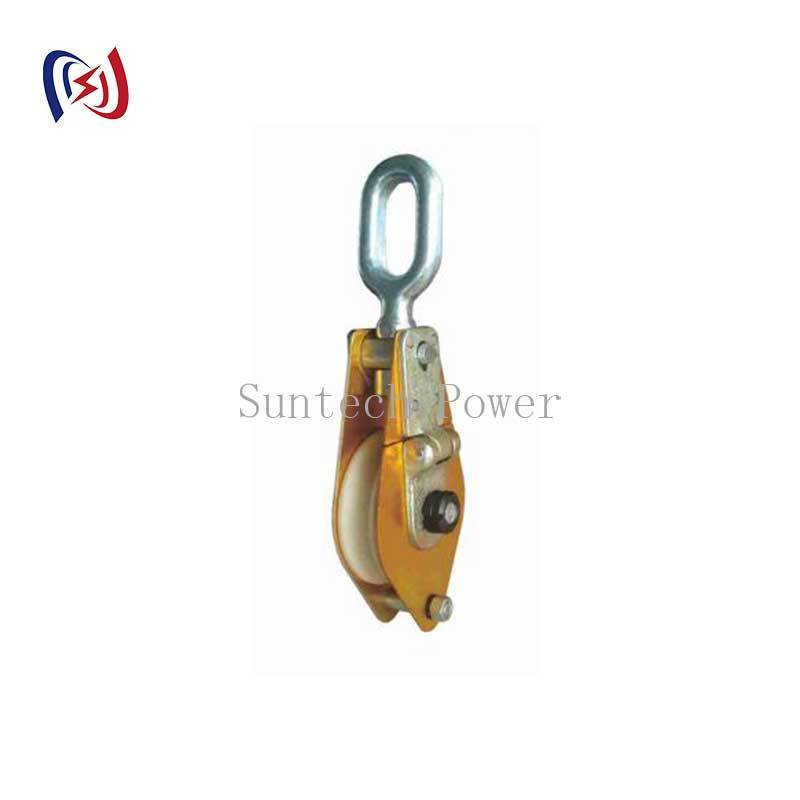

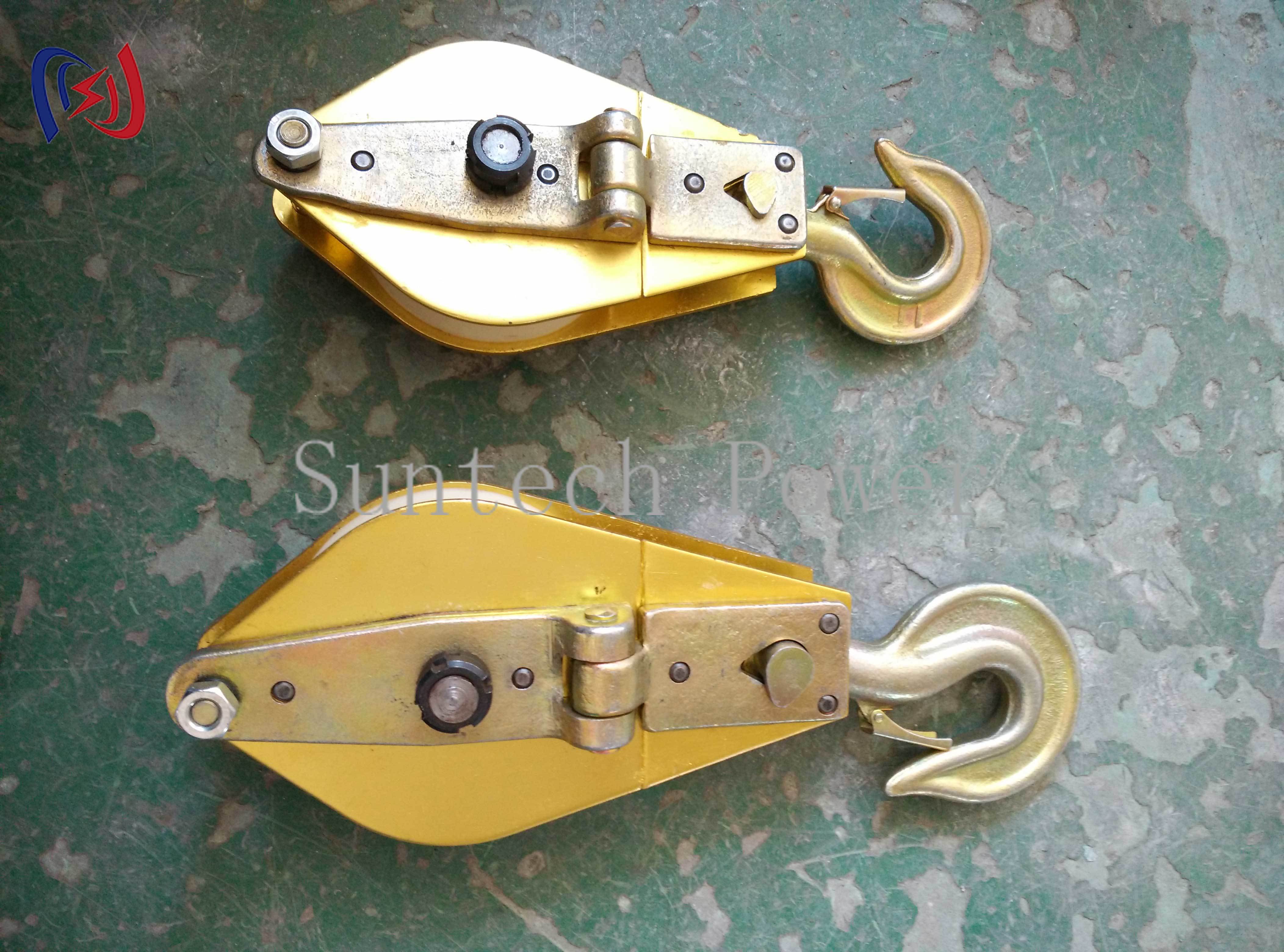

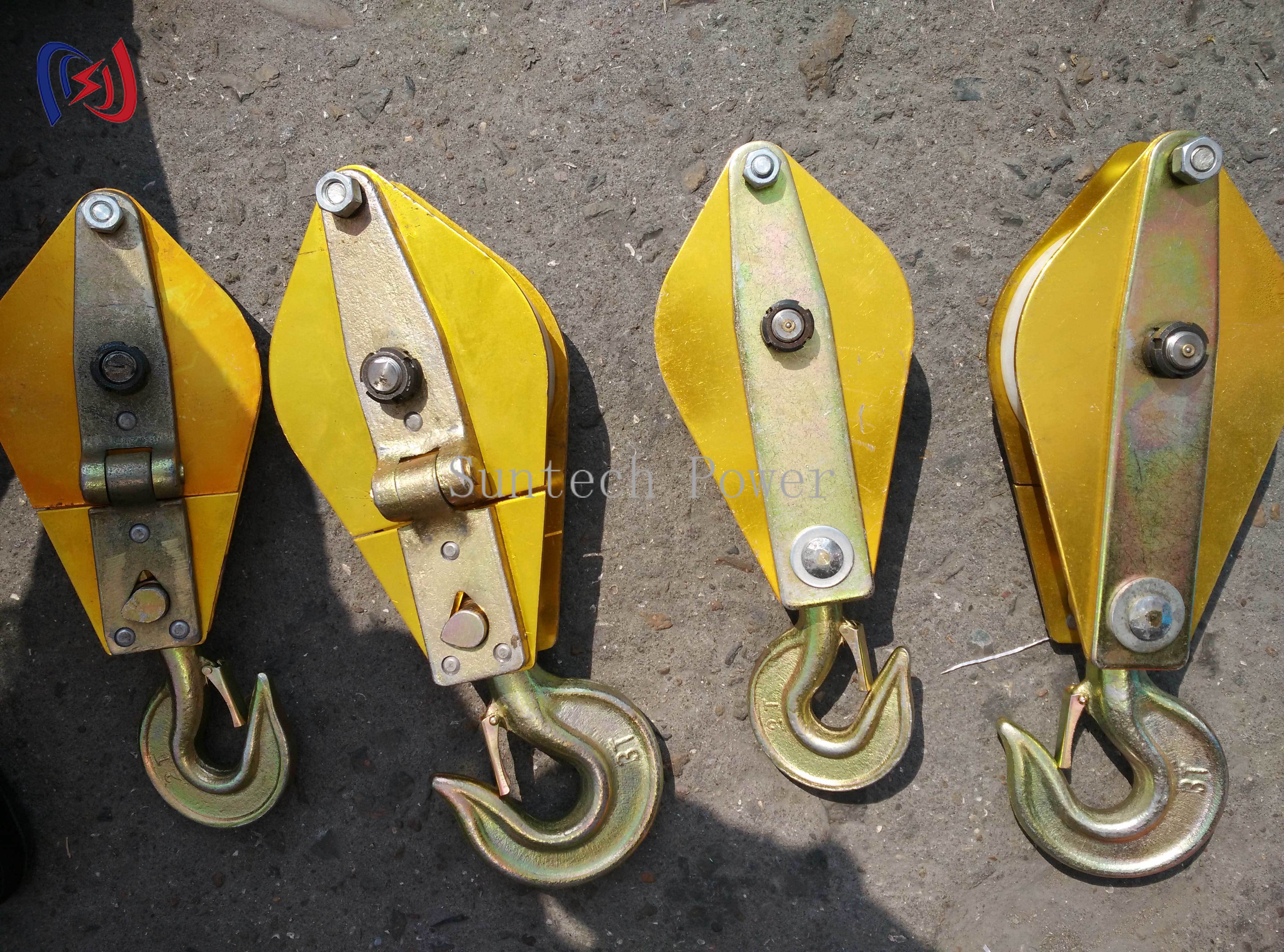

Lightweight Aluminum Alloy Hoisting Tackle With Nylon Sheave For Rigging​


The ​​Hoisting Tackle Aluminum Alloy Plate with Nylon Sheave​​ is an advanced lifting solution that combines the strength of aluminum alloy with the smooth operation of nylon sheaves. Designed for professional rigging and material handling applications, this tackle system offers superior performance with reduced weight and maintenance requirements.


​​Construction & Design Features:​

  • ​​Frame Material:​​ High-grade 6061-T6 aluminum alloy plate
  • ​​Sheave Material:​​ Industrial-grade nylon with fiber reinforcement
  • ​​Bearing System:​​ Sealed ball bearings with grease fittings
  • ​​Load Capacity:​​ Rated up to 5 tons (4.5 metric tons)
  • ​​Sheave Diameter:​​ 4 inches to 12 inches (100mm to 300mm)
  • ​​Hook Assembly:​​ Forged steel swivel hook with safety latch
  • ​​Surface Treatment:​​ Anodized aluminum with corrosion protection
  • ​​Safety Factor:​​ 5:1 minimum breaking strength


​​Performance Advantages:​

  • ​​Lightweight Construction:​​ 40% lighter than comparable steel models
  • ​​Corrosion Resistance:​​ Ideal for marine and outdoor applications
  • ​​Smooth Operation:​​ Nylon sheave reduces rope wear by up to 60%
  • ​​Reduced Maintenance:​​ Self-lubricating nylon requires minimal care
  • ​​Non-Sparking:​​ Safe for use in hazardous environments
  • ​​Quick Assembly:​​ Modular design for easy setup
  • ​​Versatile Mounting:​​ Multiple attachment point options


​​Professional Applications:​

  1. ​​Construction site material handling​​
  2. ​​Marine and offshore lifting operations​​
  3. ​​Theatrical and stage rigging​​
  4. ​​Industrial maintenance and repair​​
  5. ​​Warehouse and logistics operations​​
  6. ​​Emergency rescue equipment​​
  7. ​​Renewable energy installation​​

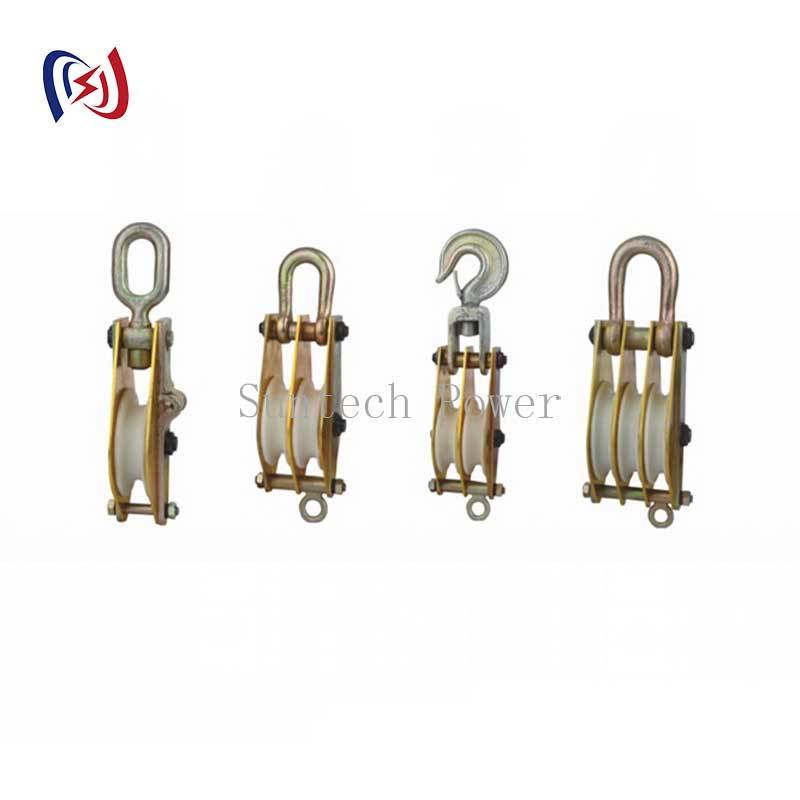

​​Available Configurations:​​

  • ​​Single Sheave:​​ Basic lifting applications
  • ​​Double Sheave:​​ For mechanical advantage systems
  • ​​Swivel Base:​​ 360° rotation capability
  • ​​Oversized Sheave:​​ For synthetic rope applications
  • ​​Custom Designs:​​ Special load requirements


​​Why Choose Our Aluminum Alloy Tackle:​

  • ​​Manufactured to ASME B30.26 standards​​
  • ​​Third-party load tested for safety​​
  • ​​Compatible with all standard rigging hardware​​
  • ​​Backed by 3-year material warranty​​
  • ​​Technical support from rigging specialists​


Item number Model Number of sheaves Rated load (kN)

Roller

Diaxwidth

(MM)

MAX. Rope Diamete

(mm)

Weight (kg)
11101 QHN1x1 1 10 Φ100×31 Φ8 2
11102 QHN1x2 2 Φ80×27 Φ6 2
11103 QHN1x3 3 Φ80×27 Φ6 2
11111 QHN2x1 1 20 Φ120×35 Φ10 2
11112 QHN2x2 2 Φ100×31 Φ8 3
11113 QHN2x3 3 Φ100×31 Φ8 4
11121 QHN3x1 1 30 Φ150×39 Φ11 3
11122 QHN3x2 2 Φ120×35 Φ10 4
11123 QHN3x3 3 Φ100×31 Φ8 5
11131 QHN5x1 1 50 Φ166×40 Φ13 5
11132 QHN5x2 2 Φ150×39 Φ11 6
11133 QHN5x3 3 Φ120×35 Φ10 5
11141 QHN8x1 1 80 Φ205×49 Φ18 7
11142 QHN8x2 2 Φ166×40 Φ13 8
11143 QHN8x3 3 Φ150×39 Φ11 8
11151 QHN10x1 1 100 Φ246×60 Φ20 11
11152 QHN10x2 2 Φ166×40 Φ13 10
11153 QHN10x3 3 Φ150×39 Φ11 12


Lightweight Aluminum Alloy Hoisting Tackle With Nylon Sheave For Rigging​ 0
