Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech Tower |
| Certification: | ISO, CE |
| Model Number: | Telecom Tubular Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 80000 Metric Ton/Metric Tons Per Year |
| Product Name: | 3 Legged Telecom Tubular Tower | Material: | Steel Q235,Q345,Q420 |
|---|---|---|---|
| Height: | 15-20M | Surface Treatment: | Galvanized |
| Wind Speed: | 110~160km/h_3 Second Gust | Lifetime: | 20-30years |
| High Light: | Steel Tubular Tower Hot Dip Galvanized,Telecom Steel Tubular Tower,15M Height Telecom Tower |
||
Hot Dip Glavanzied Telecom Steel Tubular Tower For Telecommunication Steel Tower
Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.
Monopole tower
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,
covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the
construction. Tower body adopt more reasonable section, which is connected through high strength
bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.
Guyed Tower
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.
Guyed tower is a common type of communication tower which is economical and practical. It is lighter and
cheaper than the others. It is very suitable for the geographical wide areas.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |

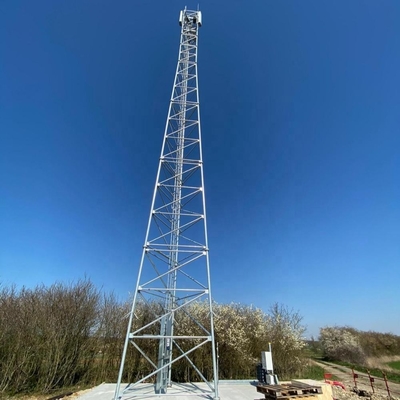

Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on
a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for
standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped
with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,
lightning protection kit and more. All of the accessories can be installed at any desired height and orientation
according to customer Specification.
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
Production Process
Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.

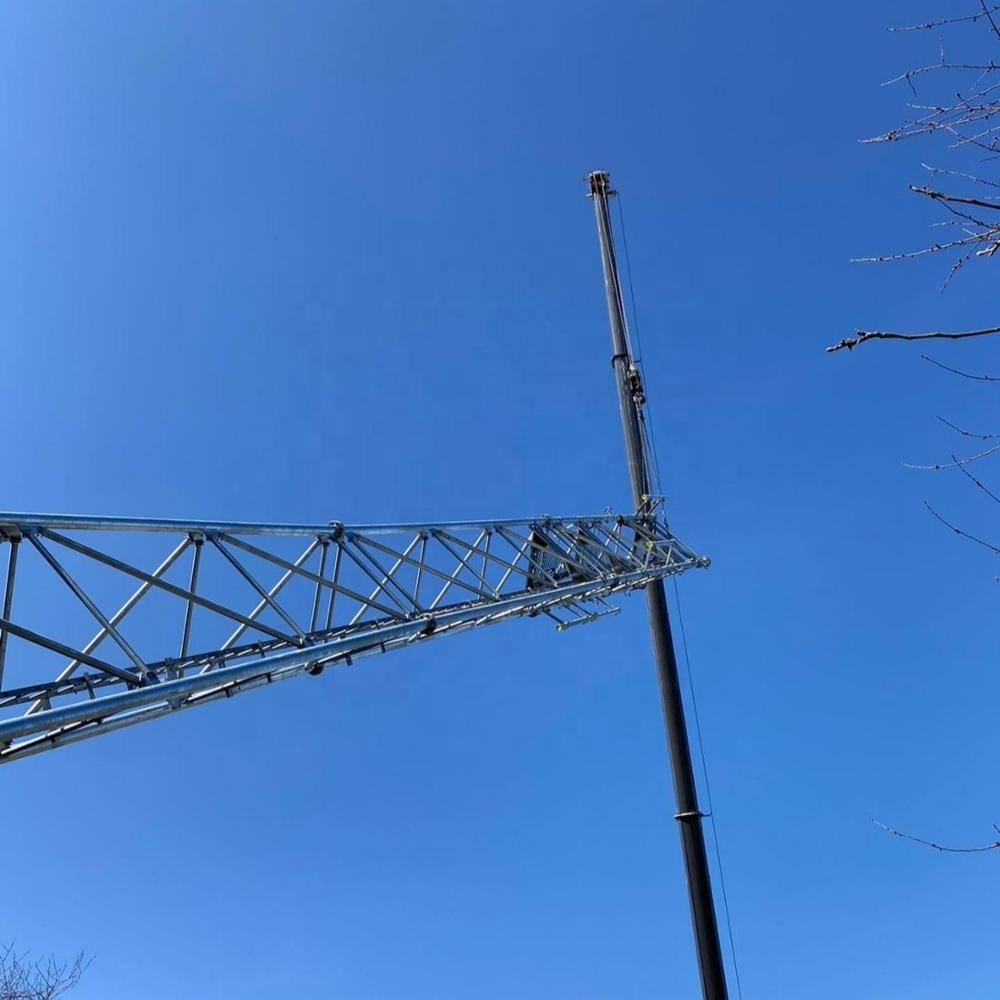

Telecom Structure Erection Guide
If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily
Contact Person: Peter
Tel: 86-13958364836
