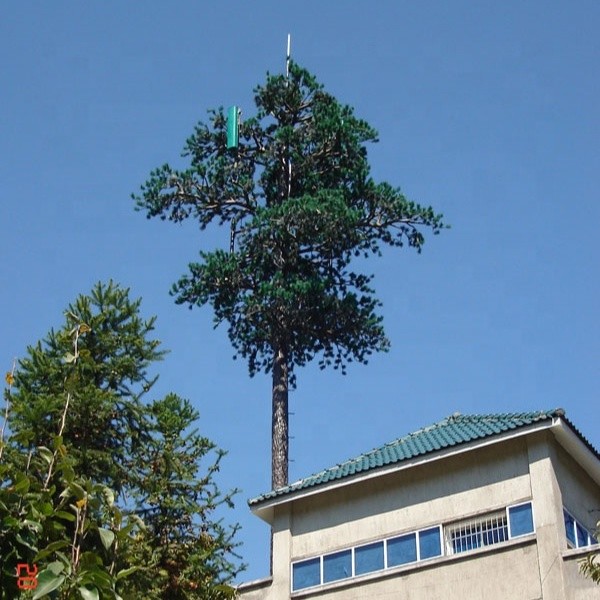

Pine Tree Camouflaged Steel Monopole Tower For Telecommunication

Pine Tree Camouflaged Steel Monopole Tower For Telecommunication

  • Pine Tree Camouflaged Steel Monopole Tower For Telecommunication
  • Pine Tree Camouflaged Steel Monopole Tower For Telecommunication
Pine Tree Camouflaged Steel Monopole Tower For Telecommunication
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Monopole Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the Newest Price
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Name: Monopole Tower Surface Treatment: Hot-dip Galvanized
Height: 10-80m Material: Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR
Wind Speed: 110~160km/h_3 Second Gust Lifetime: 20-30 Years
High Light:

Pine Tree Camouflaged Steel Monopole Tower

,

Q235B Telecommunication Steel Tower

Telecommunication Pine Tree Camouflaged Steel Monopole Tower With Related Accessories



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutiny

to deliver what you need.



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily



Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower

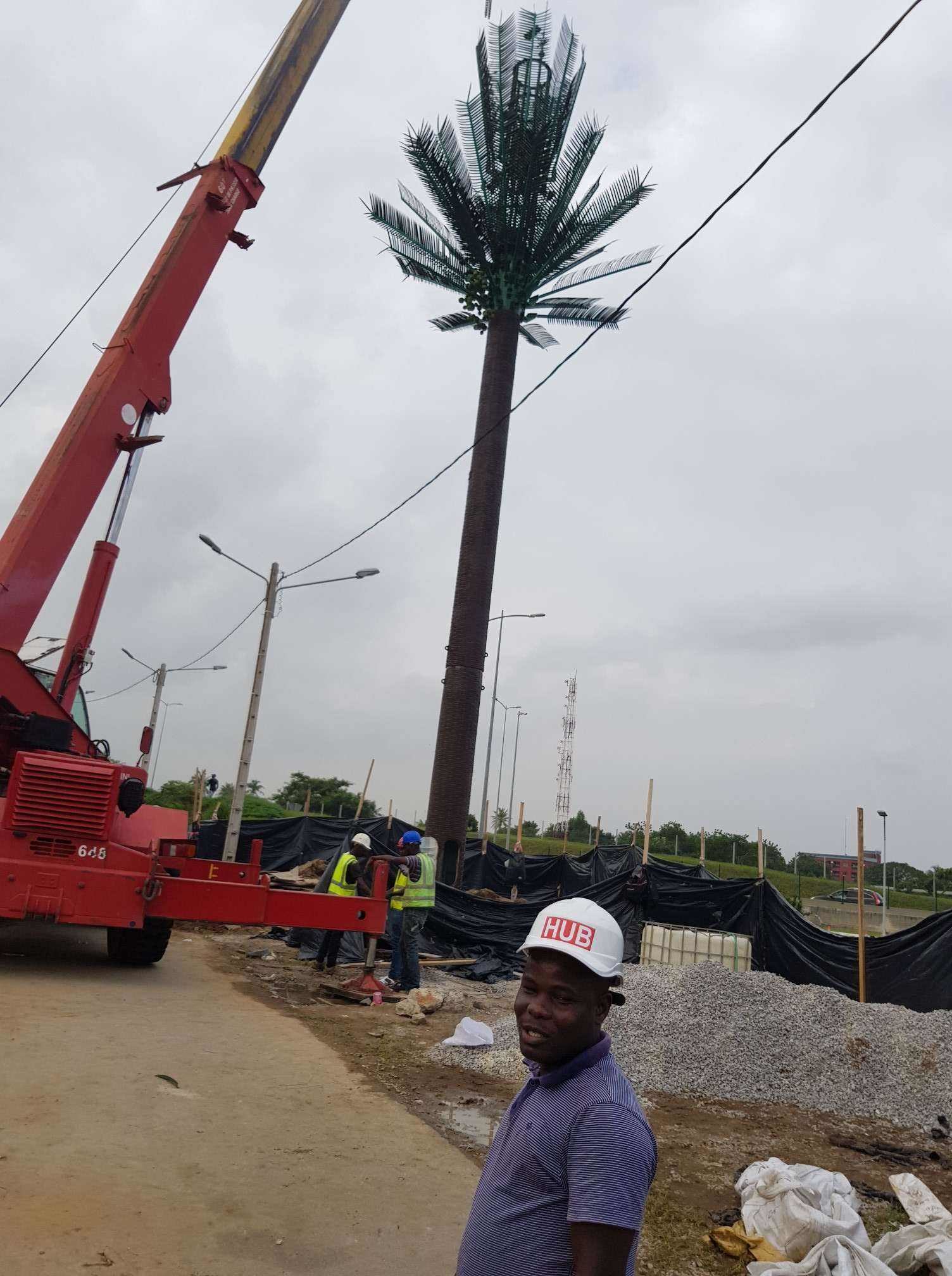

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients



Pine Tree Camouflaged Steel Monopole Tower For Telecommunication 0



After-Sale Service



Technical Support

Technical support on pre-sales stage. Suntech has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and

avoid the replacement on the profiles to save the working time.
