4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization

4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization

  • 4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization
  • 4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization
4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Antenna Mobile Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Antenna Mobile Tower Material: Steel
Application: Telecom Tower Wind Speed: 110KM/H
Surface Treatment: Hot Dip Galvanised Usage: Site Project
High Light:

4 leg telecommunication steel tower

,

angular telecommunication steel tower

,

galvanization steel antenna tower

4 Leg Angular Telecommunication Antenna Mobile Tower With Galvanization



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



2. Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



3. Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

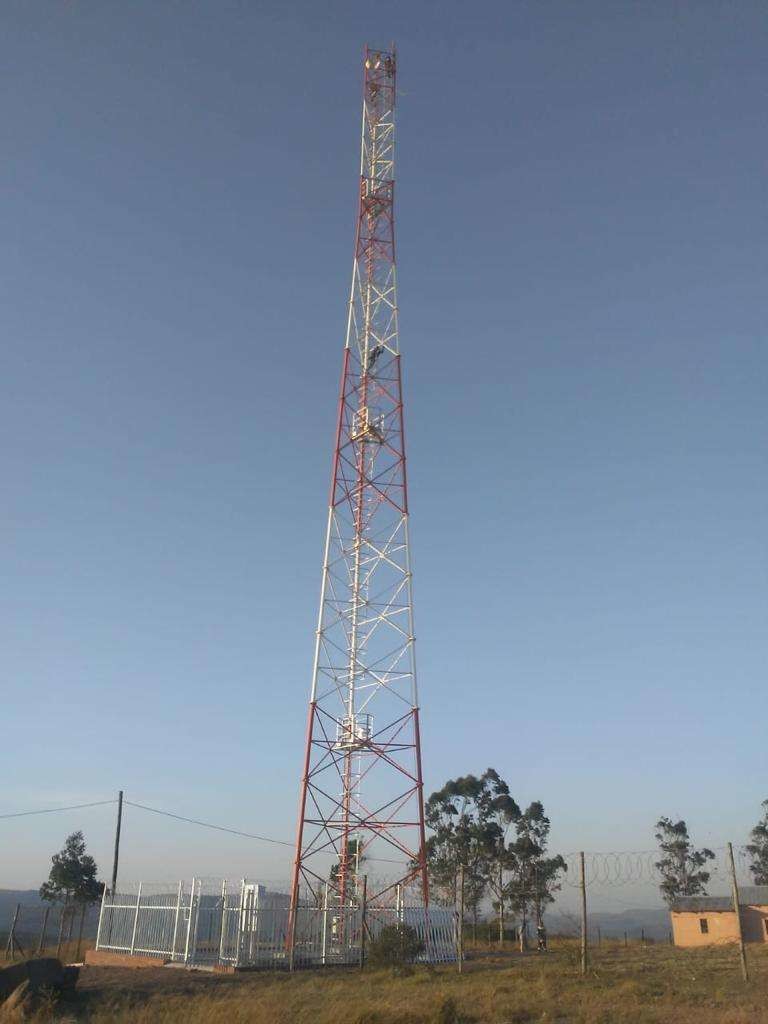

4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization 0



With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.



The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate

which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized

and packing for delivery as following shows:



1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



No. Description Detailed Specification and Major design Parameters
1 Design Code 1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete
2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.

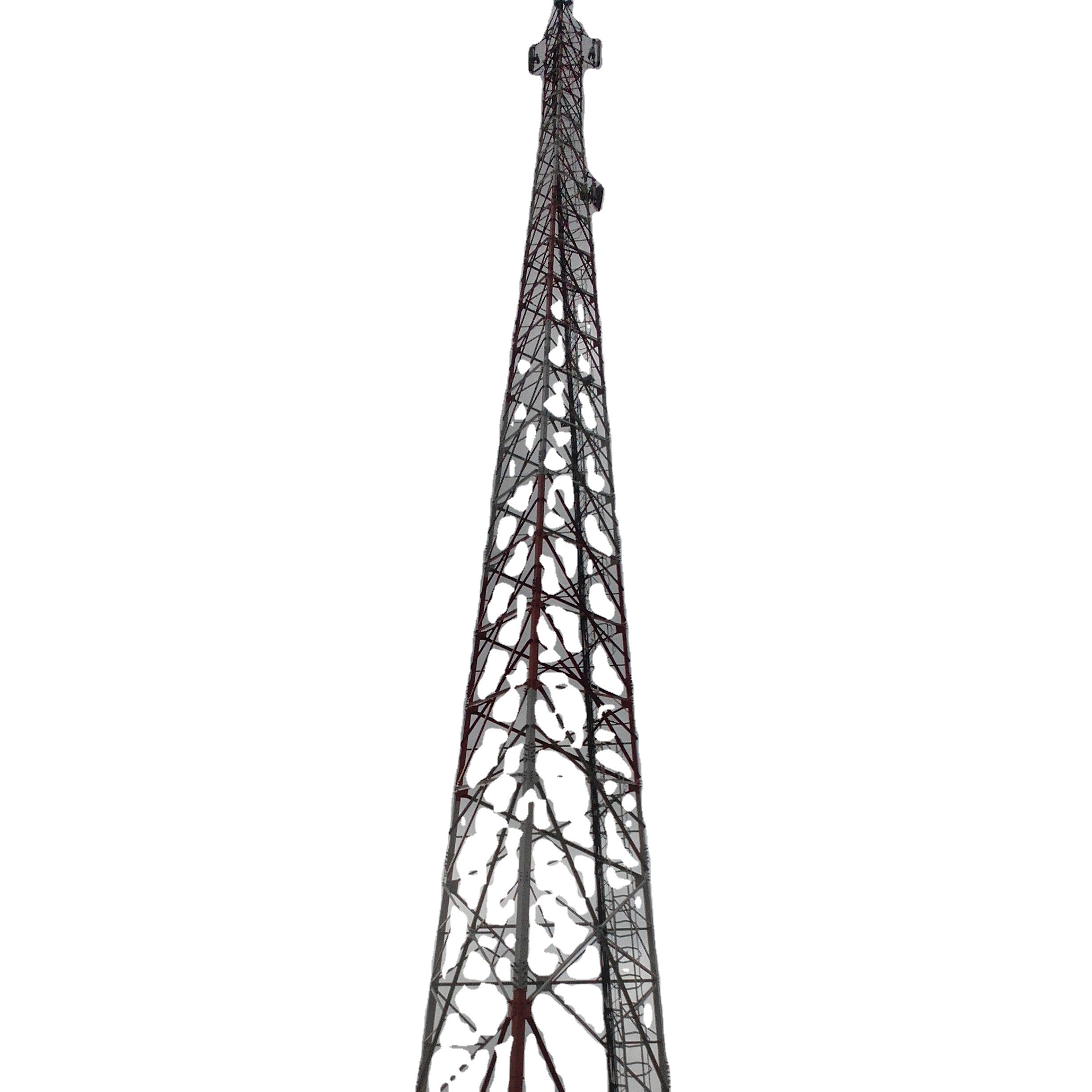

4 Leg Angular Telecommunication Steel Tower Antenna Mobile Galvanization 1
