Telecommunication Steel Tubular Tower Electric Power Steel Tower

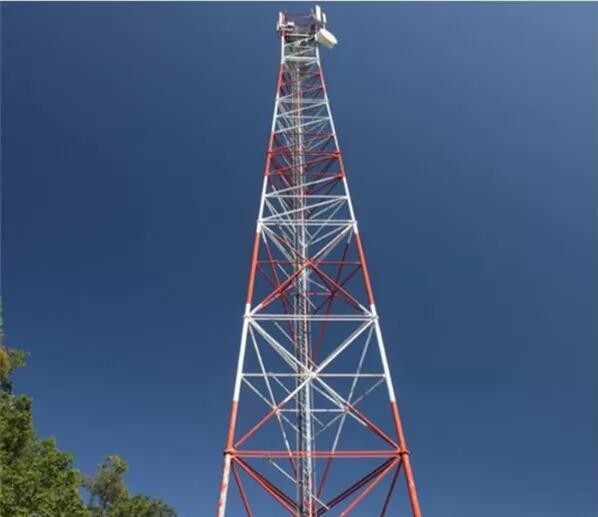

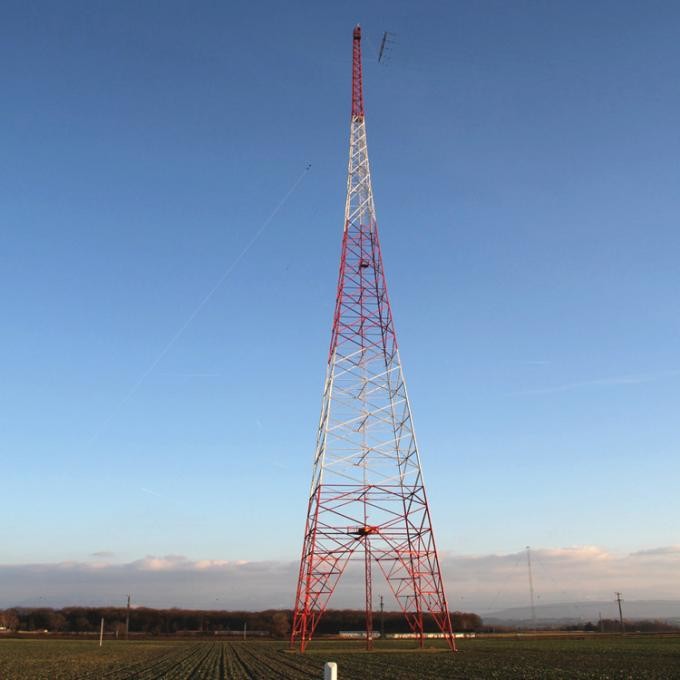

Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on
a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for
standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped
with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,
lightning protection kit and more. All of the accessories can be installed at any desired height and orientation
according to customer Specification.
Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and
other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,
ultrashort wave, wireless network signal transmission and transmission.
Telecommunication Tower- Goods description and major parameters
| No. |
Description |
Detailed Specification and Major design Parameters |
| 1 |
Design Code |
ANSI/TIA222G, European Standard and others |
| 2 |
Design Loading |
1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
|
| 4 |
Structure Classification |
II |
| 5 |
Hot-dip galvanization |
ISO 1461 2009, ASTM A123 |
| 6 |
Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
|
| 7 |
Bolts and Nuts |
Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 |
Foundation |
50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 |
Tower Type |
1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
|
| 10 |
Warranty |
1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
|
| 11 |
Return Period |
50 Years |
| 12 |
Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients
|
Quick Detail:
Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,
tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
