Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | Steel Lattice Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 35 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 4000ton per month |
Height: | Electric Power Transmission And Distribution | Suit For: | Hot-dip-galvanized Following ASTM123 |
---|---|---|---|
Voltage Level: | 10kV To 750kV | The Connection Method: | Flanged Connected, Splice Way |
Length Of Per Section:: | Within 13M Once Forming | Welding Standard: | AWS(American Welding Society)D 1.1 |
High Light: | 750KV Power Transmission Galvanized Lattice Tower,10KV Power Transmission Galvanized Lattice Tower,Galvanized 10KV Power Transmission Tower |

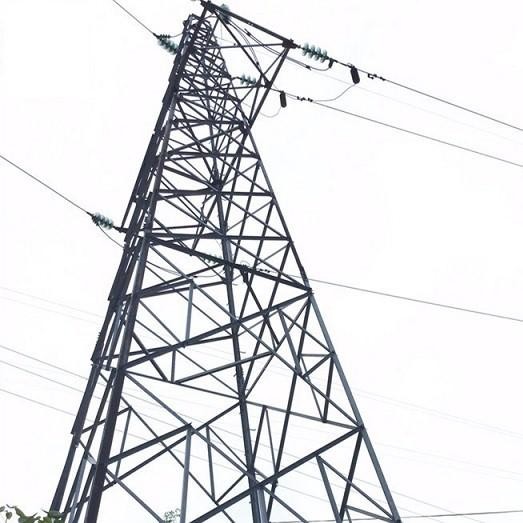

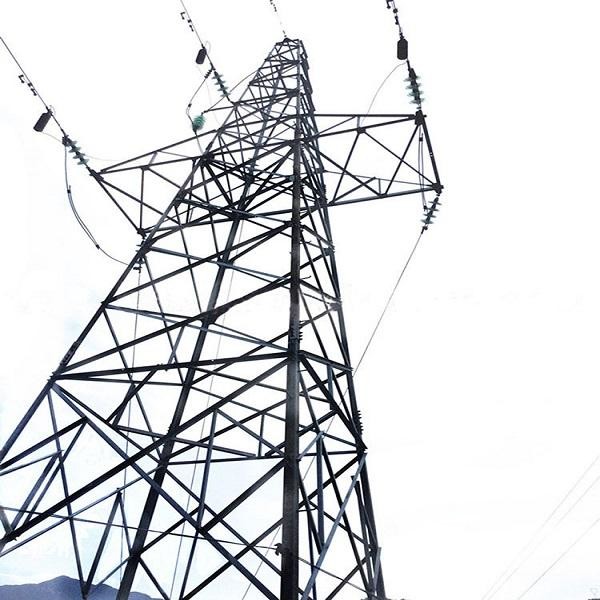

10kV To 750kV Power Transmission Lattice Tower Steel Post Galvanized Lattice Tower
Transmission towers may be converted to full oTransmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
We are leading Chinese Tower manufacturer which have 15 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 20 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
Product Parameters
Contact Person: Peter
Tel: 86-13958364836
