AC 6KV DC 5KV Safety DC AC Hipot Tester, Arc Detection Hipot Insulation Tester

Product Details:

Place of Origin:	Ningbo，China
Brand Name:	Ningbo Suntech Power
Certification:	ISO9001:2008
Model Number:	9911/9912

Payment & Shipping Terms:

Minimum Order Quantity:	One Unit
Price:	Negotiable
Packaging Details:	Export Standard Wooden Case With Fumigation Free
Delivery Time:	1-2Weeks
Payment Terms:	T/T
Supply Ability:	20units/month

Contact Now

Detailed Product Description

Used Field:	Electrical Test Apparatus	Application:	AC Hipot Test, DC Hipot Test, Safety Test
Test Output:	AC 5KV And DC 6KV	Advantage:	Programmable, With Arc Detection
Output Waveform:	Sine Wave	Test Accuracy:	±（2% Reading +5V)
Test Timer:	0.0-999.9s	Arc Detection:	Current Mode, Level Mode
High Light:	5KV AC Hipot Tester , Arc Detection Hipot Insulation Tester , Safety DC Hipot Tester

Portable Type AC Hipot Tester , AC 6KV DC 5KV Safety Tester , Programmable , Arc Detection
I. Product Description

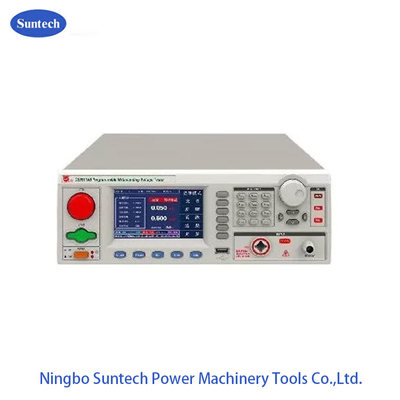

The 9911/9912 Hipot tester is a high voltage and programmable safety tester with an output voltage of AC5kV and DC6KV. It can be widely used in the safety tests of household appliances, transformer, electrical equipments and components.

II. Refer Standard

EC60335-1, GB4706.1, UL60335-1 Safety of household and similar electrical appliances Part 1: General requirements
UL60950, GB4943, IEC60950 information technology equipment
UL60065, GB8898, IEC60065 audio, video and similar electronic equipment safety requirements
IEC61010-1, GB4793.1 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements

III. Advantage

AC/DC withstand voltage function
Two arc detection methods are available: current mode, level mode
Test results can be saved simultaneously
With dual frequency integrated test, frequency range 50 Hz, 60 Hz
Humanized operation interface
English operation interface

IV. Technical Data and optional model

MODEL					9911A	9911B	9912A	9912B
AC	Output voltage	range			0.050～5.000kV
		accuracy			±2％ reading +5V
		resolution			1V
	Max. Output capacity				75W		100W
	Max. Rated current				15mA		20mA
	Current gear				2mA,15mA		2mA,20mA
	Lower limit current				(0～15.00)mA, 0=Do not judge the lower limit		(0～20.00)mA, 0=Do not judge the lower limit
	Output waveform				Sine wave
	Output waveform distortion				≤ 2% (no load or pure resistive load)
	Crest factor				1.3～1.5
	Output signal type				DDS+ amplifier
AC	Voltage rise time				0.3s ~ 999.9s 0 = voltage rise time off
	Test time				0.3s ~ 999.9s 0 = continuous test
	Voltage drop time				0.3s ~ 999.9s 0 = voltage fall time off
	Interval time				0.3s~999.9s 0=Interval time off
DC	Output Voltage		range			(0.050～6.000)kV		(0.050～6.000)kV
			accuracy			±(2％reading+5V)		±(2％reading+5V)
			resolution			1V		1V
	Max.output capacity					30W		60W
	Max.rated current					5.000mA		9.999mA
	Current gear					2mA,5mA		2mA,10mA
	Current lower limit					(0～5.000)mA, 0=Do not judge the lower limit		(0～9.999)mA, 0=Do not judge the lower limit
	Ripple coefficient					≤5%, 6kV/5mA		≤5%, 6kV/10mA
	Discharge time					≤200ms		≤200ms
	Max. Charging current					5mA		9.999mA
	Voltage rise time					0.3～999.9s 0=voltage rise time off		0.3～999.9s 0=voltage rise time off
	Test time					0.3～999.9s 0=Continuous test		0.3～999.9s 0=Continuous test
	Voltage drop time					0.3～999.9s 0=voltage drop time off		0.3～999.9s 0=voltage drop time off
	Interval time					0.3～999.9s 0=interval time off		0.3～999.9s 0=interval time off
Voltage meter	range				0.050kV～6.000kV
	accuracy				±(2％reading+5V)
	resolution				1V
	Display value				RMS value
Current meter	Test range			AC	0 ～ 20mA
				DC	0 ～ 10mA
	resolution			AC	2mA gear:1uA, 20(15mA)mA gear,10uA
				DC	2mA gear :1uA, 10(5mA)mA gear,10uA
	accuracy				±(2%+5words)
	Error Offset current				0 ～ 2mA
Timer	range				0.1s～999.9s
	Accuracy/resolution				±1%/0.1s
