89kN 33kV Max High Voltage Line Post Insulators

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	Suntech
Certification:	ISO
Model Number:	ST

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Get the newest price
Packaging Details:	Exported Package
Delivery Time:	20 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs per week

Contact Now

Detailed Product Description

Model Number::	Pin/tension/busbar/spool/glass Type	Type:	Standard Type Toughened Glass Insulator
Material:	Porcelain	Application:	High Voltage
Rated Voltage:	0.4-33KV	Tensile Strength:	44-89kn
Usage:	Strain Insulator
High Light:	89kN Line Post Insulators , 33KV Line Post Insulators , 33kV Electric Pole Insulator

Factory Outlet High Voltage Line Post Insulators Electric Wire Composite Tension Suspension Insulator

Product Characteristics

Insulator is one of the key components in high voltage transmission line, its performance directly affects the whole the safety operation of the transmission line. Glass insulators are widely used because of their characteristics of zero self-breaking and easy maintenance.
Using glass insulator, it can cancel the operation process of insulator of charged periodic preventive test. This is due to every damage to tempered glass causes damage to the insulator, which operators can easily find when patrolling the wire.

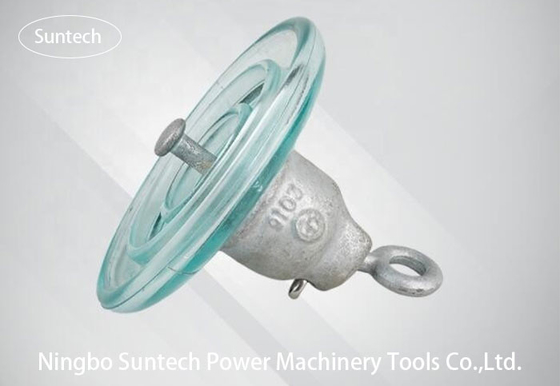

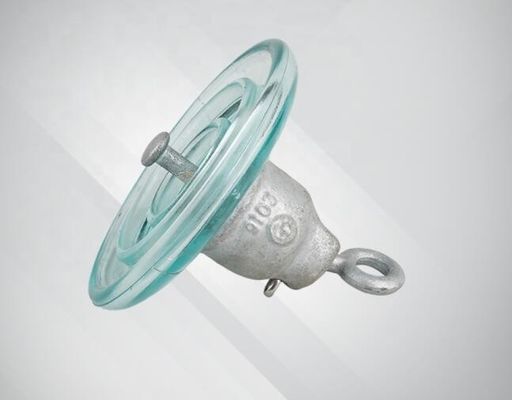

It is made of toughened glass. Due to the high mechanical strength of the surface layer of glass insulator, cracks are not easy to occur on the surface. The electrical strength of glass remains constant throughout its operation and the aging process is much slower than that of porcelain.
Insulator is a special insulation control, which can play an important role in overhead transmission lines.

89kN 33kV Max High Voltage Line Post Insulators 0

TYPE	IEC	Min Mechanical Failing Load(kN)	H	D	Nominal Creepage Distance(mm)	Dry Lightning Impulse Withstand Voltage(kV)	Power Frequency		Standard Coupling	Punture Withstand Voltage	Weight
			(mm)	(mm)			Dry,	Wet,		(kV)	(Kg)
			(mm)	(mm)			1 min	1 min		(kV)	(Kg)
ST-40	U40B	70	110	175	190	75	55	30	11	90	2
ST2 - 70	U70BL	70	127	255	320	100	70	40	16	130	3.5
ST1-70	U70BL	70	146	255	320	100	70	40	16	130	3.9
ST2 -100	U1008S	100	127	255	320	100	70	40	16	130	3.9
ST-100	U100BL	100	146	255	320	100	70	40	16	130	4
ST2-120	U120BS	120	127	255	320	100	70	40	16	130	3.9
ST-120	U120BL	120	146	255	320	100	70	40	16	130	4
ST4-160	U160BS	160	146	280	380	110	75	45	20	130	6.1
