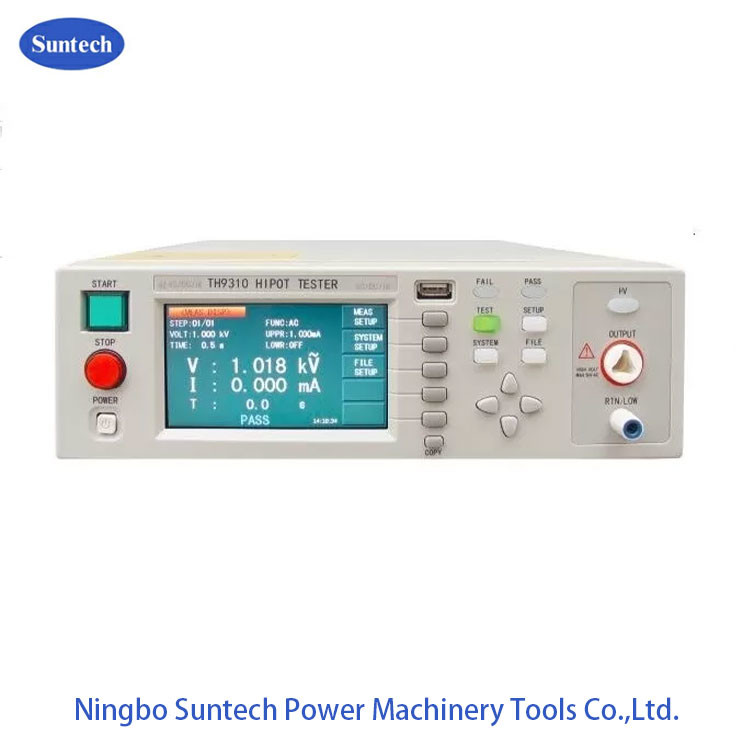

Safety AC / DC Hipot Test Equipment, Insulation Resistance Test Instrument

Product Details:

Place of Origin:	Ningbo，China
Brand Name:	Ningbo Suntech Power
Certification:	ISO9001:2008
Model Number:	TH9310/20

Payment & Shipping Terms:

Minimum Order Quantity:	One Unit
Price:	Negotiable
Packaging Details:	Export Standard Wooden Case With Fumigation Free
Delivery Time:	1-2Weeks
Payment Terms:	T/T
Supply Ability:	20units/month

Contact Now

Detailed Product Description

Used Field:	Safety Tester , Hipot Tester , Insulation Resistance Tester	Application:	AC /DC Hipot Test , Insulation Resistance Test
Test Timer:	0.0-999.9s	Resistance Range:	1MΩ– 9999MΩ At Max. 1KV
Voltage Range:	AC 5KV , DC 6KV	ARC Detection:	1 – 9 Levels
High Light:	Safety AC Hipot Test Equipment , DC Hipot Test Equipment , 5KV Insulation Resistance Test Instrument

Portable Type AC Hipot Tester , DC Hipot Tester , High Voltage Test Equipment , Variable Frequency Test

I. Product Description

TH9310/20 series withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size, light weight, pleasing appearance and easy operation.
TH9310/20 series can be widely used in the safety tests of household appliances, transformer, electrical equipments and components.

II. Feature

TH9310 series: AC:5kV/10mA; DC:6kV/5mA AC/ DC withstanding voltage/insulation resistance tester
TH9320 series: AC:5kV/20mA; DC6kV/10mA AC/ DC withstanding voltage/insulation resistance tester
TH9310/20:AC/ DC withstanding voltage/insulation resistance tester TH9310A/20A: AC / DC withstanding voltage tester TH9310B/20B: AC withstanding voltage tester
480×272 dot-matrix, TFT-LCD display
Rapidly discharging and arc detection
Randomly set voltage rising time and testing time in 999.9 seconds; Freely set waiting time for insulation resistance
Hold 5 testing steps; 4 testing modes selectable
Brand new operation interface and concise interface operation design
Lock keyboard
PLC interface
Other Specifications : Power: ≤500VA (TH9320/A/B) ≤400VA (TH9310/A/B) Dimensions(W*H*D): 340mm*120mm*450mm; 3. Weight: approx. 15kg (TH9320/A/B); approx. 13kg (TH9310/A/B). 4. Multi-channel module: 340mm*50mm*450mm; approx.5kg

III. Technical Data and :

Safety AC/DC AC Hipot Test Equipment , Insulation Resistance Test Instrument 0

Safety AC/DC AC Hipot Test Equipment , Insulation Resistance Test Instrument 1

VI.Optional model

TH9320: Provide 5kV AC/20mA withstanding voltage, 6kV DC/10mA withstanding voltage and insulation resistance test.

TH9320A: Provide 5kV AC/20mA withstanding voltage, 6kV DC/10mA withstanding voltage test.

TH9320B: Provide 5kV AC/20mA withstanding voltage test.

TH9310: Provide 5kV AC/10mA withstanding voltage, 6kV DC/5mA withstanding voltage and insulation resistance test.

TH9310A: Provide 5kV AC/10mA withstanding voltage, 6kV DC/5mA withstanding voltage test.

TH9310B: Provide 5kV AC/10mA withstanding voltage test.

V.Supply list

Host tester
Power lead
Test wire
Manual and certificate
