Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001:2008 |
Model Number: | 9912 and 9914 |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 1-2Weeks |
Payment Terms: | T/T |
Supply Ability: | 20units/month |
Used Field: | Electrical Test Apparatus | Application: | AC And DC Hipot Test |
---|---|---|---|
Test Output: | AC 5KV , DC 6KV | Advantage: | High Accuracy , Variable Frequency Test |
Current Range: | 9912: 5.0µA-20.00mA(AC)/0.050µA-10.00mA(DC) | Leakage Current Range: | 9914: 5.0µA-100.00mA(AC)/0.050µA-50.00mA(DC) |
Test Accuracy: | 1.0%±2digit(F.S) | Test Timer: | 0.0-999.9s |
High Light: | High Accuracy AC Hipot Test Equipment,Variable Frequency DC Hipot Test Equipment,Fast Discharge AC Hipot Tester |

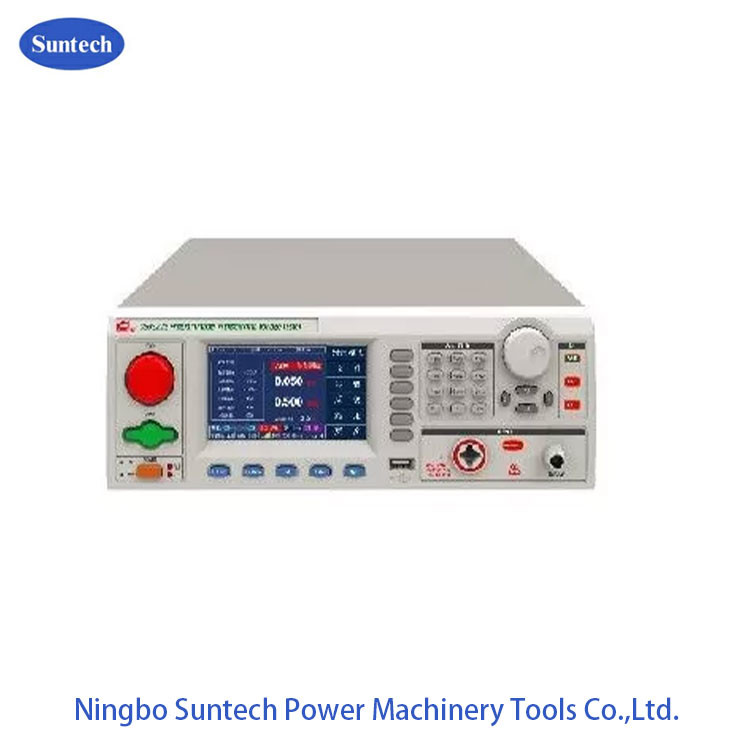

Portable Type AC Hipot Tester , DC Hipot Tester , High Voltage Test Equipment , Variable Frequency Test
I. Product Description
Model 9912 and 9914 portable AC hipot tester is a test equipment designed by our company according to the national industry test standards. It is safe, reliable, powerful, easy to use and easy to maintain. This product is suitable for all kinds of motors, electrical appliances, instrumentation and household appliances, as well as high-power systems. it preform safety withstand voltage and leakage current test to assess the insulation level of the tested product, find the insulation defect of the tested product, and measure the ability of the tested product through withstand voltage.
II. Feature
III. Technical Data and optional model:
AC/DC Hipot Tester | |||||||
Model | Output voltage(kV) | Measurement leakage current | Test accuracy | Timer | Frequency(Hz) | ARC test | |
9912 | 0.050-5.000(AC) 0.050-6.000(DC) |
5.0µA-20.00mA(AC)/ 0.050µA-10.00mA(DC) |
±(1%+2digital) | 0.0-999.9s | 40.0-400.0 | 0-9 class | |
9914 |
5.0µA-100.00mA(AC)/ 0.050µA-50.00mA(DC) |
±(1%+2digital) | 0.0-999.9s | 40.0-400.0 | 0-9 class |
VI.Supply list
Contact Person: Peter
Tel: 86-13958364836
