Name: Integrated Type AC Hipot Test Equipment 1s-99h Timing Range Over Current Protection
Brand: Ningbo Suntech Power
SKU: CQSB-10KV
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (103 reviews)

Home Products High Voltage Cable Testing Equipment

Integrated Type AC Hipot Test Equipment 1s-99h Timing Range Over Current Protection

Product Details:

Place of Origin:	Ningbo，China
Brand Name:	Ningbo Suntech Power
Certification:	ISO9001:2008
Model Number:	CQSB-10KV

Payment & Shipping Terms:

Minimum Order Quantity:	One Unit
Price:	Negotiable
Packaging Details:	Export Standard Wooden Case With Fumigation Free
Delivery Time:	1-2Weeks
Payment Terms:	T/T
Supply Ability:	20units/month

Contact Now

Detailed Product Description

Used Field:	Electrical Test Apparatus	Application:	AC And DC Hipot Test
Test Range:	AC 10KV , DC 14KV	Advantage:	Portable , Integrated Type
Timing Range:	1s-99h	Output Power:	1KVA
Power Supply:	AC220V±10%, 50/60Hz	Test Accuracy:	≤ 1.5%±1digit(F.S)
High Light:	Integrated Type AC Hipot Test Equipment , Over Current Protection AC Hipot Tester

Integrated Type AC Hipot Tester , DC Hipot Tester , High Voltage Test Equipment

I. Product Description

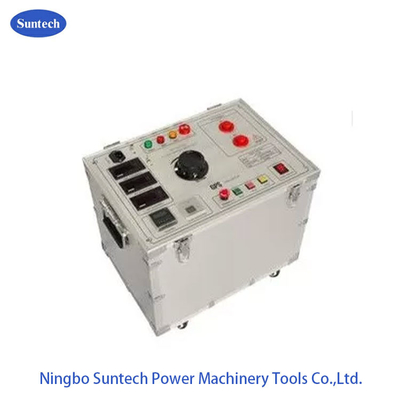

CQSB-10KV is a kind of integrated type AC/DC hipot tester , which is compact unit which integrate control unit with HV unit in one device. It is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.

II. Feature

Digital display meters mounted on the panel.
Monitoring HV side voltage, HV side current, LV side current and indicator of zero, power, working start, timing.
Over-current protection, zero-starting protection, sound and light alarm.
With new type time relay, time rang is more wider (1S ~ 99H).
Using the latest current relay, more accurate and reliable.
Light weight, small size, easy to move.

III. Technical Data:

Power input	AC220V±10%, 50Hz
Capacity	1kVA
Output voltage	AC 0-10kV DC 0-14kV
Rated output current	5A
Rated current rectified range	0-5A
HV voltmeter range	0-10kV Accuracy: 1.5% of the reading±1digit(F.S)
HV ammeter range	0-100mA Accuracy: 1.5% of the reading±1 digit(F.S)
LV ammeter range	0-5A Accuracy: 2.0% of the reading±1 digit(F.S)
Timing range	1s-99h
Weight	36kg
Dimension	470mm (L)345mm (W)515mm (H)

IV. Working conditions

Working place: No gas, steam, chemical dust and explosive and corrosive medium which will influence insulation.
Environment temperature: -20--50℃
Environment humidity: ≤85% RH (no condensing)
