Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001 |
Model Number: | FKDK series |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 1-3 Weeks |
Payment Terms: | T/T |
Supply Ability: | 10~20 work days |
Used Field: | Electrical Test Apparatus For AC Hipot Testing | Application: | Compensation High-voltage Test Current |
---|---|---|---|
Max. Test Voltage: | 30KV , 25KV , 20KV Three Output Taps | Max. Output Capacity: | 300mA, 250mA, 150mA |
Duty Cycle: | Within 5mints At Rated Capacity | Test Object: | Special For 35KV Below Power Equipment Test |
High Light: | Power Frequency Testing Compensating Reactor,Small Size AC Hipot Test Equipment,Power Frequency AC Hipot Test Equipment |

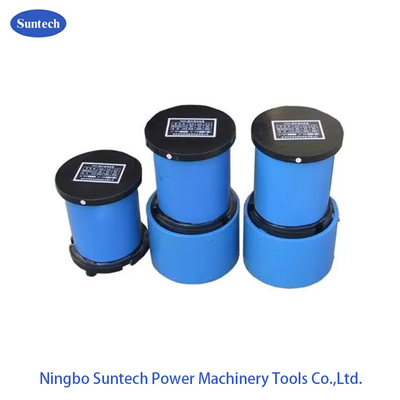

Ultra Light Power Frequency Testing Compensating Reactor , AC Withstand Voltage Test Set , Portable Type
I. Product Description
FKDK series Ultra Light Power Frequency Testing Compensating Reactor is one portable compensation high-voltage current unit with dry-type design, it is usually combined use with portable power frequency AC hipot test set to reduce the each piece weight of test set,especially for field handover,overhauling and preventive field test of small and medium power electrical equipment. it works at power frequency50/60Hz..
it has with small size, light weight and portable design , and makes the control input capacity of matched voltage regulator of AC hipot test set to be samller through compensation test current under no more than target tet voltage .
it usually is connected with test objected in parallel circuit through more pieces combination using to get larged test current output.
II. Applications:
III.Technical index of each piece:
1. Rated voltage and current
2. Rated frequency: 50Hz
3. Manner of working: At 300 mA, continuous working for 10min;
At 250 mA, continuous working for 30min;
At 150 mA, continuous working for 120min;
4. Service conditions: T:-20℃~45℃ H:≤85%
5. Dimensions:φ220×270
6. Weight:17kg
