Container Type HV Test Set With Resonance Fast High Voltage Test System

Variable Frequency Resonant Withstand Voltage Test Set , Container Type HV Test Set With Resonance , Fast Testing

I. Application :

CHX-(JZ) container style series resonance test device fixes all the test equipment of series resonance test device in several containers, integration design of observe and control cabinet and complete test equipment,connecting test line and power distribution box aims to clipper transport, quick connect for test, convenient for maintenance and installation for the test equipment which greatly reduce labour intensity and suitable for field operation

II. Scope of Application

• Transformer induced withstand voltage and PD test.
• 500KV and below class CVT calibration test ;
• AC hipot test for HV CT/switch/bushing of 220KV class and below
• AC voltage withstand test for GIS ,GIL and cables of no more than 220KV class

III. Kinds of solution

• Container style 220kv transformer voltage withstand and complete equipment of partial discharging test
• Container style 220kv high voltage GIS variable frequency series resonance test equipment.
• Container style high voltage XLPE cable variable frequency resonance test equipment.
• Container style HV transformer, CVT field calibration equipment.

Note:part of them can be designed as hydraulic electric telescopic due to the size of the equipment.

Some parts of testers can be designed with compatibility

IV. Basic layout of containers

• Observe&control room: includes observe and control unit,eg.controlling cabinet or computer,peak value meter, partial discharging instrument,etc.
• HV test equipment integration zone: including variable frequency power source(partial discharging or general),HV(partial discharging) excitation transformer,HV test reactors, HV capacitance voltage divider.
• Power distribution units:involves lightning,air-conditioning of controlling room, power distribution loop of observe&control room.
• Warehouse district of test attachment:involves warehouses of external test connecting line,attachment and tools for testing&installation.

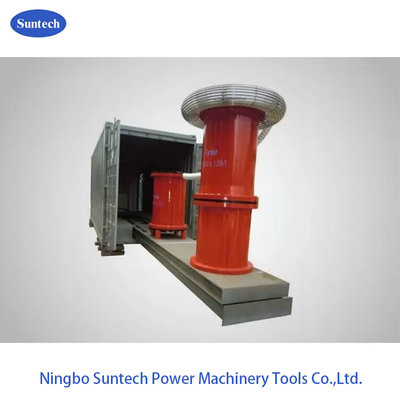

• Electric hydraulic propelling plat can be used for some parts of specification thus making device in HV zones stretch out or move back into cabin automatically

V. Technical Features and Advantage

• Greatly improved efficiency of field test
• Integrated design of observe&control cabinet and complete test device. Connecting test line and power distribution box
• Considering of the problems of heating,vibration and loss by entirely new designing concept
• Convenient for lifting and transportation
• Sealed by air pressure for waterproof,rain-proof and keeping warm.
• Special operation desk and place for instrument,two dimensional hydraulic anti-vibration device, prevent damage of instrument in the testing transport.
• Sufficient insulation safety distance was considered in designing for HV equipment and container.
• Test device system and configuration parameterof the container can be selected by customer’s samples.
• Electric propel the reactor if equipped with hydraulic thrust unit and the movement is gentle and stable,no clamping stagnation and swing to avoid handling time of boost units.
• Generator and cable controlling device is also can be selected

VI. Main Components :

• HV Test reactors group
• Varailable frequency power source
• Excitation transformer
• Voltage divider
• Smaller Operation and control container
• One standard ontainer for HV testing zone
• Test accessories and so on.
