Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Lattice Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 35 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200000 Metric Ton/Metric Tons Per Year |
Product: | Angle Steel Tower | Material: | Steel |
---|---|---|---|
Voltage: | 10kV-500kV | Application: | Transmission Line Tower |
Life Time: | At Least 30 Years | Wind Speed: | 120KM/H |
High Light: | 110KV Transmission Line Angle Steel Tower,Angle Steel 110 KV Tower,Hot Dip Galvanized 110 KV Tower |

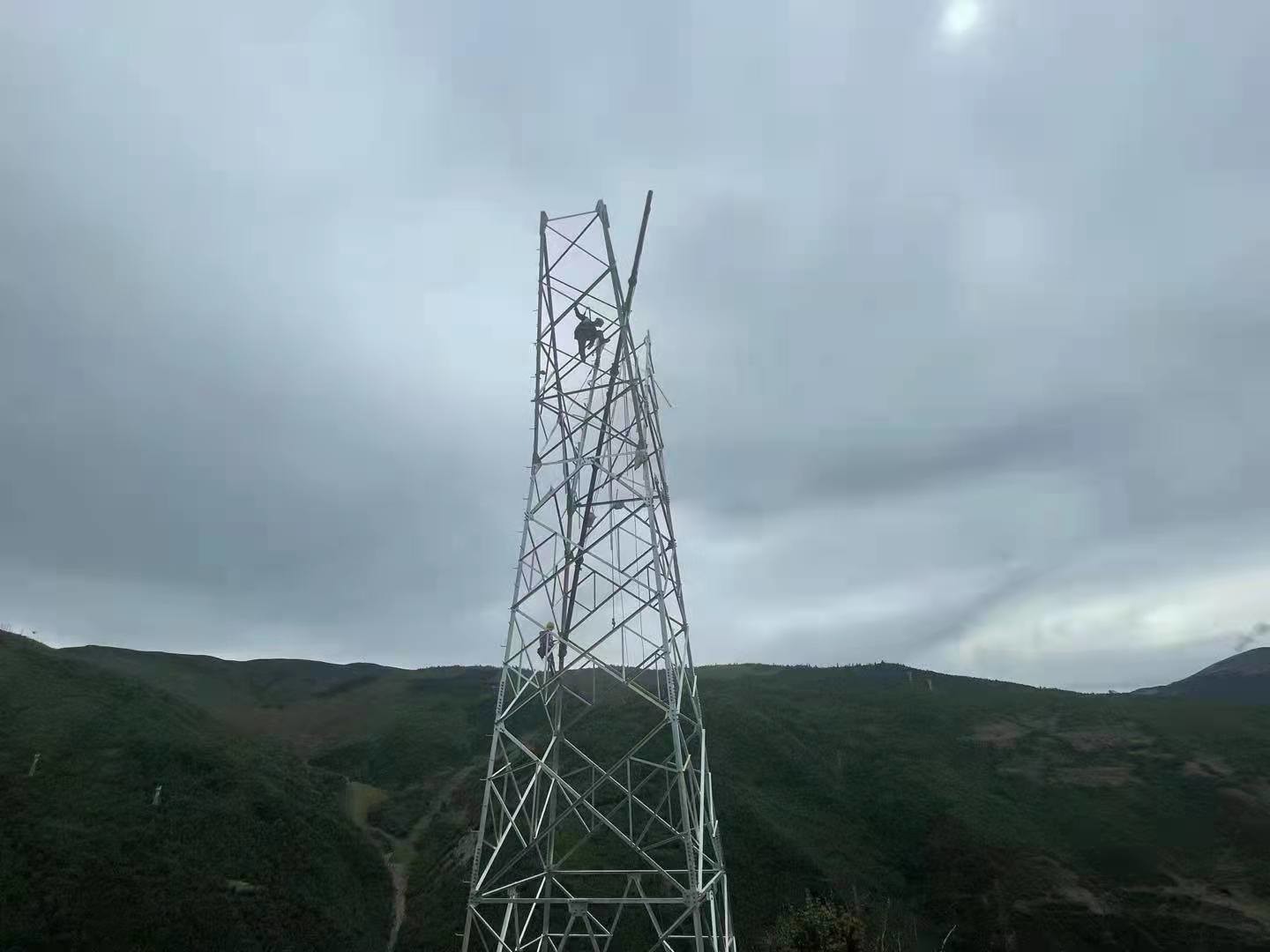

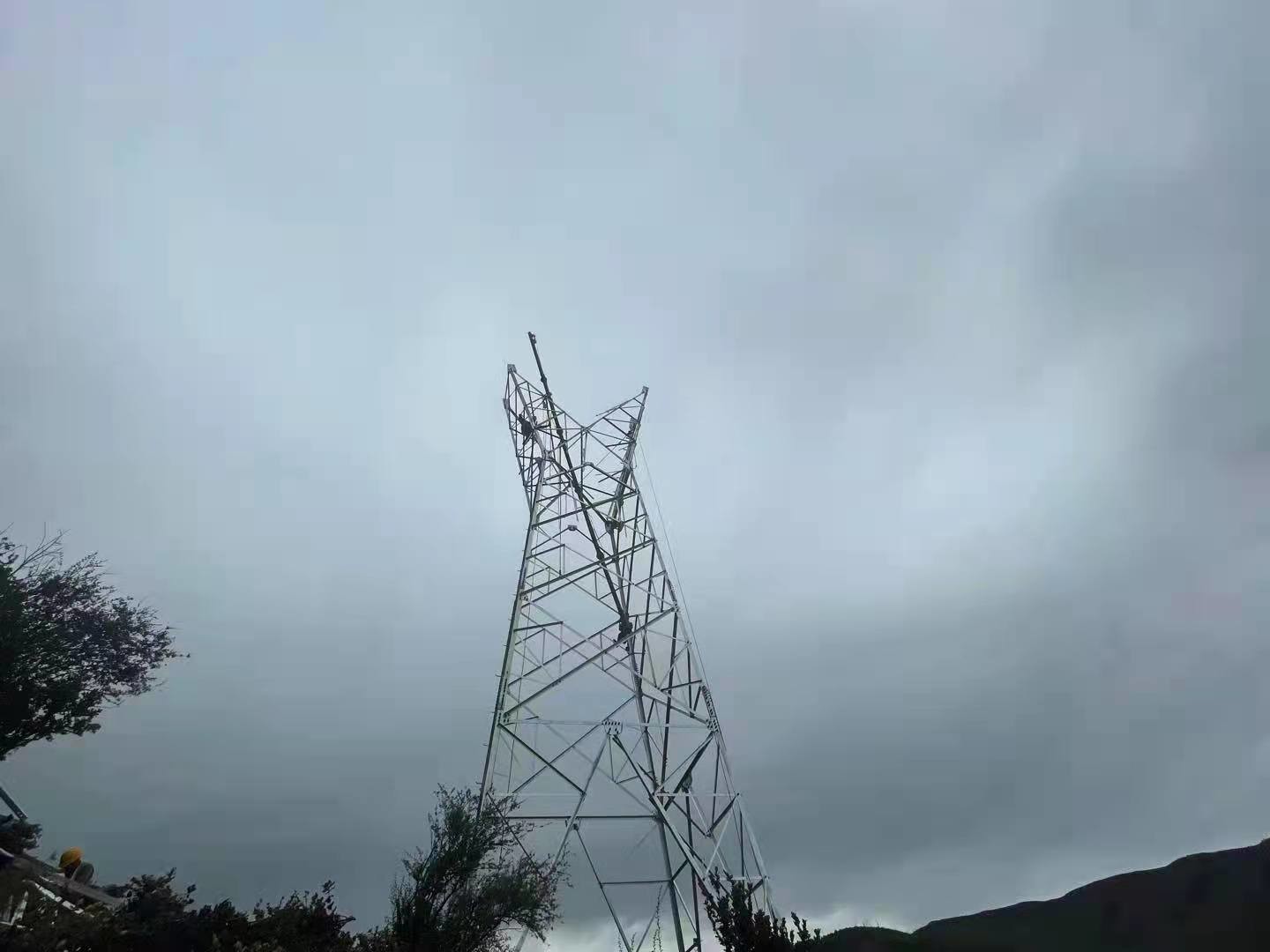

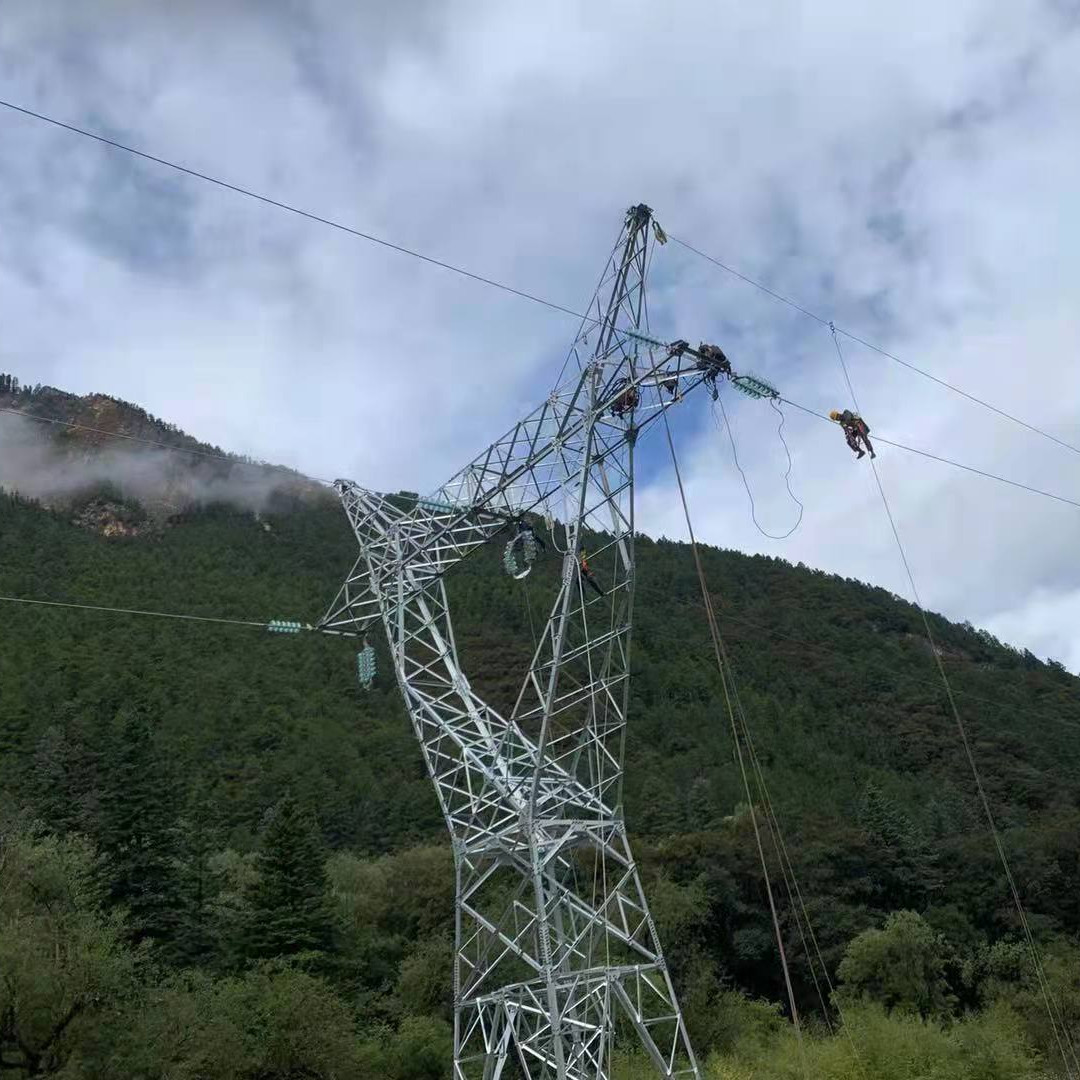

China Direct Hot Dip Galvanized Angle Steel 110KV Transmission Line Tower
Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.
Each power transmission tower, depending on its type, size and shape, includes a series of varied parts, components and accessories; with detailed engineering calculations and in accordance with the customer orders and needs, using technology and Advanced software.
After precise investigation, control and final approval, plans are sent to production unit; where each piece, is cut, bend or/and punched by the very advanced CNC Machines, and then is galvanized to protect the steel from corrosion before passing the stages of packaging, storage, to be transferred to the installation site.
Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–30 kV, but normally carry only one or two conductors.
Item Name | Design manufacture High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers |
Type | Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower |
Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² |
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² | |
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required. | |
Power Capacity | 10~1000KV |
Welding | Welding complies with AWS D1.1 standard. |
CO2 welding or submerged arc auto methods | |
No fissure, scar, overlap, layer or other defects | |
Internal and external welding makes the pole more beautiful in shape | |
If customers need any other requirements of welding, we also can make adjustment as your request | |
Galvanization | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required. |
Joint | Joint with insert mode, flange mode. |
Painting | According to clients' request |
Life Period | More than 25 years, it is according to installing environment |
Certificates | ISO9001-2008 , Test report of 500kV and 800kv Steel Tubular Tower & Transmission Line Tower |
Packing | According to customer's requirement |
Height | 10-105m |
Wind Pressure | 210Km/h |
Capacity | 5000 tons/month |
