Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | Steel Lattice Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 35 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000ton per month |
Material: | Usually Q345B/A572 | Color: | Customer Request |
---|---|---|---|
Height: | 20---100m | Application: | Electric Power Transmission |
Surface Treatment: | Hot DIP Galvanization | Strength: | 2.5KN,5KN,8KN,10KN,12KN |
High Light: | 500KV Power Transmission Line Towers,130KV Power Transmission Line Towers,33KV Lattice Steel Towers |

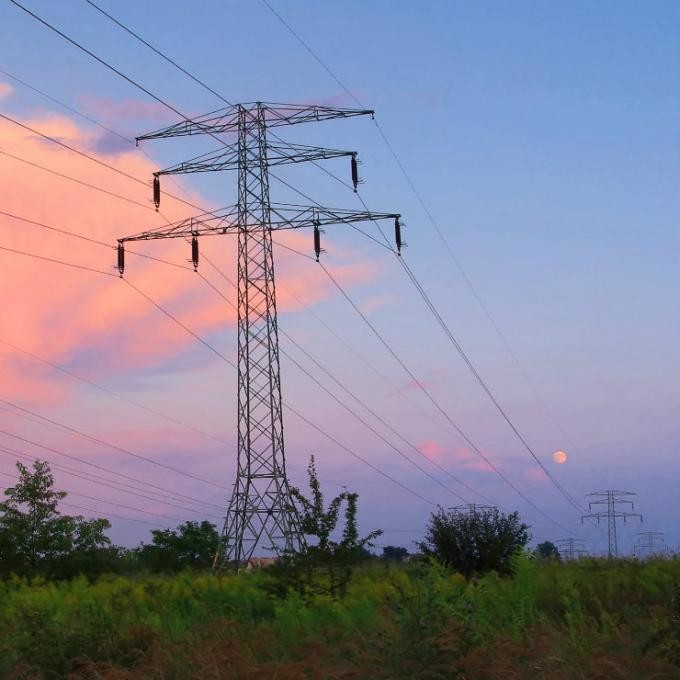

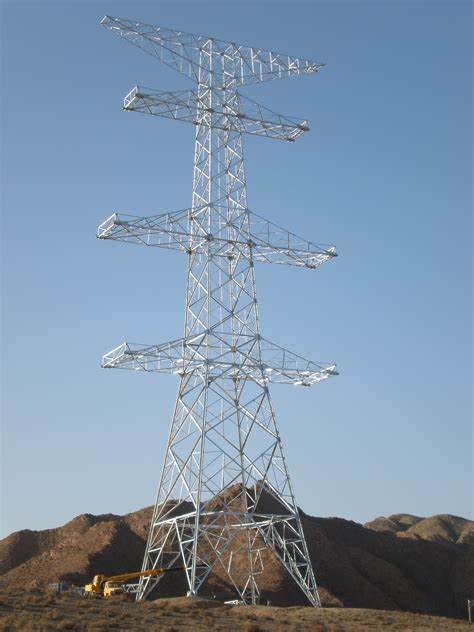

33kv 130kv 500kv Lattice Steel Towers Power Transmission Line
Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–100 kV, but normally carry only one or two conductors.
AC transmission towers may be converted to full oTransmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–100 kV, but normally carry only one or two conductors.
Item Name | Design manufacture High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers |
Type | Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower |
Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² |
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² | |
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required. | |
Power Capacity | 10~1000KV |
Welding | Welding complies with AWS D1.1 standard. |
CO2 welding or submerged arc auto methods | |
No fissure, scar, overlap, layer or other defects | |
Internal and external welding makes the pole more beautiful in shape | |
If customers need any other requirements of welding, we also can make adjustment as your request | |
Galvanization | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required. |
Joint | Joint with insert mode, flange mode. |
Painting | According to clients' request |
Life Period | More than 25 years, it is according to installing environment |
Certificates | ISO9001-2008 , Test report of 500kV and 800kv Steel Tubular Tower & Transmission Line Tower |
Packing | According to customer's requirement |
Height | 10-105m |
Wind Pressure | 210Km/h |
Capacity | 5000 tons/month |
Contact Person: Peter
Tel: 86-13958364836
