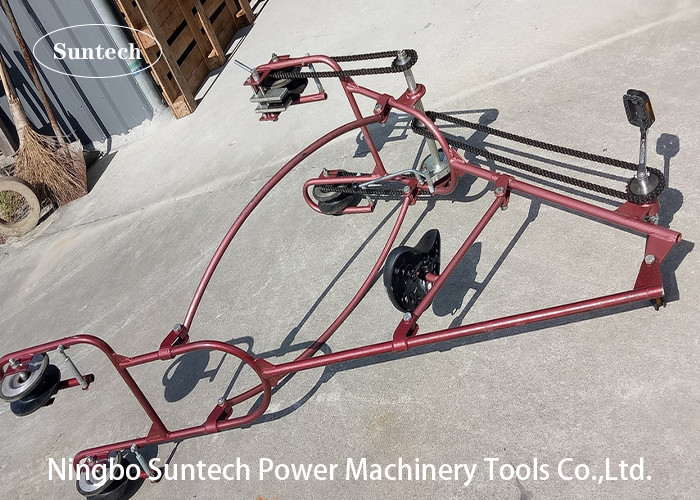

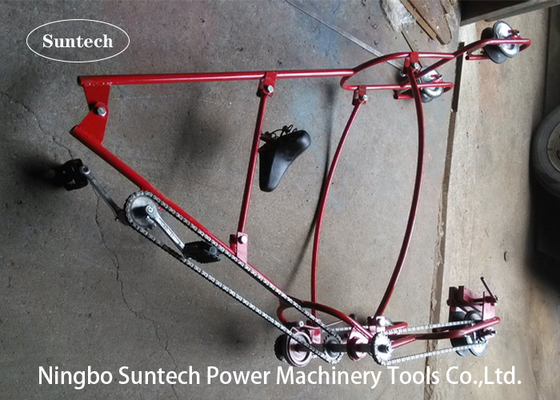

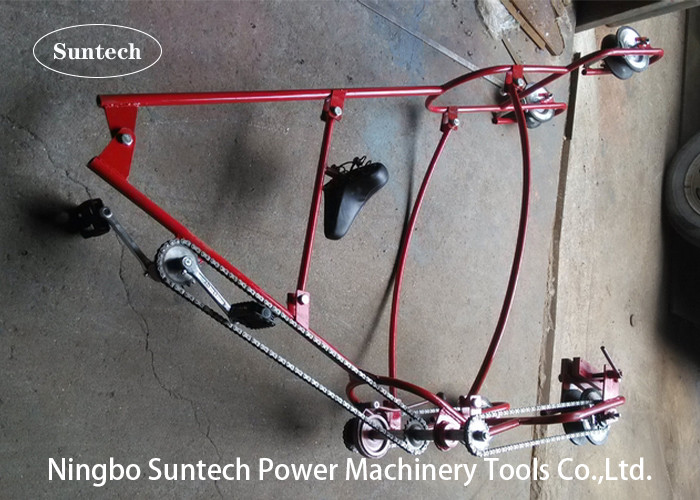

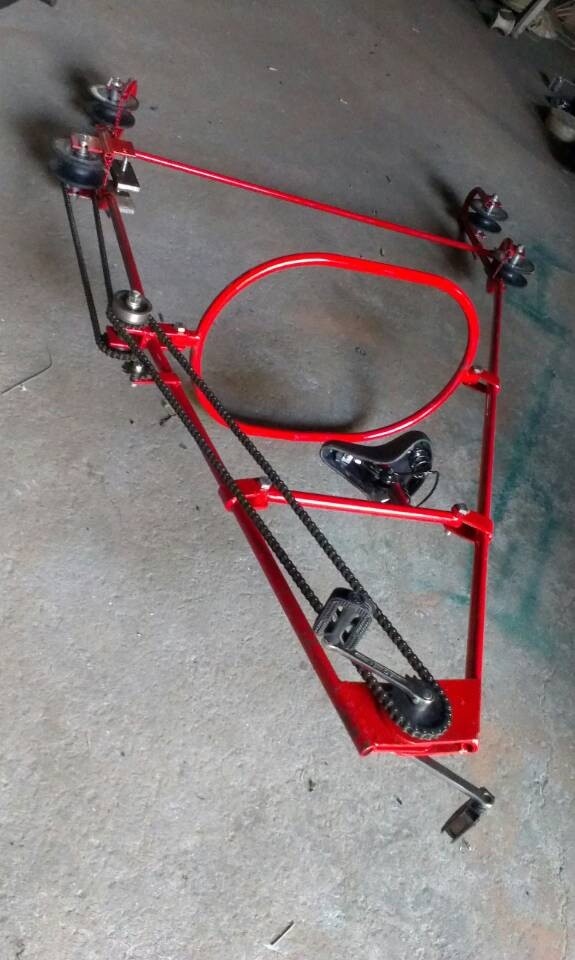

400mm 500mm Overhead Line Inspection Trolleys 1KN

400mm 500mm Overhead Line Inspection Trolleys 1KN

400mm 500mm Overhead Line Inspection Trolleys 1KN

Product Details:

Brand Name:	Newart
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	150pcs
Price:	Get Latest Price
Packaging Details:	Cartons and Pallets
Delivery Time:	35 days after payment
Payment Terms:	T/T, L/C
Supply Ability:	2500pcs/months

Contact Now

Detailed Product Description

Dimension (L X W X H):	Customized	Color:	As Required
Usage:	Installation And Maintenance For Conductor	Material:	Aluminum,Steel
Conductor Distance:	400-500mm	Weight:	34-40kg
Name:	Inspection Trolleys Overhead Line Cart For Two Bundle Conductors	Structure:	Platform
Warranty:	1 Year	Application:	Power Construction
Package:	Wooden Box	Selling Units:	Single Item
High Light:	500mm Overhead Line Inspection Trolleys , 400mm Overhead Line Inspection Trolleys , Overhead Line Inspection Trolleys 1KN

Overhead Lines Cart/bicycles for Two Bundle Conductor Inspection Trolleyctors

Application

Inspection trolleys and overhead line bicycles/carts for four bundle conductors is used to install accessories and overhaul on four split wires,ect.

Notes

Please specify the wire spacing when ordering.

e free replacement.

Technical Data

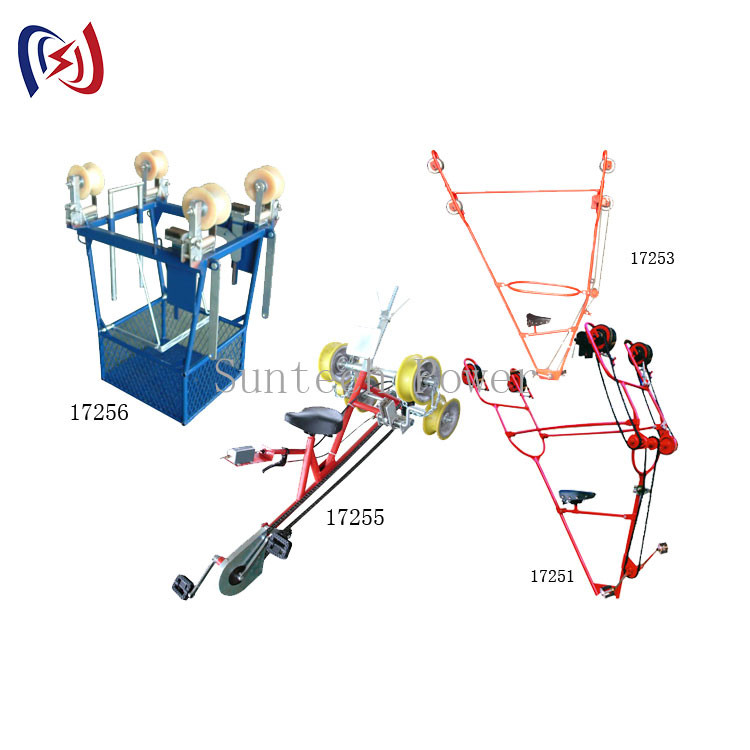

Item number	Model	Rated Load (KN)	Maximum through diameter (MM)	conductors distance (MM)	Weight (KG/M)	Remark
17251	SFS2	1	Φ40	400	34	Horizontal
				450	36
				500	38
17253	SFS400	1	Φ40	400	40	Vertical
17255	FC400/450S	1	Φ60	400-450	34	Horizontal

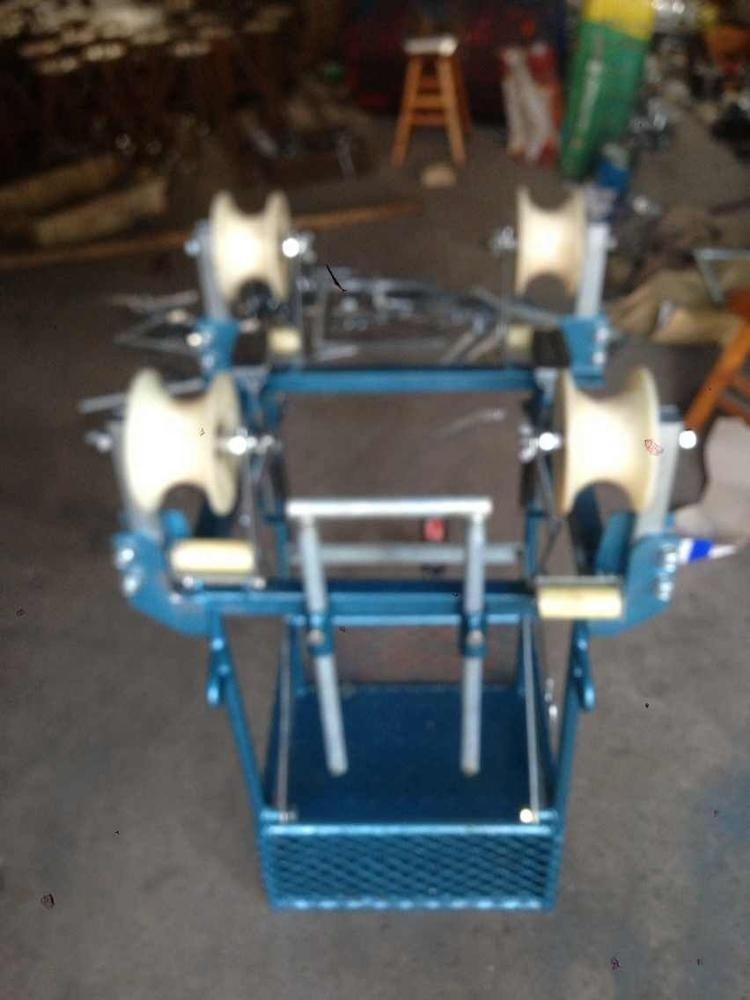

17256	SFS1-400	13	Φ70	400	38	Horizontal
17257	SFS1-450	13	Φ70	450	40	Horizontal
