| Place of Origin: | China(Mainland) |
| Brand Name: | Newart |
| Certification: | ISO |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | White boxes and pallets |
| Delivery Time: | 35days after payment |
| Payment Terms: | 30% T/T as deposit,balance before delivery time |
| Supply Ability: | 5000pcs/month |
| Type: | Insulated | Application: | Underground, ACSR Conductor, Power Construction |
|---|---|---|---|
| Conductor Material: | Aluminum Clad Steel | Conductor Type: | Solid |
| Material: | Steel | Applicable Conductor: | ACSR |
| Size: | 240-1250 | Package Type: | Zoom Sag Scope With Exported Packages |
| High Light: | ACSR Conductor Splicing Sleeves,LGJ240/55 Splicing Sleeves,ACSR Conductor Splicing Sleeves 45mm |
||

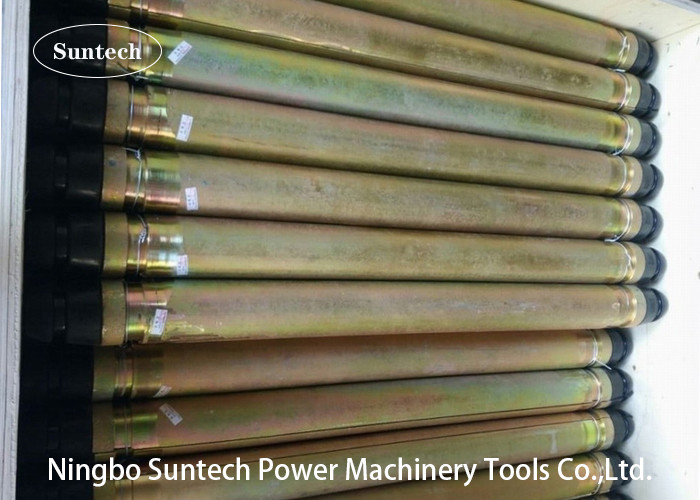

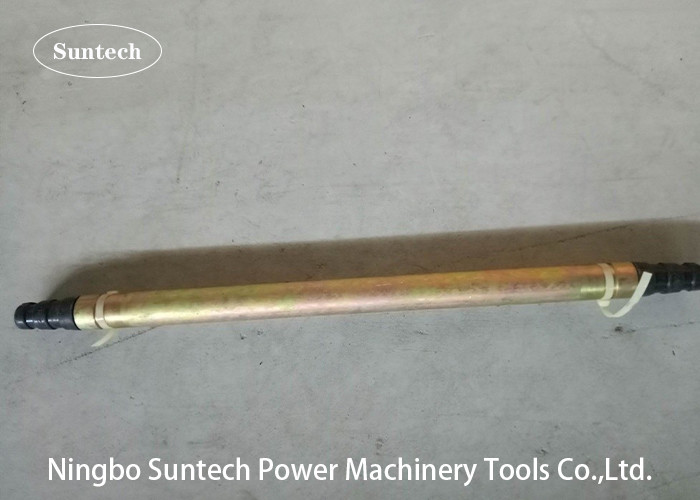

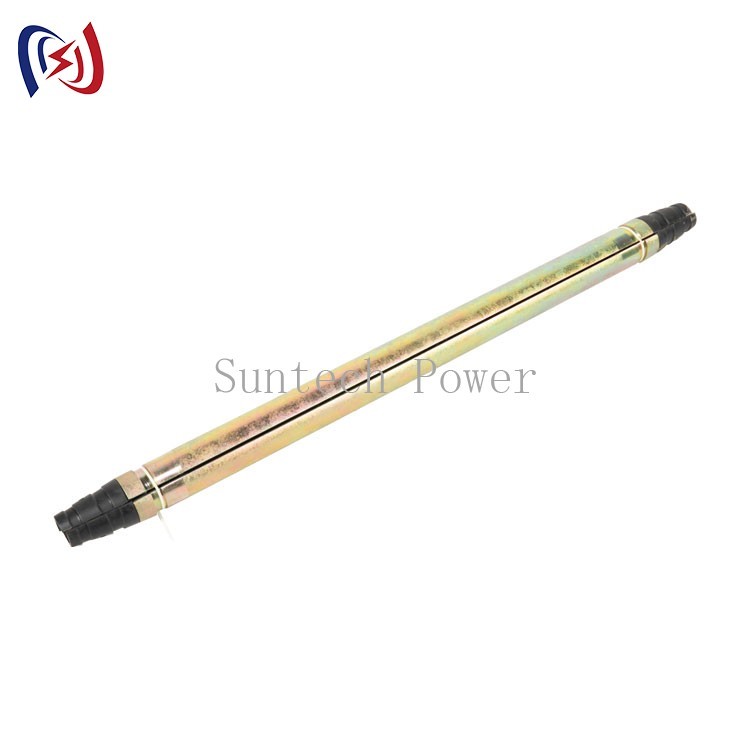

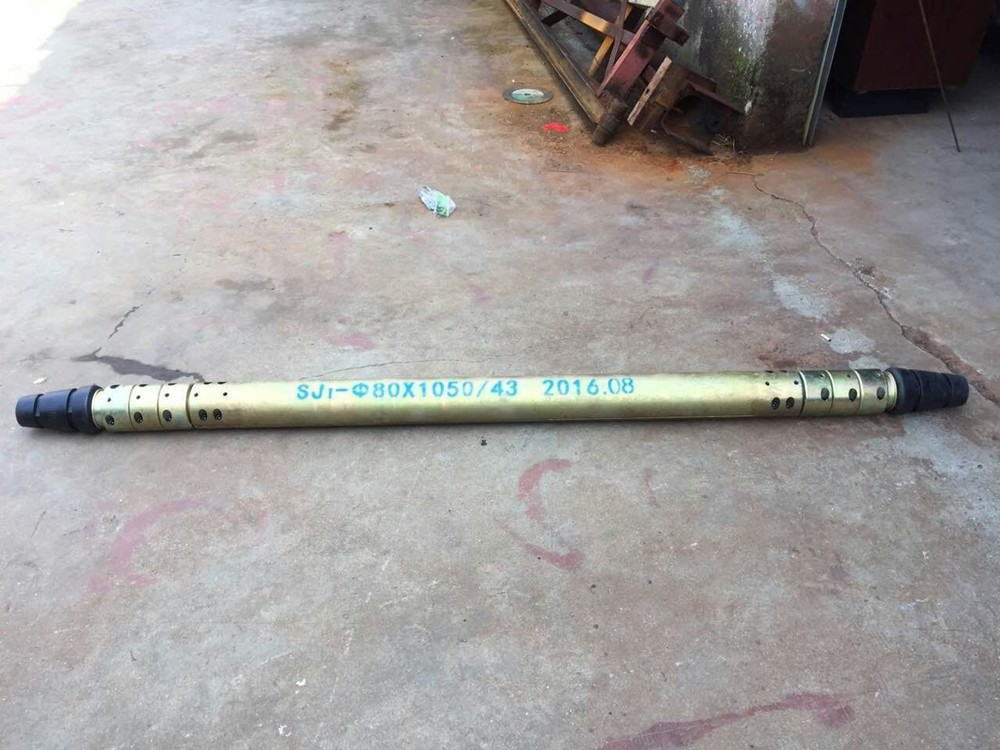

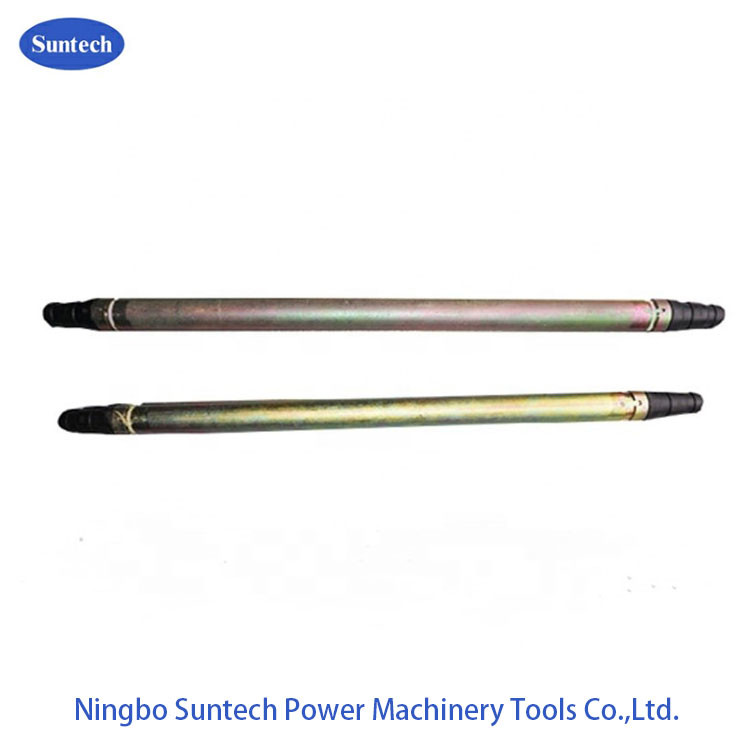

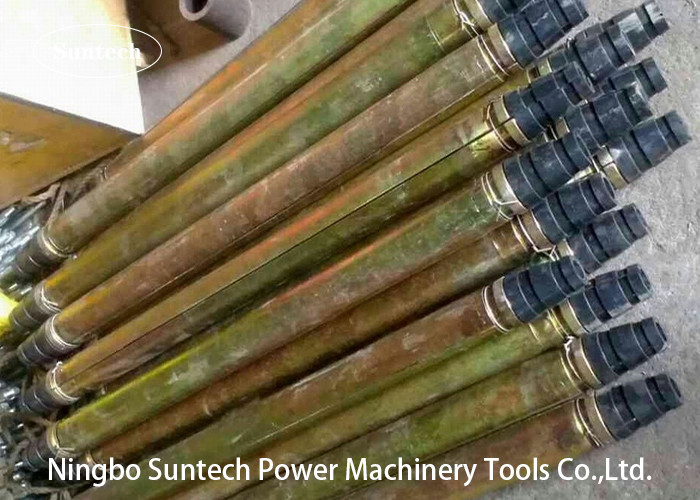

Splice Protection Sleeve Splicing Sleeves for ACSR Conductor
Introduction
Apply to protecting wire pressure tube on ACSR releasing and make it avoid torsion when pass
through pulleys. If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.
Notes
Please writing the dimension of splice in contact if the splicing sleeve differ from standard.
Technical Data
| Item number | Model | Main size(MM) |
Application conductor(MAX) |
|||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | LGJ240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | LGJ300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 665 | LGJ400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | LGJ500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | LGJ630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | LGJ720/55 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | LGJ900/75 |
| 17208 | J1000B | Φ95 | 1400 | Φ75 | 1020 | LGJ1000/80 |
| 17209 | JBZ1250 | Φ114 | 2280 | Φ86 | 1190 | JL1/G2A-1250 |
