Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SA-YQ220 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get lastest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 5-8days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200pcs per month |
| Product Name: | Hydraulic Puller Machine | Item: | 07061 |
|---|---|---|---|
| Max Tension: | 220KN | Usage: | Work Construction |
| Dimensions: | 5.7X2.3X2.6M | Weight: | 8000kg |
| Continuous Tension: | 180KN | Bottom Of Groove Diameter: | 760 |
| Engine Power/Speed: | 243/2100 | ||
| High Light: | Hydraulic Puller Machine SA-YQ220,Diesel Engine Hydraulic Puller,220KN Hydraulic Puller Machine |
||

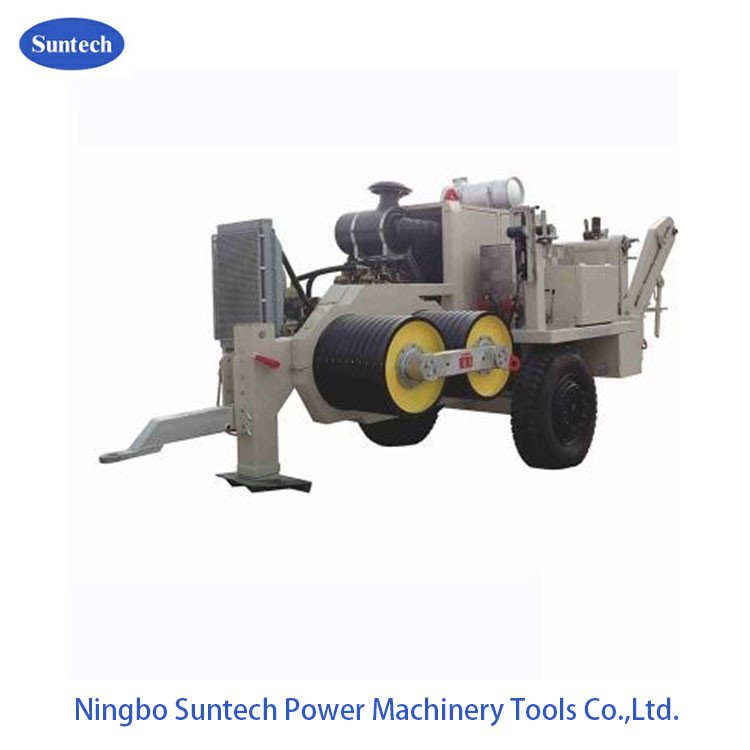

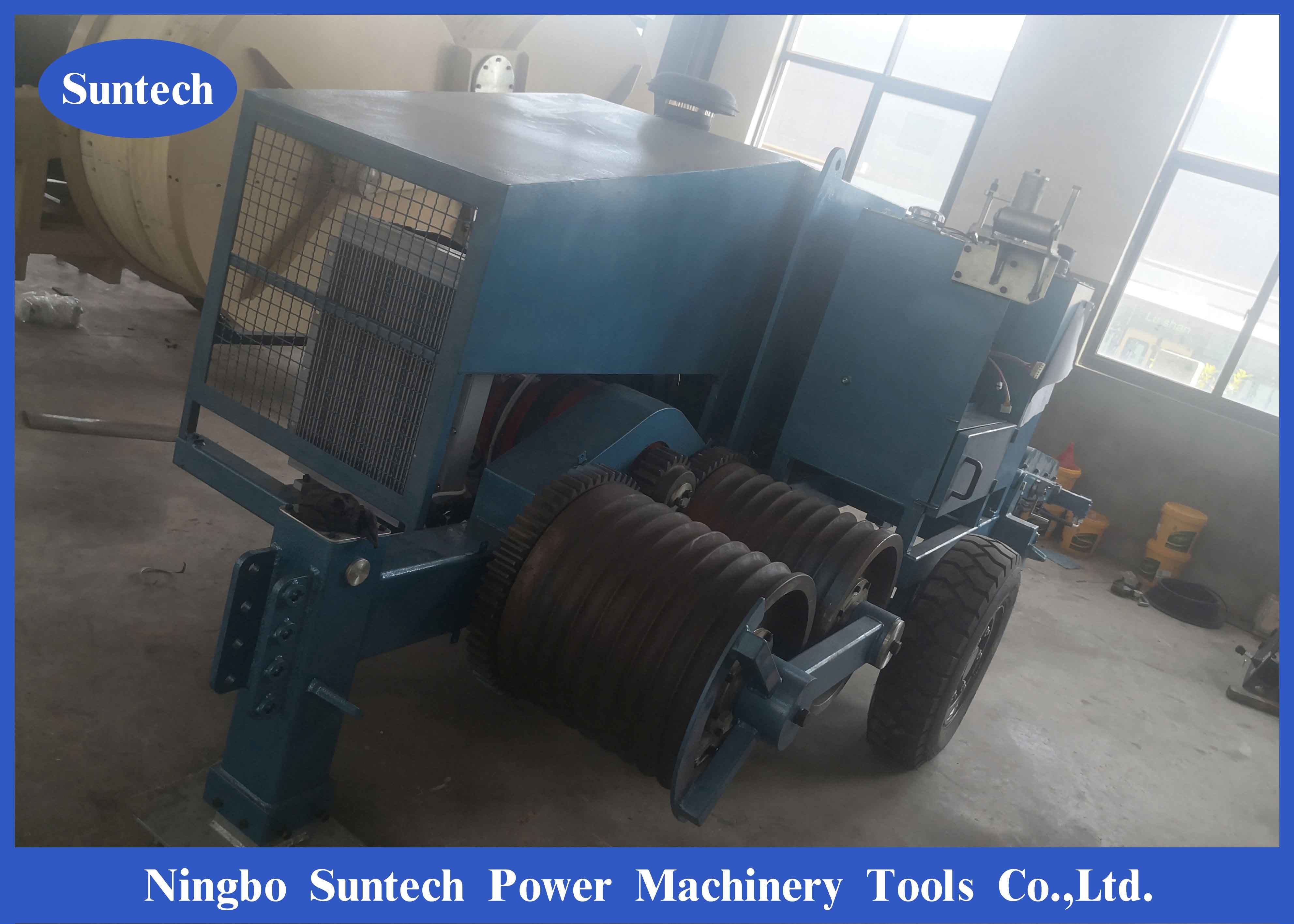

Power Line Tensioner Hydraulic Construction Equipment ,Stringing Puller Tensioner
Main component
1. Engine:Cummins(USA) water cooled engine.
2. Main variable pump and main motor:rexroth(BOSCH).
3,Reducer:RR(Italian).
4.Main hydraulic valve:rexroth(BOSCH)
5. Radiator:AKG
6. Hydraulic instrument:
7. Mating with model GSP1600 drum .
Technical Data
| Maximum linepull (kN) | 220 |
| Continuous linepull (kN) | 180 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | 760 |
| Bullwheel grooves number | 10 |
| Maximum suitable steelrope diameter (mm) | 30 |
| Maximum through connector diameter (mm) | 75 |
| Engine power /speed (kW/rpm) | 243/2100 |
| Dimensions (mm) | 5700X2300X2600 |
| Weight (kg) | 8000 |
Characteristic
1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.
2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.
3. Maximum traction force can be preset, automatic overload protection.
4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.
6. Trailer type structure,rigid scaffold,attractive appearance.
Feature
1. Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2. The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
3. Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4. Attached reel winder with automatically level wind .load and unload conveniently .
