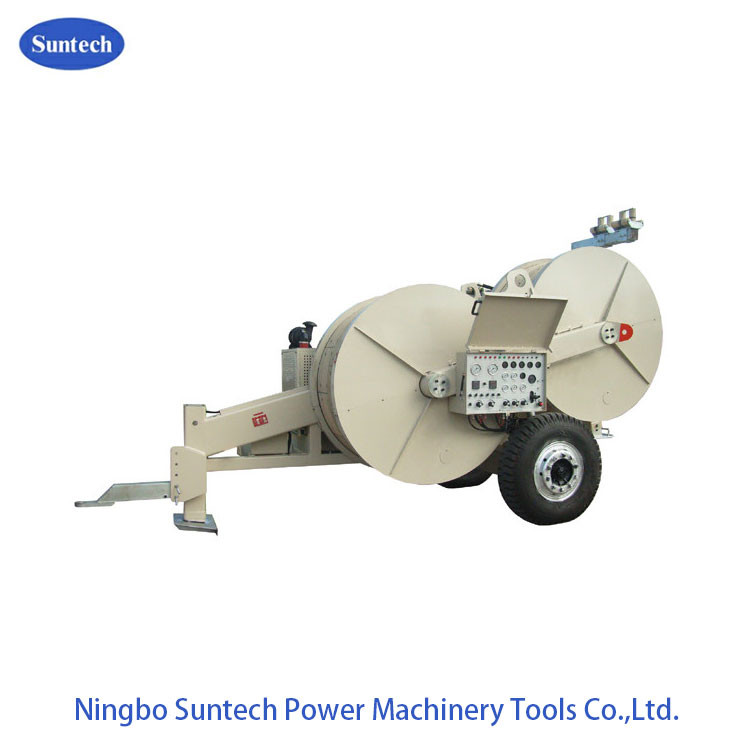

Two Bundles 2X80KN Stringing Tension Equipment , Overhead Line Hydraulic Cable Puller Tensioner

Two Bundles 2X80KN Stringing Tension Equipment , Overhead Line Hydraulic Cable Puller Tensioner

  • Two Bundles 2X80KN Stringing Tension Equipment , Overhead Line Hydraulic Cable Puller Tensioner
Two Bundles 2X80KN Stringing Tension Equipment , Overhead Line Hydraulic Cable Puller Tensioner
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SA-YZ2X80/SA-YZ2X70
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 7-9 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Cable Tensioner Item: 07198,07199
Max Tension: 2X70/1X140 , 2X800/1X160 Usage: Overhead Transmission Line Conductor
Dimensions: 5.3x2.3x2.9 Weight: 8500
Continuous Tension: 2X65/1X130,2X70/1X140 Bottom Of Groove Diameter: 1700
Max Pull Back: 2X63/1X126KN Engine Power/Speed: 82.5/2500 KW/RPM
High Light:

2X80KN Hydraulic Cable Tensioner

,

2X80KN tension stringing equipment

,

1000KV Construction Hydraulic Tensioner

Two Bundles 2X80KN Stringing Tension Equipment , Overhead Line Hydraulic Cable Puller Tensioner



Product Introduction

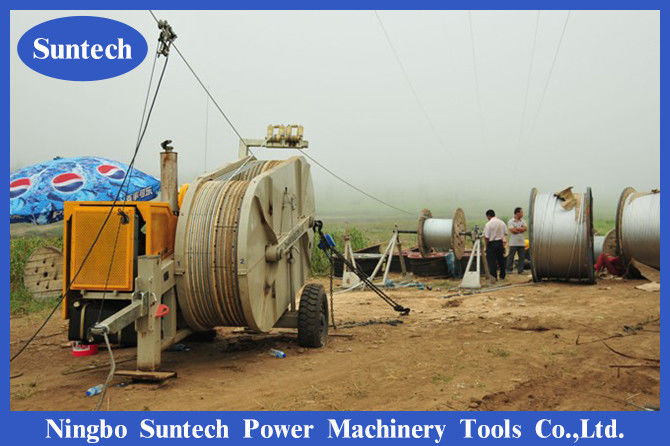

The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.

We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.



Quality Control

We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.



Essential parameter

Maximum Tension(kN) 2×80 or 1×160
Continuous Tension(kN) 2×75 or 1×150
Maximum speed (km/h) 5
Bullwheel bottom of groove diameter (mm) Φ1700
Number of grooves 2×5
Maximum pullback (kN) 2×63or 1×126
Maximum speedback (km/h) 2×1.6
Maximum suitable conductor diameter (mm) Φ45
Engine power /speed (kW/rpm) 82.5/2500
Dimensions (mm)53 5300 ×2300 ×2900
Weight(kg) 8500



Characteristic

1. Bullwheel with wearproof MC nylon lining segments.

2.Infinitely variable tension control and constant tension conductor stringing

3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety

4.attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand .



Main component

1. Engine :Deutz air-cooled diesel engine.

2. main pump and main motor :Rexroth (BOSCH )

3. Reducer : R.R(Italian )

4. Main hydraulic valve :Rexroth (BOSCH )

5. Radiator :AKG

6. Hydraulic instrument :

7. it can choose the Chinese air-cooled engine .the model is SA-YZ2×40B

8. according to needing,it can configure mobile control consoles , it easy for one operator to control 2 machines simultaneously ,which facilitates 4-conductor–stringing operation using two machines .the control consoles order number is :07198/07199
