Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech Power |
| Certification: | ISO9001,CCC |
| Model Number: | ACSR |
| Minimum Order Quantity: | 2000m |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Iro-wooden Drum |
| Delivery Time: | 10-15 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000Ton/Month |
| Name: | Low Voltage Electric Power Cable | Jacket: | None, Bare Conductor |
|---|---|---|---|
| Application: | Construction | Type: | Low / Medium / High Voltage |
| Conductor Material: | Aluminum Conductor | Standard: | IEC61089 |
| High Light: | Bare Overhead Conductor Cable,High Voltage Overhead Aluminum Wire,Bare ACSR Conductor Wire |
||
This bare conductor is widely used in the overhead power disturbution system all around the world , and it is one of the main products for forming electronic electrified wire network.

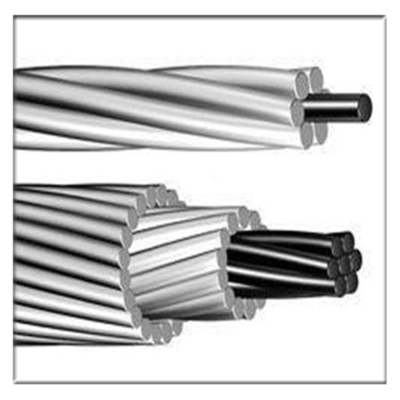

as the picture shows , there are so many types.
The specification about acsr conductor
| Conductor size | Alloy area | Stranding and wire diameter | Weight | Breaking load | DC Resistance at 20 ℃ | Current Rating | |
|
mm2
|
mm2
|
No.
|
mm | Kg/km | KN | Ohm/km | A |
| 16 | 15.89 | 7 | 1.7 | 43.5 | 4.44 | 2.091 | 105 |
| 25 | 24.25 | 7 | 2.1 | 66.3 | 6.77 | 1.3703 | 135 |
| 35 | 34.36 | 7 | 2.5 | 94.0 | 9.6 | 0.9669 | 170 |
| 50 | 49.48 | 7 | 3 | 135.3 | 13.82 | 0.6714 | 210 |
| 50 | 48.35 | 19 | 1.8 | 132.9 | 13.5 | 0.6905 | 210 |
| 70 | 65.81 | 19 | 2.1 | 180.9 | 18.38 | 0.5073 | 255 |
| 95 | 93.27 | 19 | 2.5 | 256.3 | 26.05 | 0.3579 | 320 |
| 120 | 116.99 | 19 | 2.8 | 321.5 | 32.68 | 0.2854 | 365 |
| 150 | 188.96 | 37 | 2.55 | 521.4 | 41.09 | 0.2274 | 425 |
| 185 | 181.62 | 37 | 2.5 | 501.2 | 50.73 | 0.1842 | 490 |
| 240 | 242.54 | 61 | 2.25 | 669.3 | 67.74 | 0.1383 | 585 |
| 300 | 299.43 | 61 | 2.5 | 826.3 | 83.63 | 0.112 | 670 |
| 400 | 400.14 | 61 | 2.89 | 1104.2 | 111.76 | 0.0838 | 810 |
| 500 | 499.83 | 61 | 3.23 | 1379.2 | 139.6 | 0.06709 | 930 |
| 625 | 626.20 | 91 | 2.96 | 1727.9 | 174.9 | 0.054 | 1075 |
| 800 | 802.09 | 91 | 3.35 | 2213.3 | 224.02 | 0.0418 | 1255 |
| 1000 | 999.71 | 91 | 3.74 | 2758.6 | 279.22 | 0.0335 | 1450 |
Application of acsr bare conductor:
Packaging Details : wooden drums or in coils.
Port : any port in China
Lead Time : according the order 10-20 working days.
Our main products include PVC insulated cable&wire, 0.6/1~26/35KV XLPE insulated power cables, control cables , overhead insulated cables, General rubber sheath flexible cable.
our certification
before sales: any questions can resolve for you , confirm all details with you.
during sales: prepare the high quality goods for you ,
after sales: provide technical support , install technical instruction.
Contact Person: Peter
Tel: 86-13958364836
