Hard Draw Aluminum Overhead Conductor 100mm2 AACSR ACAR OPGW 1350

Hard Draw Aluminum Overhead Conductor 100mm2 AACSR ACAR OPGW 1350

  • Hard Draw Aluminum Overhead Conductor 100mm2 AACSR ACAR OPGW 1350
  • Hard Draw Aluminum Overhead Conductor 100mm2 AACSR ACAR OPGW 1350
Hard Draw Aluminum Overhead Conductor 100mm2 AACSR ACAR OPGW 1350
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: AACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiation
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 5-7 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000Ton/Month
Contact Now
Detailed Product Description
Name: Overhead Conductor AACSR Type: Low/Medium/High Voltage
Jacket: Bare Application: Overhead, Power Station
Standard: BS IEC ASTM DIN Material: Aluminum,Aluminum Alloy
High Light:

Hard Draw Aluminum Overhead Cable

,

100mm2 AAC All Aluminum Conductor

,

Overhead Bare Aluminum Conductor

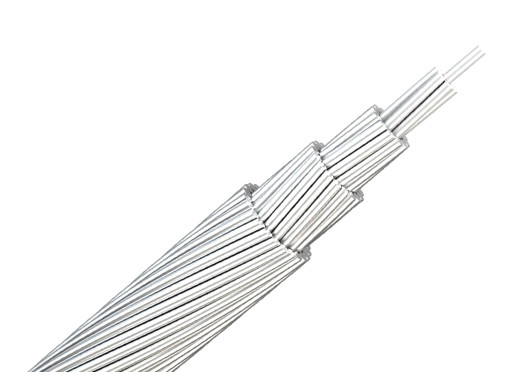

Overhead Conductor 100mm2 AACSR, ACAR, OPGW 1350 Hard Draw Aluminum


1.Brief Description about ACSR Conductor:

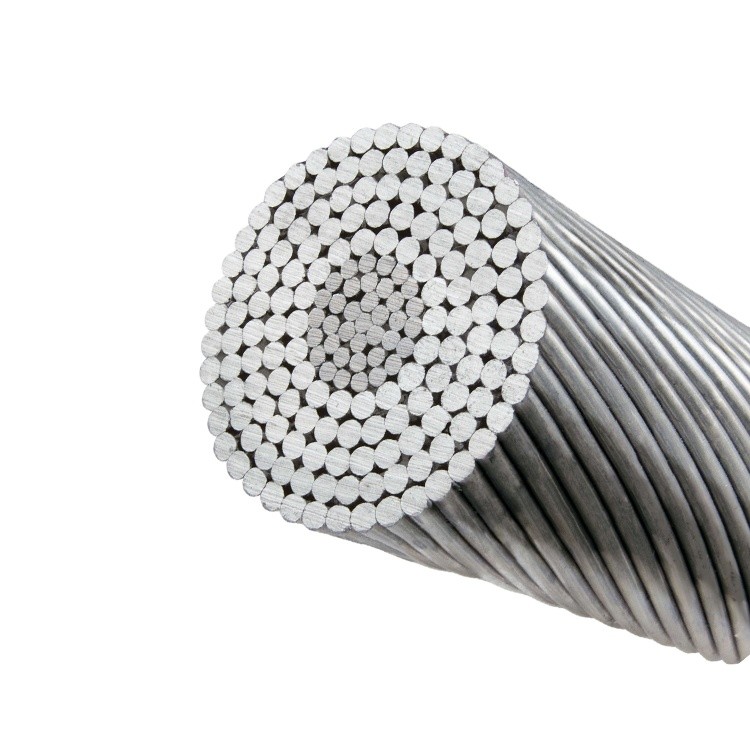

ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.



2.Application about ACSR Conductor:

ACSR conductor have been widely used in power transmission lines with various voltage.

Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.



3.Standard about ACSR Conductor:

We can supply this conductor according to different recognized standards,

such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110,

and customers’ special specifications also can be satisfied.



4.Package about ACSR Conductor:

In coils, wooden drums, steel drums or steel-wooden drums.

We could producing according to the customers' requirements.



5.Material about ACSR Conductor:

Conductor:AL1350 pure aluminum

Steel core:G1A or G2A steel wire



Standard
Aluminm area (sqmm)
The number of single wire and Dia.(mm)
Calculated Section Area
Approx. Outer DiameterOuter (mm)
The Approx. Weight Per Kio.(kg/km)
Calculated D.C. Resistance at 20 degree (ohm/km)
Calculated Breaking
Load(KN)
Delivery length (meter/
Drum)
25
7/2.34
30.10
7.02
82
1.094
8.44
1500
30
7/2.54
35.47
7.62
97
0.9281
9.94
1500
40
7/2.95
47.84
8.85
131
0.8880
13.40
1500
50
7/3.30
59.87
9.90
164
0.5498
16.80
1500
100
7/4.65
118.9
13.95
325
0.2789
33.30
1500
150
19/3.48
180.7
17.40
497
0.1830
50.65
1500
175
19/3.76
211.0
18.80
580
0.1568
59.10
1500
300
37/3.53
332.1
24.71
997
0.09155
101.5
1500
