Name: AAAC Bare Aluminum Conductor 50mm2 All Alloy Aluminum Wire Cable
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: AAAC
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: AAAC Bare 50mm2 Conductor All Alloy Aluminum Wire Cable

Type: Standard

Insulation Material: None Insulation

Application: Power Transmission

Standard: ACSR Conductor ASTM B232 Standard

Material: Al & Al Alloy, Al & Al Alloy

Highlight:

All Alloy Bare Overhead Conductors

50mm2 Bare Overhead Conductors

Bare All Aluminium Conductor

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO9001,CCC

Model Number: AAAC

Payment & Shipping Terms

Packaging Details: Exported Wooden Case or Containers

Delivery Time: 5-7 workdays

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1500000m/month

Gallery

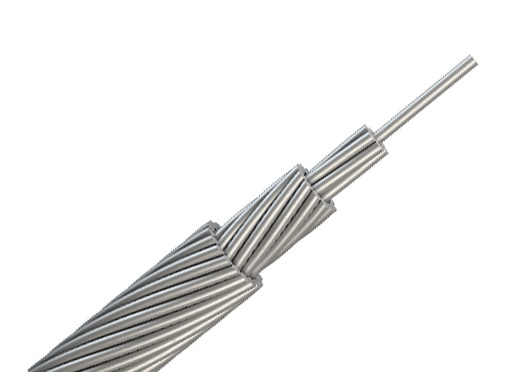

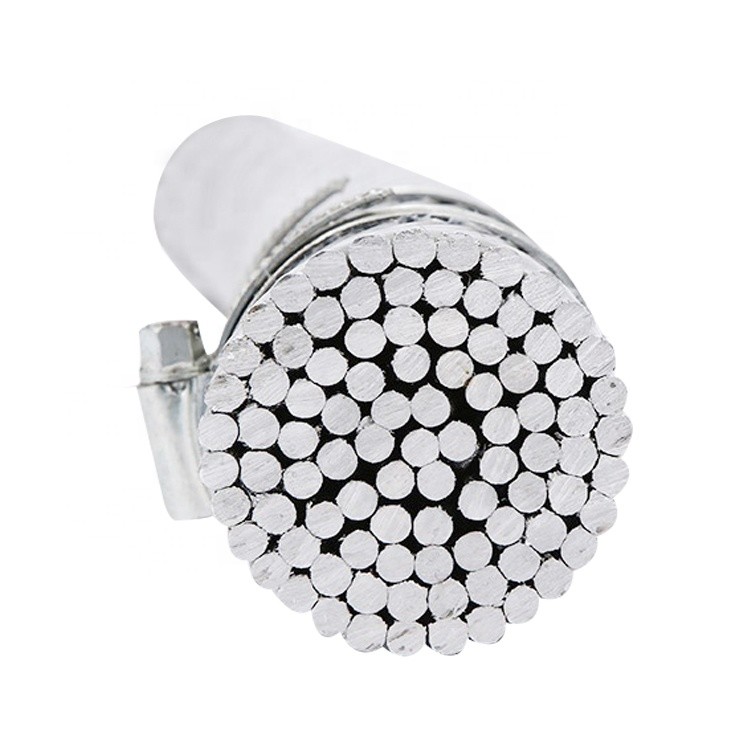

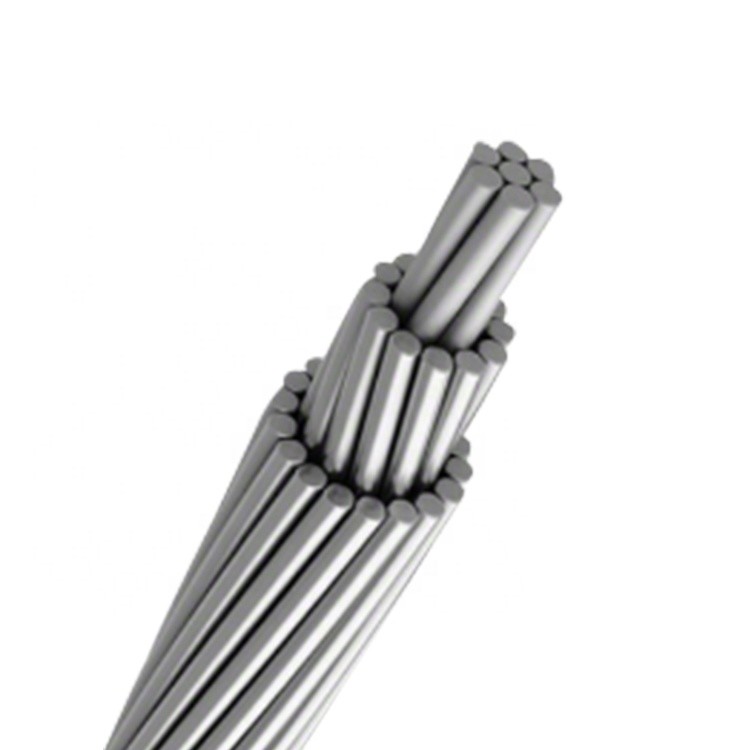

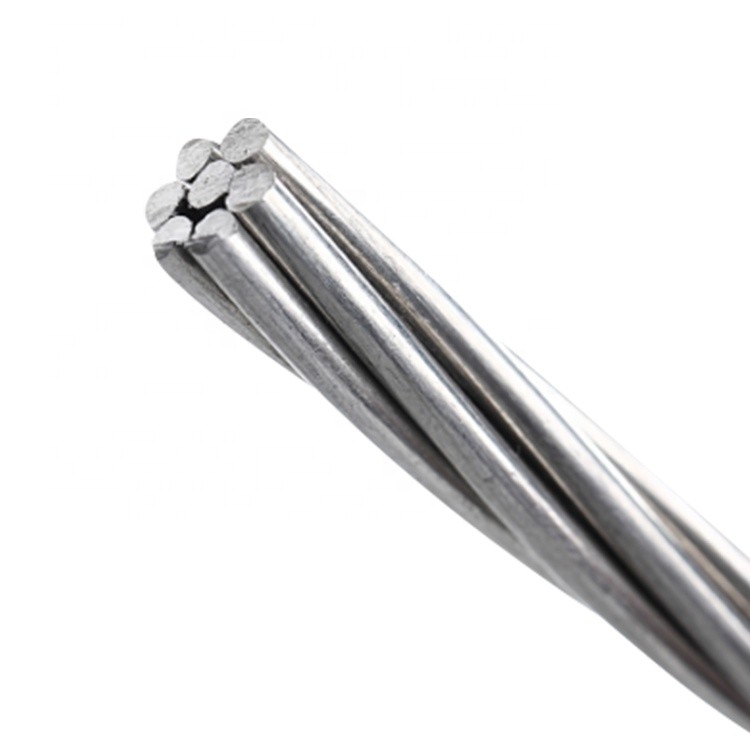

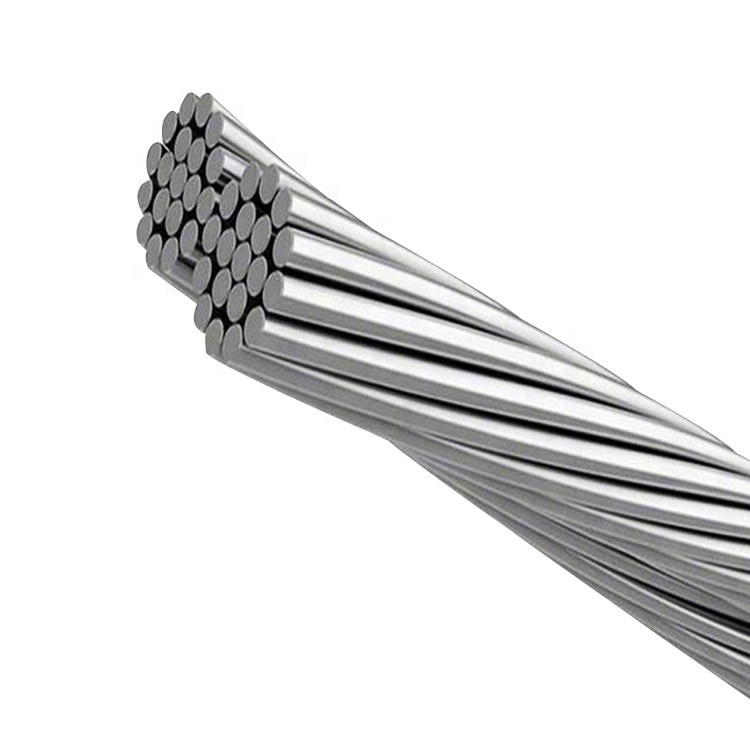

AAAC Bare Aluminum Conductor 50mm2 All Alloy Aluminum Wire Cable

Product Description

AAAC Bare 50mm2 Conductor All Alloy Aluminum Wire Cable

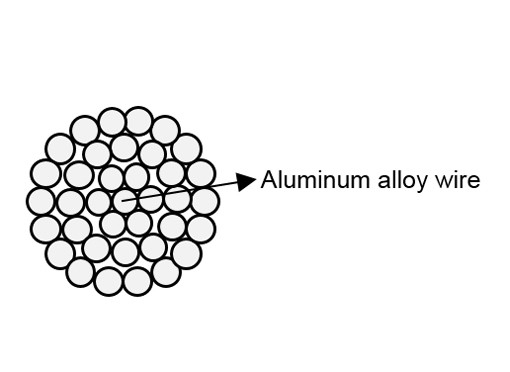

All Aluminium Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires (6201-T81)available in single layer and multi-layer constructions. As compared to a conventional ACSR conductor, the lighter weight,comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.

Conductor size (mcm)	Number and diameter of wire (mm)	Cross-sectional Area (mm2)	Overall diameter (mm)	Weight (kg/km)	Calculated Breaking load		Calculated D.C. resistance At 20℃ 20℃ (ohm/km)
Conductor size (mcm)	Number and diameter of wire (mm)	Cross-sectional Area (mm2)	Overall diameter (mm)	Weight (kg/km)	kgf	kN	Calculated D.C. resistance At 20℃ 20℃ (ohm/km)
66.36	7/2.47	33.54	7.41	92	1087	10.66	0.9987
77.47	7/2.67	39.19	8.01	108	1270	12.45	0.8547
105.60	7/3.12	53.52	9.36	148	1734	17.00	0.6259
123.30	7/3.37	62.44	10.01	172	2023	19.84	0.5364
133.10	7/3.50	67.35	10.50	186	2091	20.51	0.4973
155.40	7/3.78	78.55	11.34	217	2439	23.92	0.4264
167.80	7/3.93	84.91	11.79	234	2636	25.85	0.3945
195.70	7/4.25	99.30	12.75	274	3083	30.23	0.3373
211.60	7/4.42	107.4	13.26	296	3335	32.71	0.3119
246.90	7/4.77	125.1	14.31	345	3884	38.09	0.2678
394.50	19/3.66	199.9	18.30	551	6012	58.96	0.1676
400.00	19/3.69	203.2	18.45	560	6112	59.94	0.1648
450.00	19/3.91	228.1	19.55	629	6861	67.28	0.1468
465.40	19/3.98	236.4	19.90	652	7110	69.73	0.1417
500.00	19/4.12	253.3	20.60	698	9619	74.72	0.1322
550.00	37/3.10	279.3	21.70	770	8577	84.11	0.1199
559.00	19/4.36	283.7	21.80	782	8533	83.64	0.1181
600.00	37/3.23	303.2	22.61	836	9311	91.31	0.1105
650.00	37/3.37	330.0	23.59	910	10134	99.38	0.1015
652.40	19/4.71	331.0	23.55	913	9956	97.64	0.1012
700.00	37/3.49	354.0	24.43	976	10418	102.2	0.09462
740.00	37/3.59	374.5	25.13	1033	11022	108.1	0.08944
750.00	37/3.62	380.8	25.34	1050	11207	109.9	0.08796
800.00	37/3.73	404.3	26.11	1115	11899	116.7	0.08285
900.00	37/3.96	455.7	27.72	1256	13411	131.5	0.07350
927.20	37/4.02	469.6	28.14	1295	13821	135.5	0.07133
1000.00	37/4.18	507.7	29.26	1400	14942	146.5	0.06598
