ASTM B232 Aluminum Conductors Steel Reinforced Clad

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	Suntech
Certification:	ISO9001,CCC
Model Number:	ACSR

Payment & Shipping Terms:

Minimum Order Quantity:	1000m
Price:	Negotiation
Packaging Details:	Exported Wooden Case or Containers
Delivery Time:	5-7 workdays
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1500000m/month

Contact Now

Detailed Product Description

Name:	Aluminum Conductors Clad Steel Reinforced	Type:	Low Voltage/ Medium Voltage/High Voltage
Insulation Material:	None Insulation	Application:	Overhead
Standard:	ACSR Conductor ASTM B232 Standard	Material:	Aluminum And Steel
High Light:	Aluminium Clad Steel Wire , ASTM B232 Aluminium Bare Conductor , Clad Aluminum Conductor Steel Reinforced

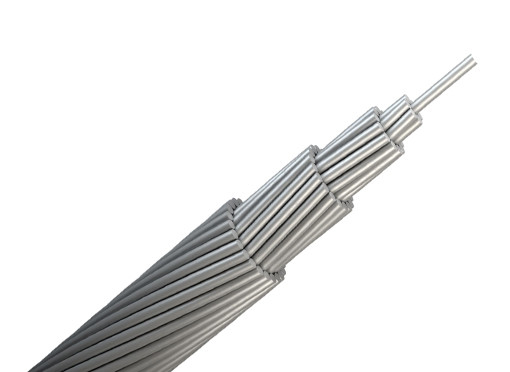

ACSR/AW Conductor Aluminum Conductors Aluminum Clad Steel Reinforced

High caborn galvanised steel wire for ACSR, stay wire, Guy wire, overhead earth wire. Hengxing- the ACSR core wire supplier, the largest manufactuer in China. Manufaturer. 26 years. Factory price. Brands: Suntech, ACSR core wire, IEC888.

ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

CONSTRUCTION

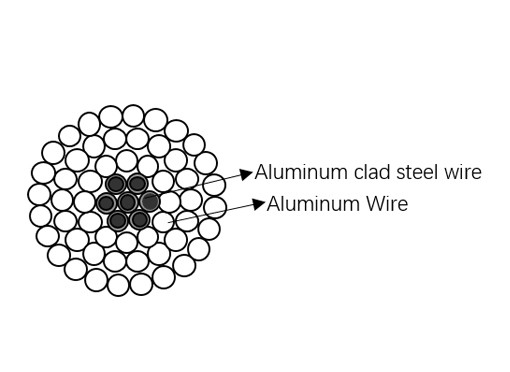

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

ADDITIONAL STANDARDS

ASTM B-232: Concentric Lay Aluminum Conductors

ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes

ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR

ACSR conductor or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary disribution cable. ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures because of its dependability and strength to weight ratio.

APPLICATION

This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR Conductor Technical characteristics / U.S.A Sizes - ASTM B232

Typical Parameters (Trapezoid structure)

Code	Structure			Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	Current capacity
	Al	Steel		Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	TACIR		ZTACIR
	Nos./mm			mm2	mm	kN	Ω/km	Kg/km	A
160/40	18/3.37		7/2.65	199.16	17.04	65.06	0.1759	730	771	957
200/45	17/3.87		7/2.85	244.62	18.87	76.87	0.1412	883	890	1105
200/50	17/3.87		7/2.95	247.81	19.01	80.39	0.1409	906	892	1110
250/45	18/4.20		7/2.85	294.04	20.64	82.64	0.1141	1019	1017	1268
250/40	18/4.13		7/2.75	290.96	20.51	81.12	0.1143	996	1014	1264
240/55	18/4.13		7/3.20	297.43	20.82	93.12	0.1169	1083	1007	1138
240/50	18/4.71		7/3.00	290.62	20.55	88.13	0.1157	1032	1000	1131
315/55	18/4.71		7/3.20	396.92	23.15	104.06	0.0907	1266	1182	1479
315/50	18/4.71		7/3.00	363.10	22.91	97.20	0.0910	1232	1176	1471
330/60	18/4.81		7/3.30	386.95	23.68	109.70	0.0869	1329	1216	1522
350/55	20/4.71		7/3.20	404.77	24.19	109.33	0.0819	1379	1262	1580
