ACSR Aluminum Conductor Steel Reinforced For Bare Overhead Transmission

1000m
MOQ
Negotiation
Price
ACSR Aluminum Conductor Steel Reinforced For Bare Overhead Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Aluminum Conductor Steel Reinforced
Model: ACSR Conductor ASTM B232 Standard
Insulation Material: None Insulation
Application: Overhead
Standard: ASTM B232 Standard
Material: Aluminum And Steel
Highlight:

Bare Overhead Transmission ACSR Conductor

,

Aluminum Conductor Steel Reinforced

,

ASTM B232 Acsr Aluminium Conductor
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Suntech
Certification: ISO9001
Model Number: ACSR
Payment & Shipping Terms
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 5-7 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500000m/month
Product Description

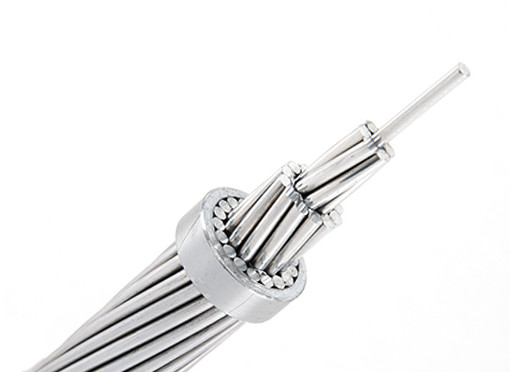

Aluminum Conductor Steel Reinforced ACSR Conductor



ACSR conductor or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary disribution cable. ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures because of its dependability and strength to weight ratio.



APPLICATION
This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

CONSTRUCTION

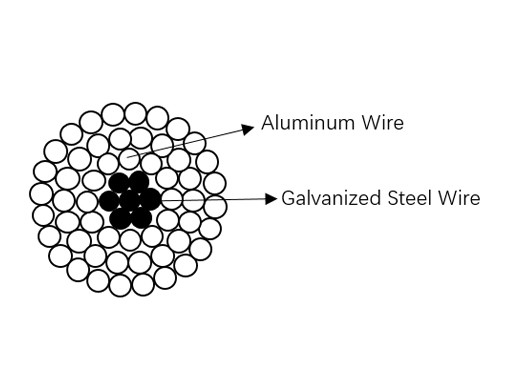

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.
ADDITIONAL STANDARDS
ASTM B-232: Concentric Lay Aluminum Conductors
ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR



ACSR Conductor Technical characteristics / U.S.A Sizes - ASTM B232


Typical Parameters (Trapezoid structure)

Code Structure Areas Diameter Breaking load

DC

resistance at 20℃

 Weight Current capacity
Al Steel TACIR ZTACIR
Nos./mm mm2 mm kN Ω/km Kg/km A
160/40 18/3.37 7/2.65 199.16 17.04 65.06 0.1759 730 771 957
200/45 17/3.87 7/2.85 244.62 18.87 76.87 0.1412 883 890 1105
200/50 17/3.87 7/2.95 247.81 19.01 80.39 0.1409 906 892 1110
250/45 18/4.20 7/2.85 294.04 20.64 82.64 0.1141 1019 1017 1268
250/40 18/4.13 7/2.75 290.96 20.51 81.12 0.1143 996 1014 1264
240/55 18/4.13 7/3.20 297.43 20.82 93.12 0.1169 1083 1007 1138
240/50 18/4.71 7/3.00 290.62 20.55 88.13 0.1157 1032 1000 1131
315/55 18/4.71 7/3.20 396.92 23.15 104.06 0.0907 1266 1182 1479
315/50 18/4.71 7/3.00 363.10 22.91 97.20 0.0910 1232 1176 1471
330/60 18/4.81 7/3.30 386.95 23.68 109.70 0.0869 1329 1216 1522
350/55 20/4.71 7/3.20 404.77 24.19 109.33 0.0819 1379 1262 1580
