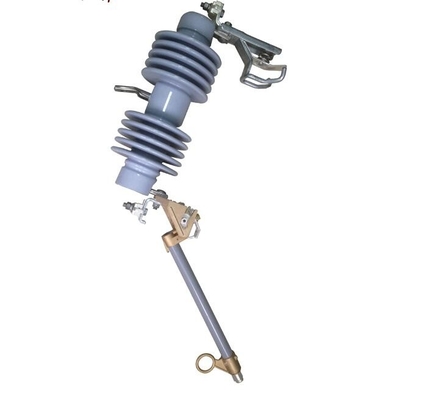

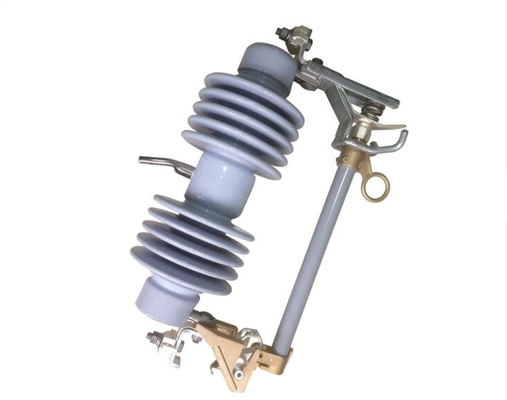

Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A

Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A

  • Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A
  • Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A
Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SCO24
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Box with Pattets For Shipping
Delivery Time: 7 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS Per Month
Contact Now
Detailed Product Description
Usage: High Voltage Safety Standards:: IEC60282-2
Breaking Capacity: High Name: Polymer Expulsion Drop Out Fuse
Application: Construction Site Material: Drop Fuse Cutout
High Light:

100A High Voltage Fuse Cutout

,

High Voltage Expulsion Dropout Fuse Cutout

,

100A Dropout Fuse Cutout

Drop-out Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A Cut Out



Overview:

Drop out fuses and load-drop fuses are outdoor high voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. used as a short circuit of the transformer and the line, overload protection and split load current.



The drop fuse is composed of two parts:

An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.

It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.



Product use environment:

1. The ambient temperature is not higher than +40 C, not lower than-40 C

2. The altitude does not exceed 3000m

3. The maximum wind speed does not exceed 35m/s

4. The earthquake intensity does not exceed 8 degrees



Drop-out Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A Cut Out

Type Unit STCO-24/100 STCO-24/200
Rated Voltage KV 24 54
Rated Current A 100 200
Breaking Current KA 8 10
Impulse Voltage (BIL) KV 150 150
Power Frequency withstand Voltage KV 65 65
Creepage Distance MM 480 480
Weight KGS 11.5 12
Dimension CM 51.5x35x17.5 51.5x35x17.5

Drop-out Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A Cut Out
