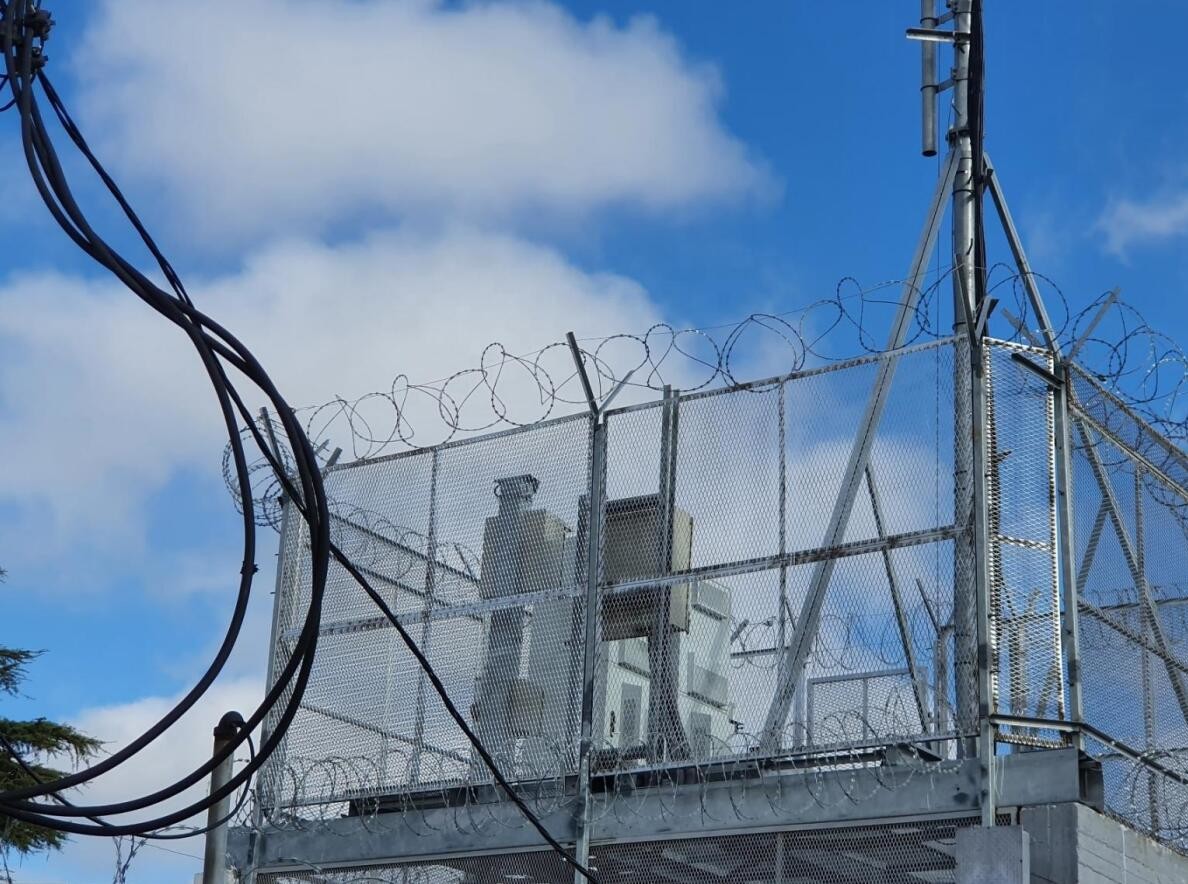

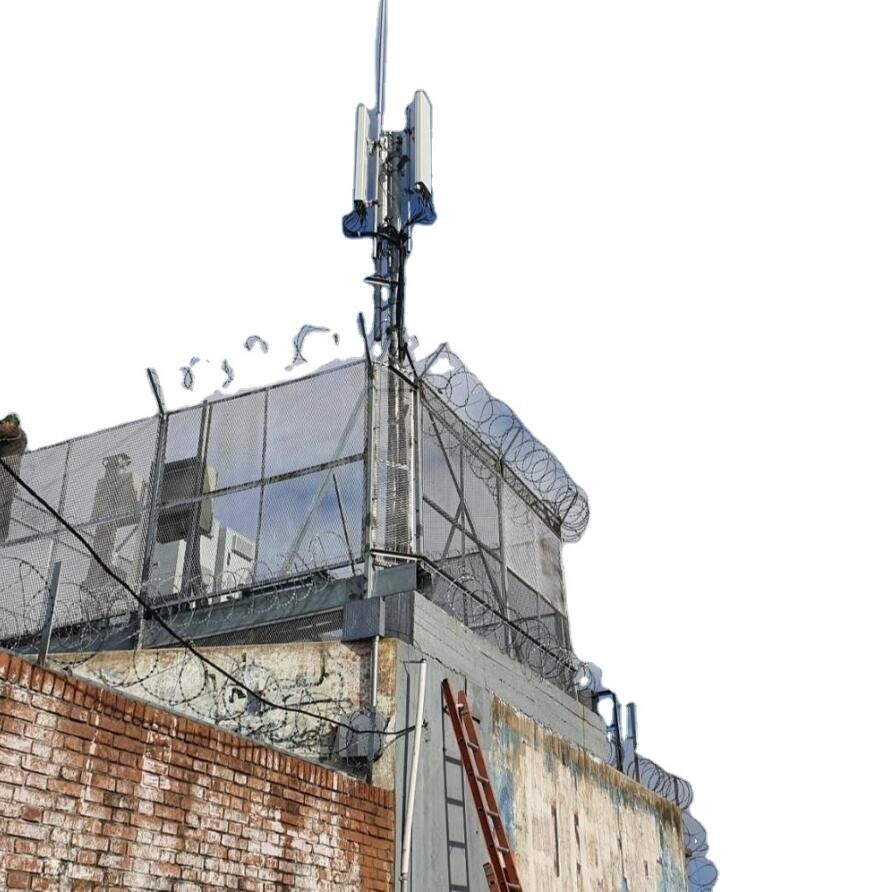

Hot Dip Galvanized Rooftop Antenna Mast Tower Pole Steel Q235 Q345

Product Details:

Place of Origin:	China
Brand Name:	Suntech Tower
Certification:	ISO, CE
Model Number:	Steel Rooftop Tower

Payment & Shipping Terms:

Minimum Order Quantity:	1 Tower
Price:	Get the newest price
Packaging Details:	Exported Containers
Delivery Time:	30-35 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	80000 Metric Ton/Metric Tons Per Year

Contact Now

Detailed Product Description

Product Name:	Steel Rooftop Tower	Material:	Steel Q235,Q345
Application:	Telecom Site Construction	Surface:	Hot Dip Galvanised
Lifetime:	20-30 Years	Wind Speed:	110~160km/h_3 Second Gust
High Light:	Hot Dip Galvanized Rooftop Tower , Steel Q345 Antenna Mast Tower , Steel Q235 Antenna Mast Tower

Hot Dip Galvanized Rooftop Tower Antenna Mast Tower Pole For Telecommunication Communication Projects

Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line and telecommunication towers in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.

Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the

connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

Quick Detail:

4 legged square telecom lattice angular tower feature:

Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base

station; simple structure, easy processing, convenient for factory production. Generally high tower type,

suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.

Applicable to rural and suburban area which is open, lower area on the appearance requirements.

Telecommunication Tower- Goods description and major parameters

No.	Description	Detailed Specification and Major design Parameters
1	Design Code	ANSI/TIA222G, European Standard and others
2	Design Loading	1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4	Structure Classification	II
5	Hot-dip galvanization	ISO 1461 2009, ASTM A123
6	Steel Grade	1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7	Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts
8	Foundation	50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9	Tower Type	1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles
10	Warranty	1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years
11	Return Period	50 Years
12	Accessories	1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients
