|Place of Origin:||China|
|Brand Name:||Suntech Tower|
|Model Number:||Self-Support Telecom Tower|
|Minimum Order Quantity:||1 Tower|
|Packaging Details:||Exported Containers|
|Delivery Time:||30-35 days after payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||50000 Metric Ton/Metric Tons Per Year|
|Product Name:||Self-Support Telecom Tower||Material:||Steel Q345,Q235|
|Height:||10-80M||Surface Treatment:||Hot Dip Galvanized|
|Wind Speed:||110~160km/h_3 Second Gust||Application:||Telecom Site Construction|
Quadrilateral Steel Lattice Tower,
Q235 Steel Lattice Tower,
Quadrilateral Mobile Tower

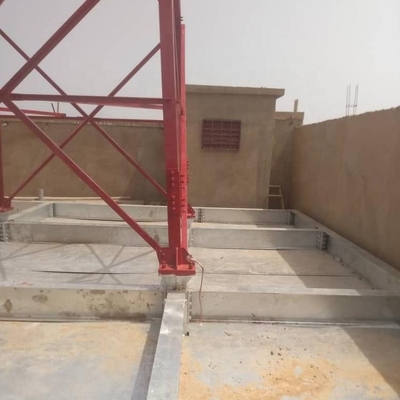

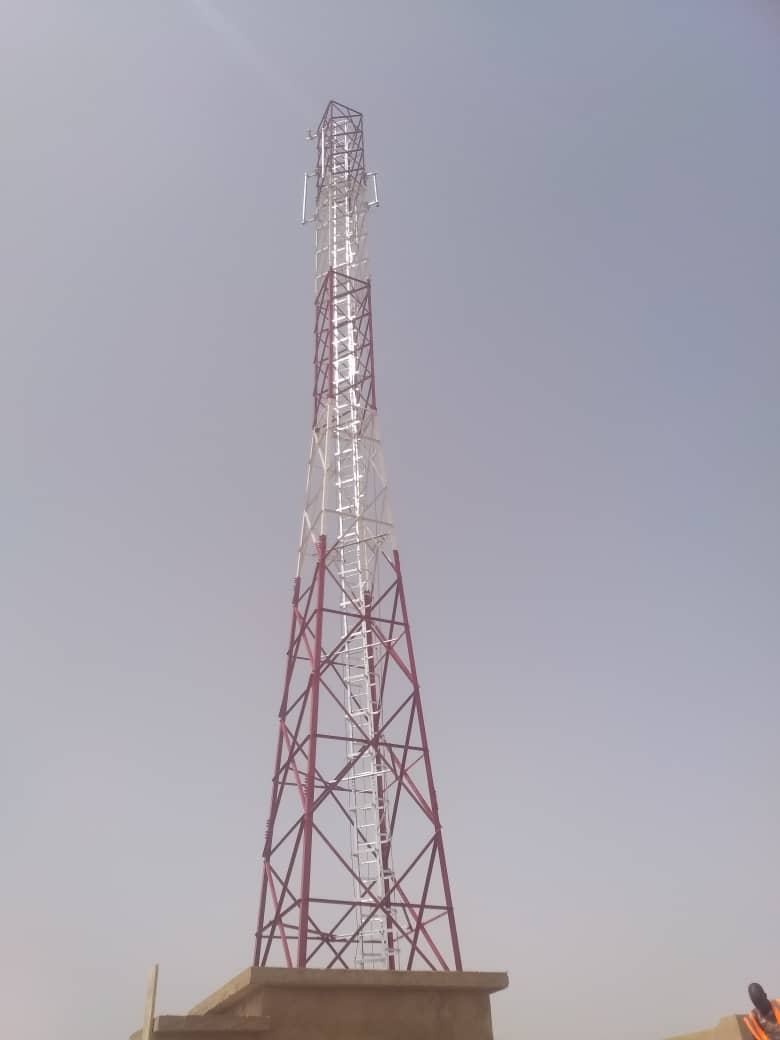

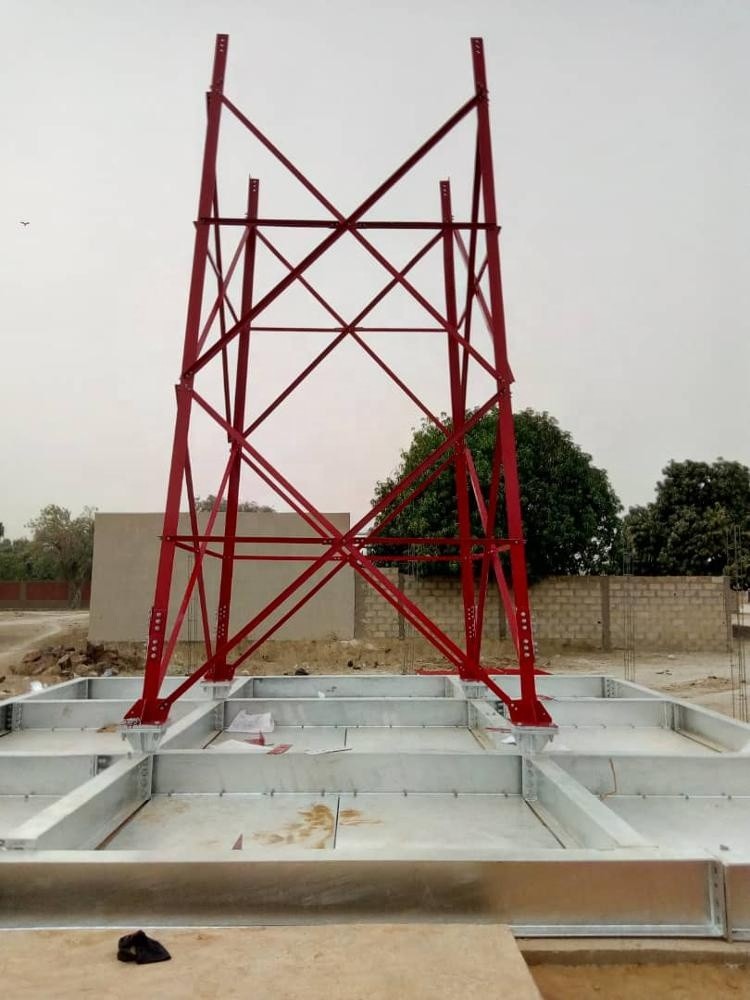

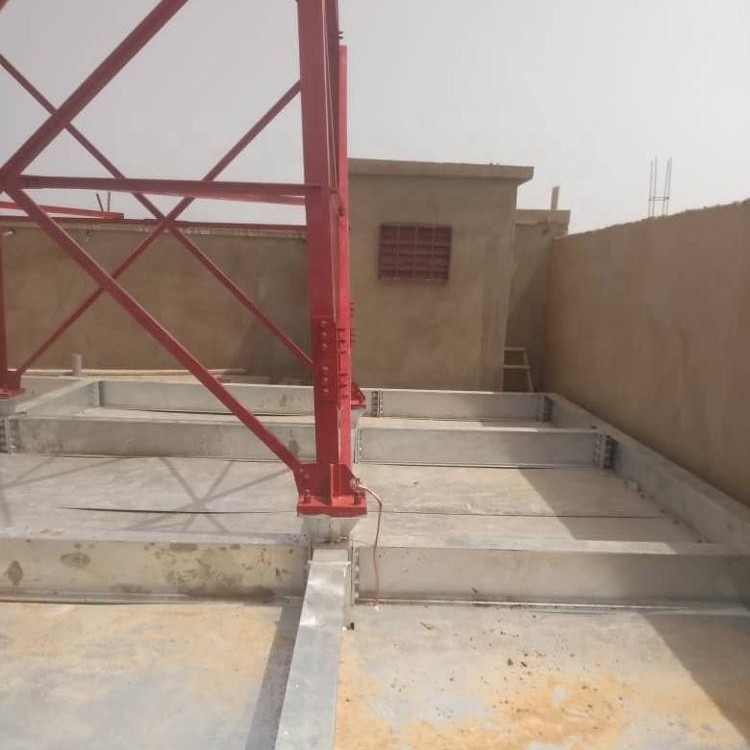

Professional 4-Legged Quadrilateral Angular Steel Lattice Tower Mobile Tower
Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete
conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.
Design and Detailing
We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutiny
to deliver what you need.
Structure Analysis and Calculation
We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection
of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is
overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.
Telecom Structure Erection Guide
If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily
Telecommunication Tower- Goods description and major parameters
|No.||Description||Detailed Specification and Major design Parameters|
|1||Design Code||ANSI/TIA222G, European Standard and others|
1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
|5||Hot-dip galvanization||ISO 1461 2009, ASTM A123|
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
|7||Bolts and Nuts||Mainly ISO 898 grade 6.8 and 8.8 bolts|
|8||Foundation||50KPa, 100KPa, 150KPa soil bearing capacity mainly.|
1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
|11||Return Period||50 Years|
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.
And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.
Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
