Steel Monopole Tower For Telecom Hot Dip Galvanized

Steel Monopole Tower For Telecom Hot Dip Galvanized

  • Steel Monopole Tower For Telecom Hot Dip Galvanized
  • Steel Monopole Tower For Telecom Hot Dip Galvanized
  • Steel Monopole Tower For Telecom Hot Dip Galvanized
Steel Monopole Tower For Telecom Hot Dip Galvanized
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Steel Monopole Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Steel Monopole Tower Material List: Steel Q345 Q245 Q420
Height: 10-120m Surface Treatment: Hot Dip Galvanized
Wind Speed: 100~160km/h 3 Second Gust Usage: Steel Monopole Tower
High Light:

Telecom Steel Monopole Tower

,

Hot Dip Galvanized Steel Monopole Tower

,

Self Supporting Steel Monopole Tower

Steel Monopole Tower For Telecommunication Telecom With Hot Dip Galvanized



Quick Detail:

Self-Supporting Towers are appropriate for nearly all wireless communication applications. Self-Supporting Towers

are typically three or four sided lattice type structures made from solid rod, pipe, or angle. Self-supporting Towers

are ideal for installations where space requirements are limited.



Product Name: Cell Monopole Tower for Telecommunication Industry

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.

Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in field of electric power more than 26 years.

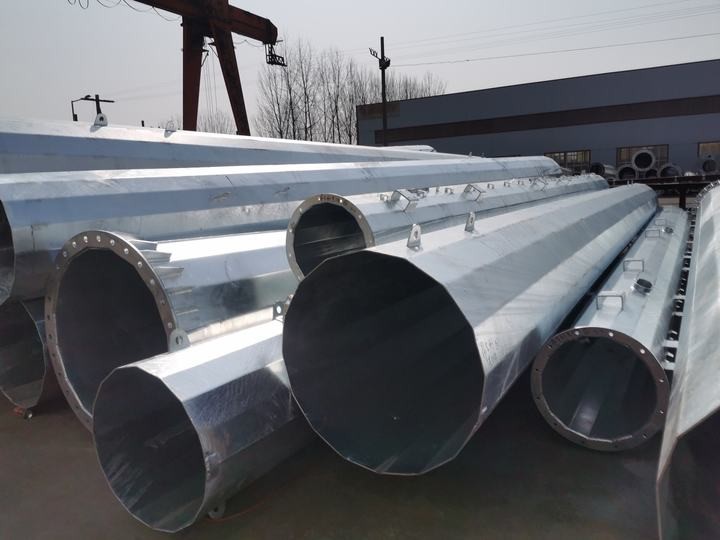

Steel Monopole Tower For Telecom Hot Dip Galvanized 0



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients

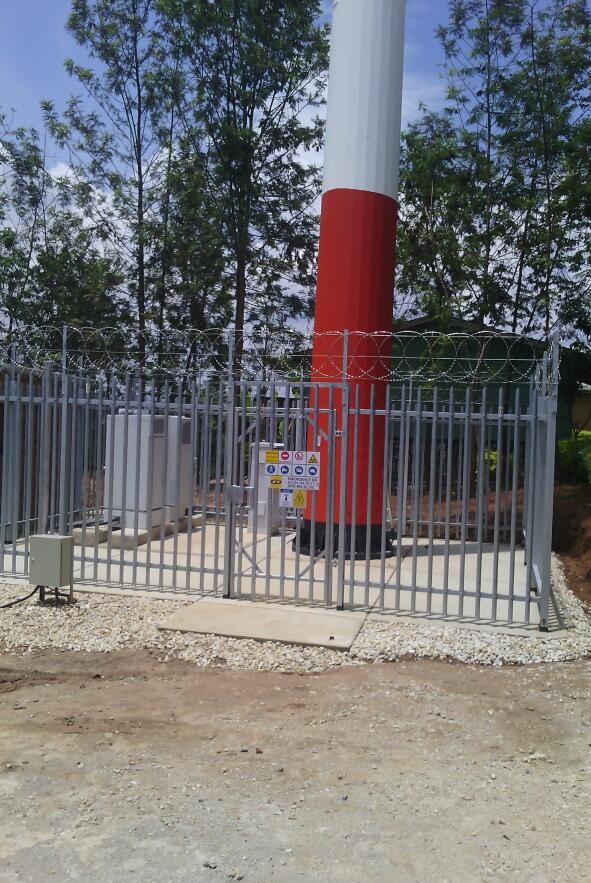

Steel Monopole Tower For Telecom Hot Dip Galvanized 1
