Q355 Hot Dip Galvanized Steel Guyed Tower For Communication

Q355 Hot Dip Galvanized Steel Guyed Tower For Communication

  • Q355 Hot Dip Galvanized Steel Guyed Tower For Communication
  • Q355 Hot Dip Galvanized Steel Guyed Tower For Communication
Q355 Hot Dip Galvanized Steel Guyed Tower For Communication
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Communication Antenna Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Communication Antenna Tower Material List: Steel Q355 & Q245
Height: 10-80m Surface Treatment: Galvanized
Wind Speed: 110~160km/h 3 Second Gust Application: Antenna Tower
High Light:

Steel Q355 Guyed Antenna Tower

,

Hot Dip Galvanized Guyed Antenna Tower

,

Hot Dip Galvanized Steel Guyed Tower

Guyed Tower Hot Dip Galvanized Steel Guyed Wire Mast Communication Antenna Tower



Ningbo Suntech Power Machinery Tools Co.,Ltd.

as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Quick Detail:

Monopole Tower are one of the least intrusive and easiest communication towers to erect. This

fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.

As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe

capacity issues on their networks. While new technology and better wireless antennas can help, the best solution

is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more

stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles

and concealed monopoles (pine poles, flag poles, palm poles, etc.Requiring smaller footprints and being more

aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.

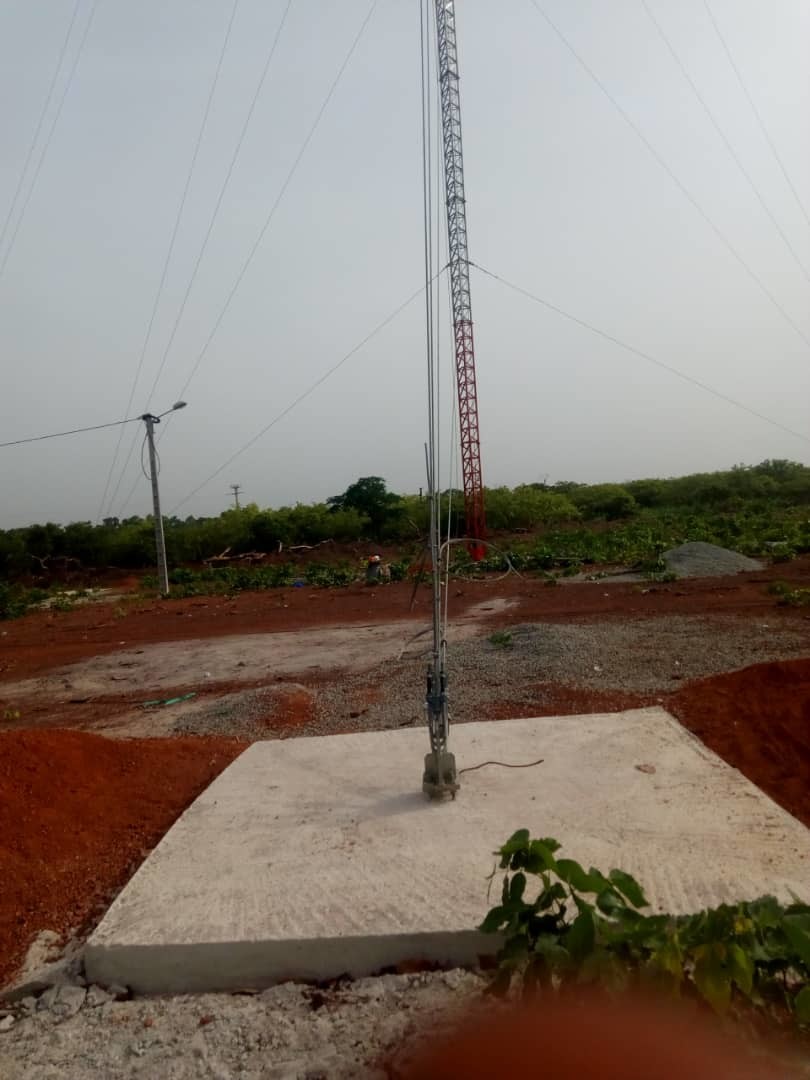

Q355 Hot Dip Galvanized Steel Guyed Tower For Communication 0



Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code

1. Chinese National Standard:

a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line

b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line

2. American Standard:

a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures

b. ACI 318-02 Building Code Requirement for Structure Concrete

2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality

We treat the quality first and 100% inspection ratio.

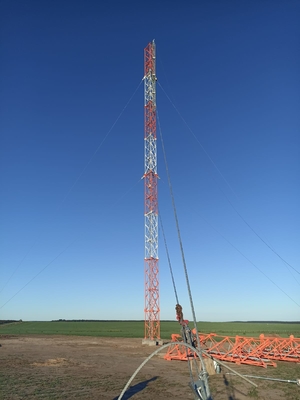

Q355 Hot Dip Galvanized Steel Guyed Tower For Communication 1



Our Products Range,



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



FAQ:



1. Are you a manufacturer or a trading company?

We are a professional electrical manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.

2. Do you offer free samples?

We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.

3. Do you accept our design on products or boxes?

Yes. We accept customized design and we have a professional design team who can design products based on your requirements.

4. How long is your delivery time?

Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.



Factory price

We are our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.



Feedback:

Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services
