GSP Role Reel And Stand 360 Degree Rotation For Smooth Cable Unwinding​

1 PCS
MOQ
Negotiation
Price
GSP Role Reel And Stand 360 Degree Rotation For Smooth Cable Unwinding​
Features Gallery Product Description Chat Now
Features
Specifications
Name: GSP Role Reel And Stand
Item No.: 07125A-07128E
Model: 950-1900
Weight Reel: 48-119KG
Weight Stand: 20-70KG
Warranty: 1 Year
Highlight:

Pine Tree Lattice Steel Tower

,

Pine Tree Tubular Antenna Tower

,

Q235B Lattice Steel Tower

Basic Infomation
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: 950
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 8000 PCS/Month
Product Description

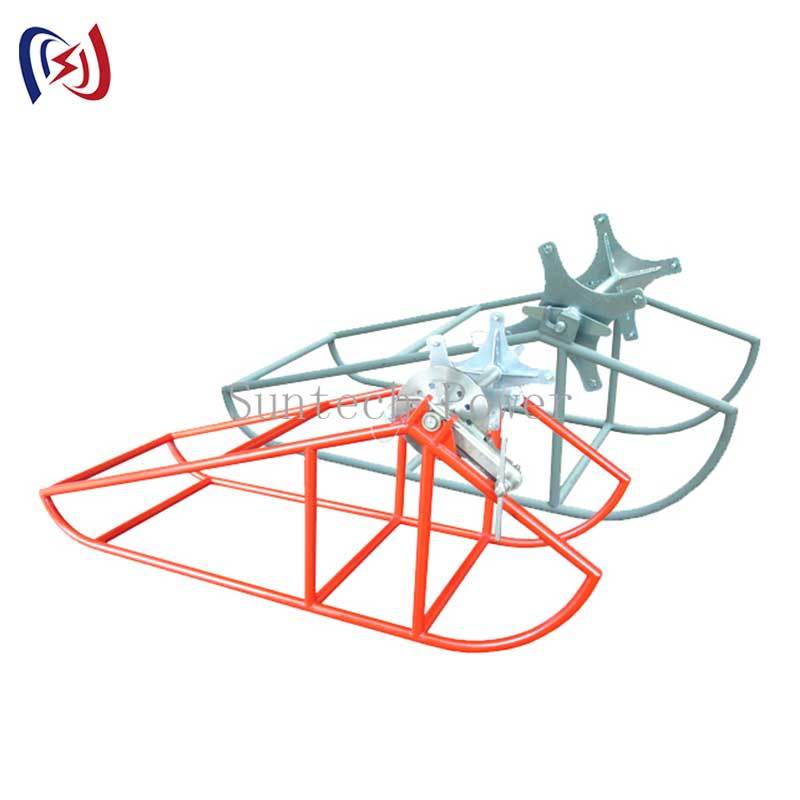

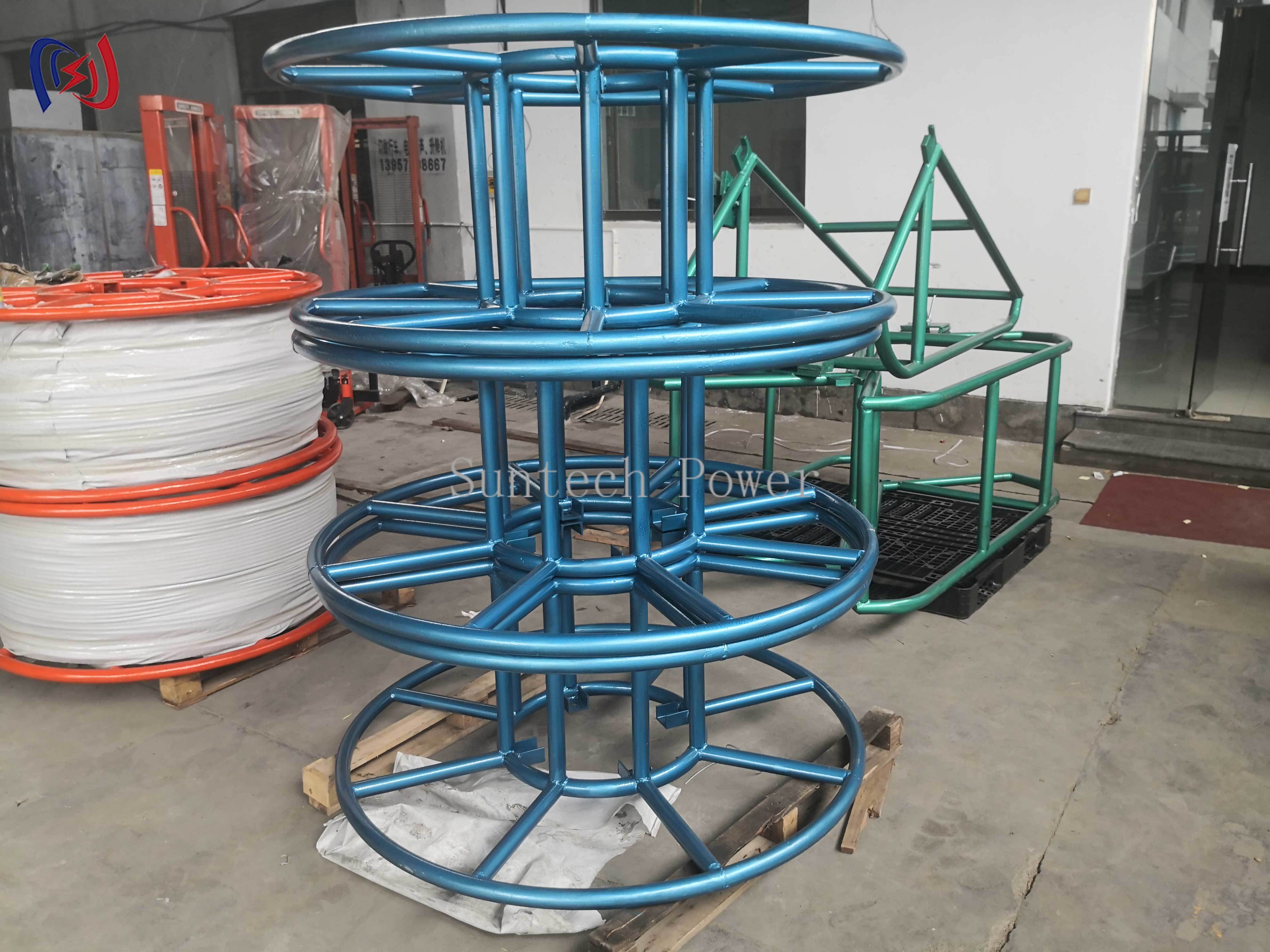

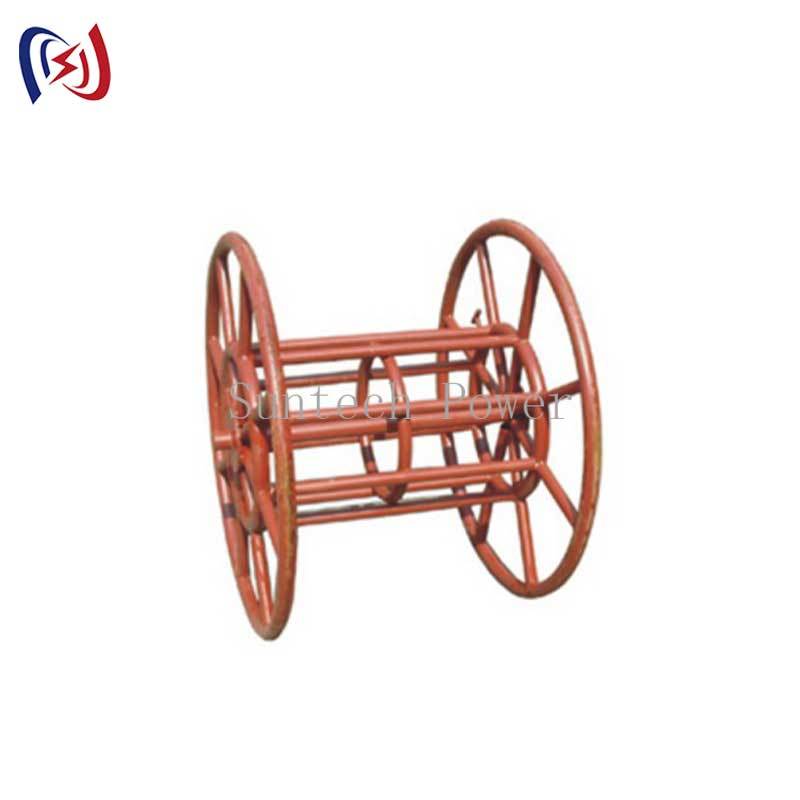

GSP Role Reel And Stand 360 Degree Rotation For Smooth Cable Unwinding​


1. Product Overview​​

The GSP Role Reel and Stand system is engineered for professional cable and rope management in industrial environments. Featuring a heavy-duty steel construction with galvanized coating, this stand supports up to 500kg working load (750kg safety limit) for reels up to 1.5m in diameter. The vertical design optimizes workspace efficiency in confined areas like electrical vaults or ship decks.

​​

2. Key Features​

  • ​​Adjustable Height​​: 6-position pin-lock system (1.0m to 1.8m range)
  • ​​Rotation Mechanism​​: 360° smooth rotation with sealed ball bearings
  • ​​Drum Locking​​: Spring-loaded safety pins secure reels during transport
  • ​​Brake System​​: Manual friction brake with 3 tension settings
  • ​​Modular Assembly​​: Base, column, and top disassemble in <2 minutes

​​

3. Technical Specifications​​

  • ​​Frame Material​​: 5mm thick Q235B carbon steel
  • ​​Surface Treatment​​: Hot-dip galvanized (ISO 1461 standard)
  • ​​Base Dimensions​​: 800mm x 800mm square with leveling feet
  • ​​Environmental Rating​​: IP54 (dust/water resistant)


​​4. Performance Benefits​

  • ​​Labor Efficiency​​: 40% faster cable deployment than ground reels
  • ​​Space Saving​​: 70% smaller footprint than horizontal stands
  • ​​Safety Compliance​​: Meets IEC 61439-1 for electrical construction
  • ​​Durability​​: Withstands 1000+ hours in salt spray testing


​​5. Typical Applications​

  • High-voltage cable laying (35kV-500kV)
  • Ship mooring systems and offshore platforms
  • Mining hoisting operations
  • Industrial plant maintenance

​​

6. Maintenance Protocol​

  • ​​Weekly​​: Inspect brake pads and bearing lubrication
  • ​​Monthly​​: Verify bolt torques (50Nm standard)
  • ​​Annually​​: Reapply anti-corrosion coating if needed


​​7. Economic Advantages​

  • ​​ROI​​: Payback in 5-7 months through labor reduction
  • ​​Damage Prevention​​: Saves $8,000+ per reel in cable wear
  • ​​Logistics​​: 8 units fit in standard 20ft container

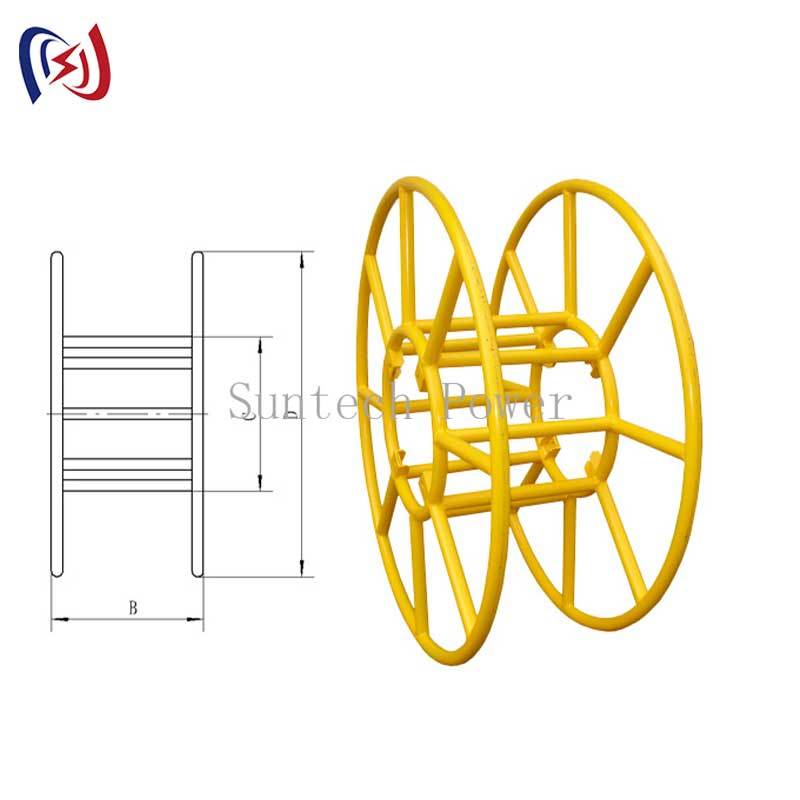

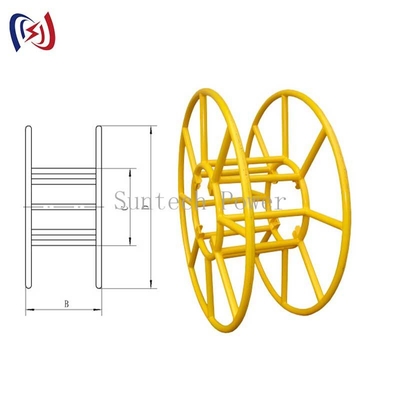

Item number Model

Reel Stand

Dimension(MM)

Weight(KG)
Reel Stand Reel Stand
07125A 07128A 950 Φ950xΦ400x450 48 20
07125B 07128B 1200 Φ1200xΦ570x560 65 30
07125C 07128C 1400 Φ1400xΦ570x560 74 40
07125D 07128D 1600 Φ1600xΦ570x560 102 50
07125E 07128E 1900 Φ1900xΦ570x560 119 70


GSP Role Reel And Stand 360 Degree Rotation For Smooth Cable Unwinding​ 0
