Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO, CE |
Model Number: | Transmission Lattice Steel Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Get The Newest Price |
Packaging Details: | Exported Containers |
Delivery Time: | 30-35 days after deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 90000 Metric Ton/Metric Tons Per Year |
Name: | Electrical Lattice Tower | Item: | Lattice Tower |
---|---|---|---|
Material List: | Q235,Q345 And Q420 | Surface Treatment: | Galvanized |
Application: | Transmission Line Lattice Tower | Usage: | Construction Site |
High Light: | 4 Legs Transmission Lattice Tower,220KV Transmission Line Tower,4 Legs Transmission Line Tower |

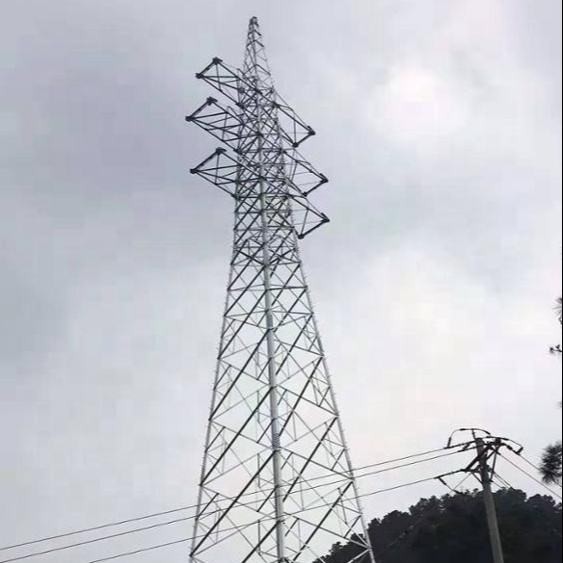

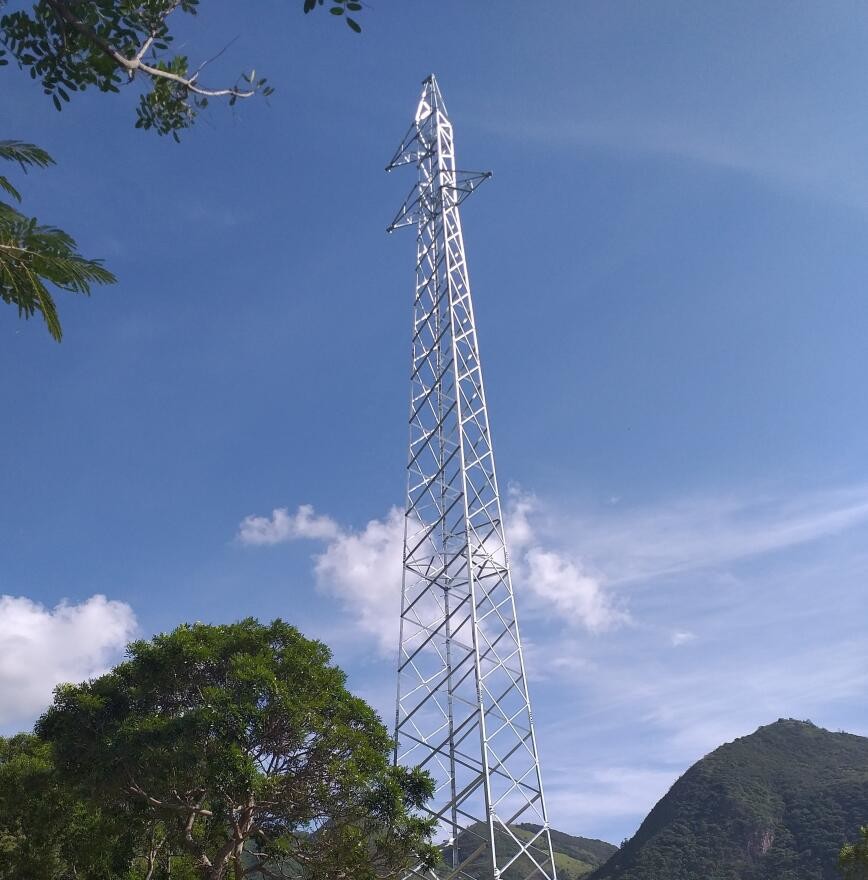

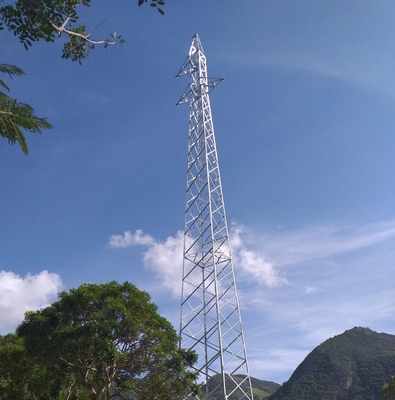

220KV Transmission Line Steel Tower 4 Legs Lattice Tower
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 80 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
2. Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
3. Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
Product | Substation Structure Tower |
Height | 5m to 30m or other height customer requirement |
Suit for | Electric Power Distribution Transmission Steel Tower |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
Q235B/A36,minimum yield strength>=235n/mm2 | |
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 | |
Strength | 2.5KN,5KN,8KN,10KN,12KN |
Torlance of the dimenstion | -0.02 |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade I |
The casing anti-corrosion performance | Class II |
Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160km/hour |
Minimum yield strength | 335mpa |
Minimum ultimate tensile strength | 400mpa |
Max ultimate tensile strength | 620mpa |
Standard | ISO9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape |
Welding Standard : AWS ( American Welding Society ) D 1.1 | |
Thickness | 1mm to 30mm |
Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data. |
Style | Size and styles are variable as per customer request |
Contact Person: Peter
Tel: 86-13958364836
