86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity

86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity

  • 86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity
  • 86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity
86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Telecommunication Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Electricity Steel Tower Usage: Angular Telecom Tower
Material: Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR Surface Treatment: Hot Dip Galvanised
Application: Site Construction Wind Speed: 120KM/H
Structure Classification: II Hot-dip Galvanization: ISO 1461 2009, ASTM A123
High Light:

90M Angle Steel Tower

,

Hot Dip Galvanised Angle Steel Tower

,

3 Leg Angle Steel Tower

Angle Steel Tower Telecom Angular 3 Leg Pole Electricity 86um 90M

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



  • Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



  • Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.

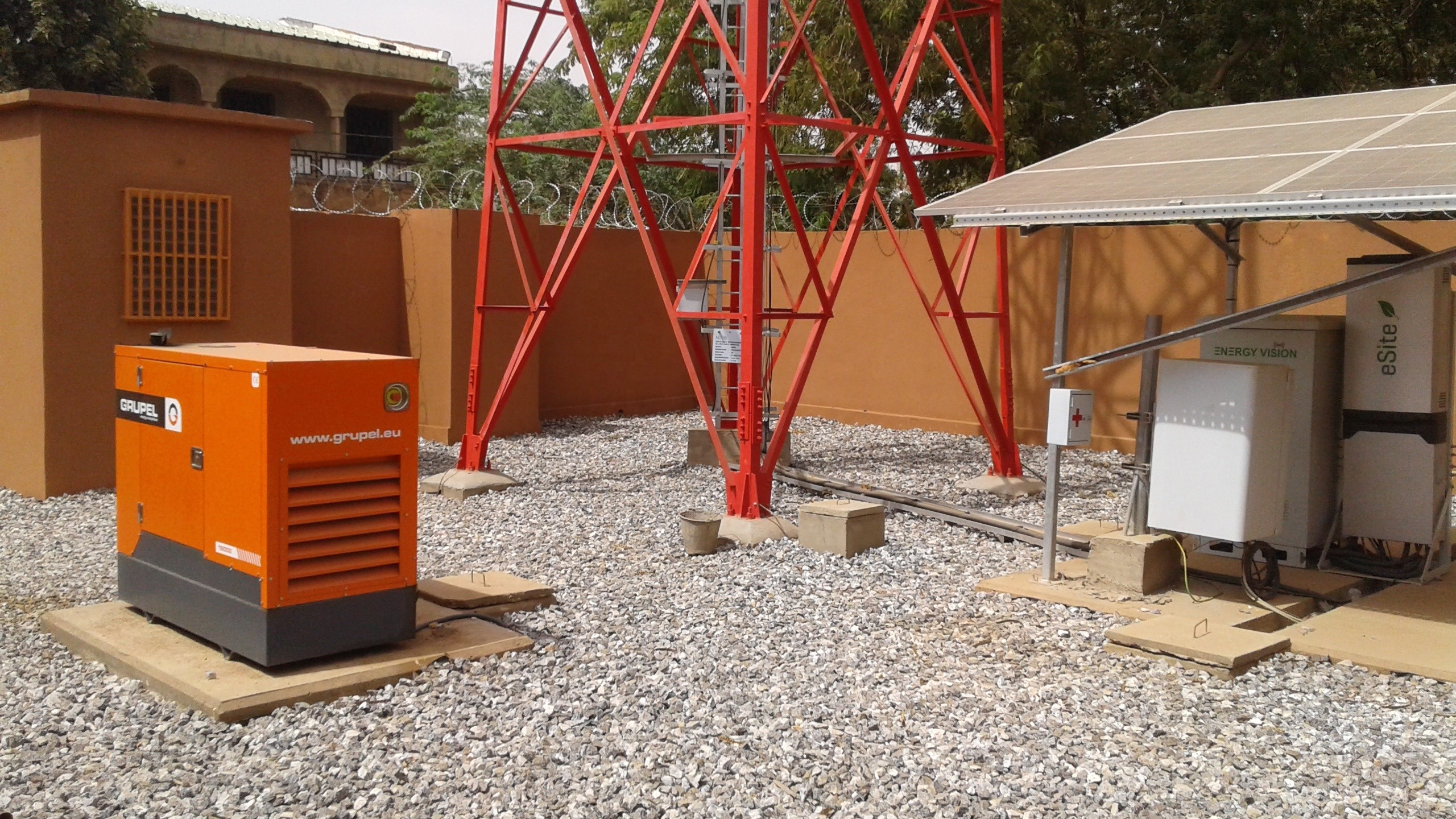

Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily







Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.



Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.



Product name Telecom Angular Tower
Place of Origin China
Type Telecommunication Tower
Brand Name Suntech
Sertification ISO9001
Material Q345B or Q235B
Height 10-90M
Wind speed 30m/s
Surface treatment Hot dip galvanized, thickness is no less than 86um
Lifetime More than 30years



86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity 0
