Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Sets Per Year
Contact Now
Detailed Product Description
Name: Lattic Telecom Tower Material: Steel Q235B/Q345B/Q420
Surface Treatment: Galvanised Lifetime: 20-30 Years
Usage: Site Project Quality Control: Follow ISO 9001 System And Strictly QC Inspection For Raw Material, Prototype Assembly Test, Galvanization Test And Pre-shipment Inspection For The Both Quantity And Quality We Treat The Quality First And 100% Inspection Ratio.
Warranty: 1. Tower Structures: 10 Years 2. Camouflaged Towers A. Barks: 10 Years B. Branches And Leaves: 3 Years
High Light:

Steel Q235B Lattice Tower Telecom

,

Gsm Lattice Tower Telecom

,

Electricity Lattice Tower Telecom

10meters Gsm Telecommunication Lattice Tower Electricity
GSM Telecommunication Electricity Steel Tower/ Antenna Tower/ Lattice Tower

Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.

Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal
tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe

three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),
lifting communication tower, and movable communication tower.

With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity
of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which
service for the signal transmission industry development of the world.We have the complete production line
and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the
electric power poles everyday. A quick production period and delivery schedule ensured our client have more
obvious advantage in their market.
The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate
which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized
and packing for delivery as following shows:

1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.


No.DescriptionDetailed Specification and Major design Parameters
1Design CodeANSI/TIA222G, European Standard and others
2Design Loading1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4Structure ClassificationII
5Hot-dip galvanizationISO 1461 2009, ASTM A123
6Steel Grade1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7Bolts and NutsMainly ISO 898 grade 6.8 and 8.8 bolts
8Foundation50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9Tower Type1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10Warranty1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11Return Period50 Years
12Accessories1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients

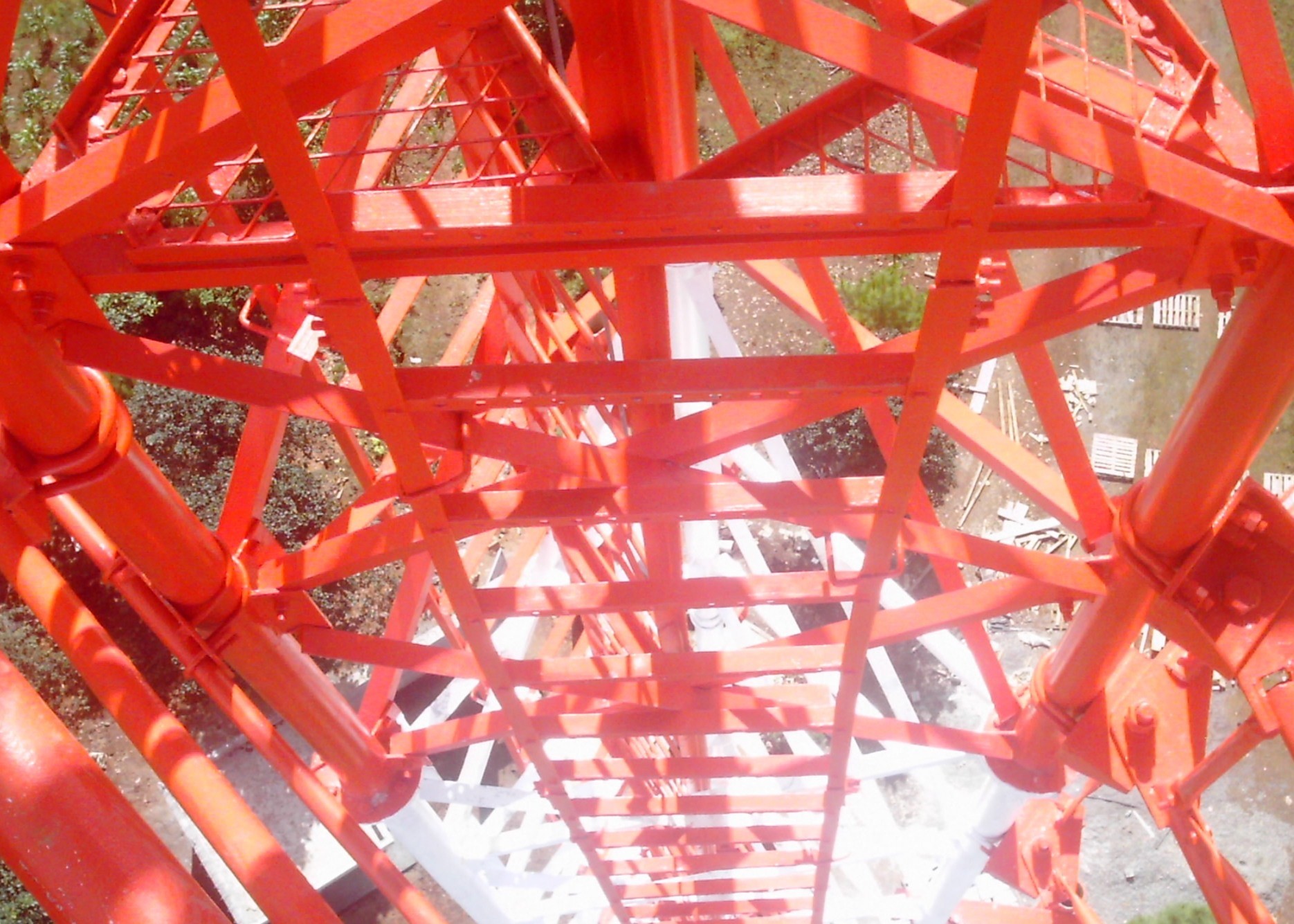

10 Meters Gsm Telecommunication Lattice Tower Electricity 0

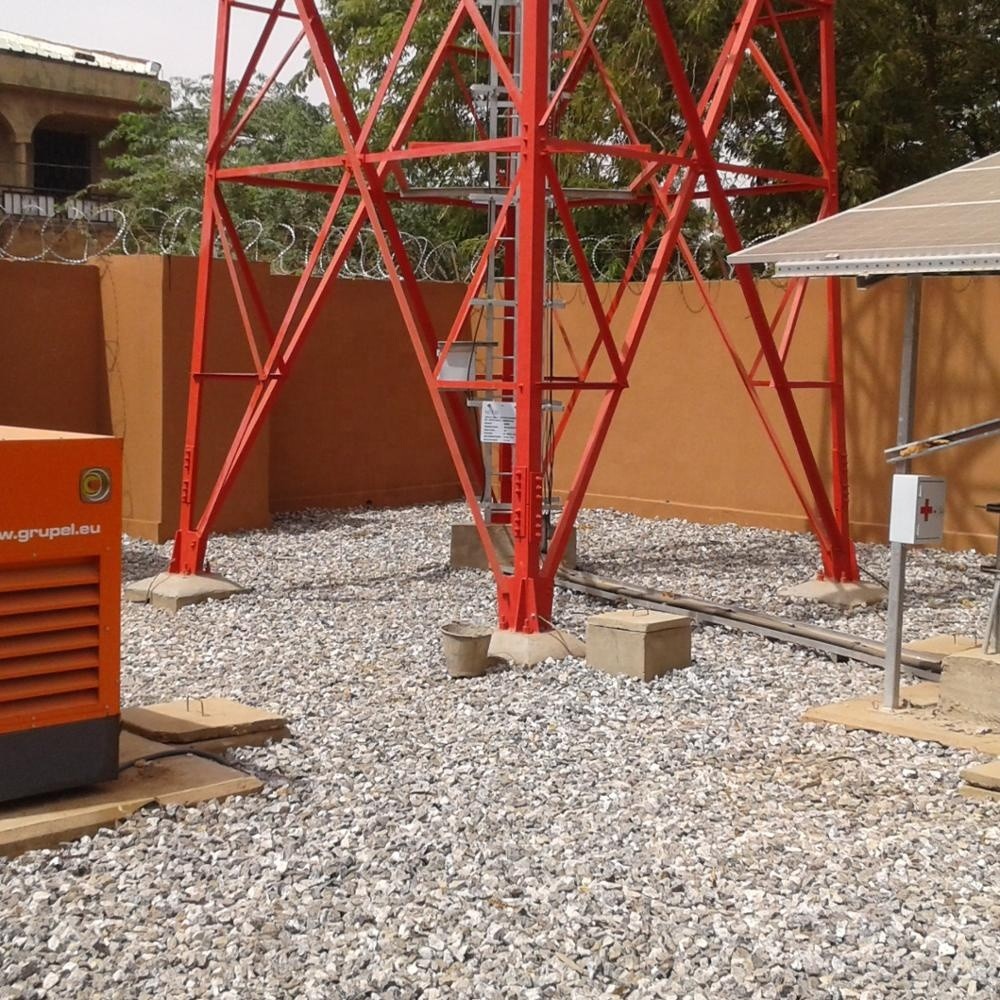

10 Meters Gsm Telecommunication Lattice Tower Electricity 110 Meters Gsm Telecommunication Lattice Tower Electricity 2
