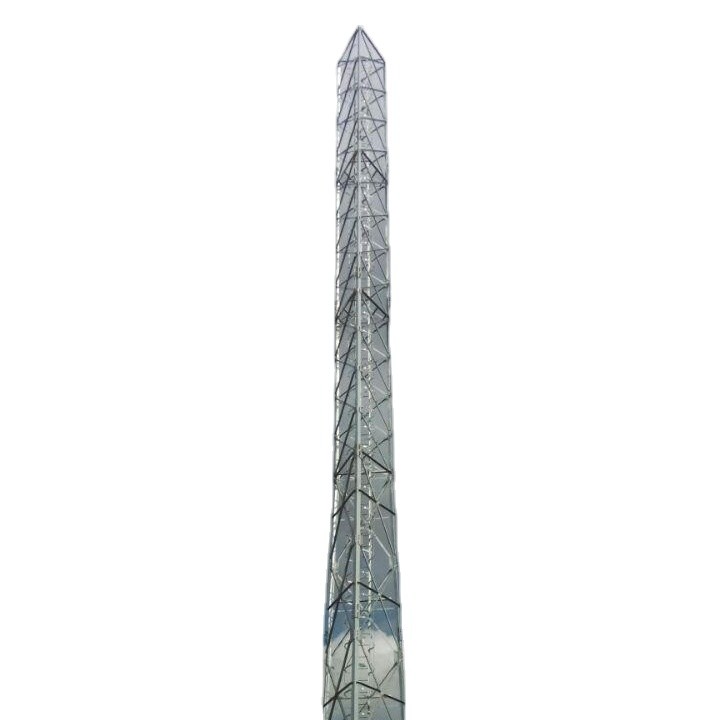

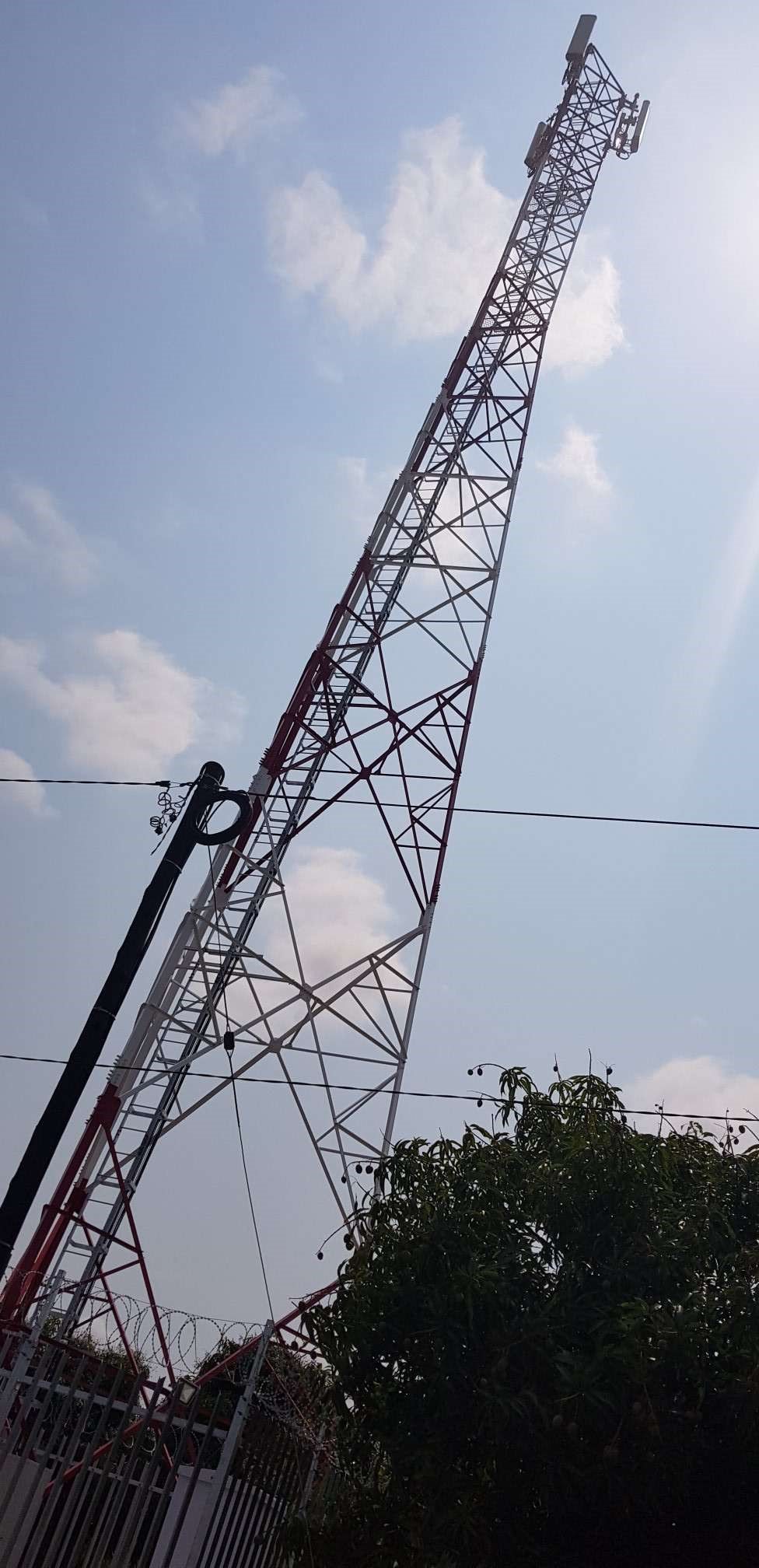

GSM Telecommunication Electricity Steel Tower/ Antenna Tower/ Lattice Tower
Features
- 1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3.Convenient transportation and installation.

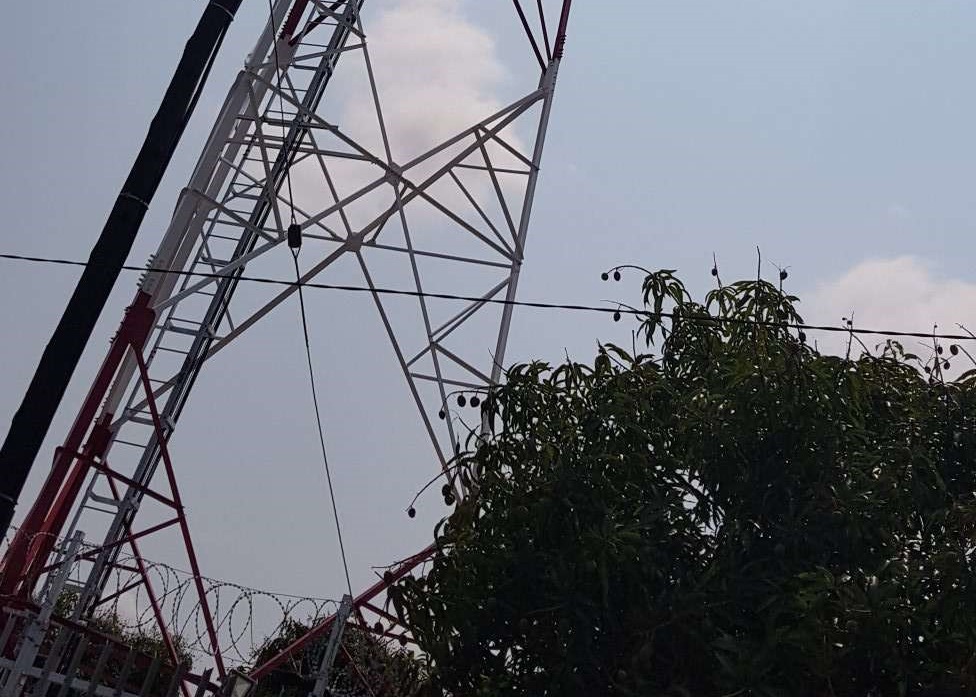

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and
other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,
ultrashort wave, wireless network signal transmission and transmission.
Structure Analysis and Calculation
We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection
of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is
overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Detailed Product description as follows :
1. Circle /Polygonal
2. Slip joint/Flange Joint
3. Hot Dip Galvanization (ASTM123)
4. ISO9001 / ISO14001 certificate
5. Slip joints result in easy field assembly and erection
6. Painting Optional: according to customer's requirements
7. Design standard: TIA/EIA-222-G/F
8. Design software: MS TOWER
Our Services
Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project
management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide
fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries
Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
| No. |
Description |
Detailed Specification and Major design Parameters |
| 1 |
Design Code |
ANSI/TIA222G, European Standard and others |
| 2 |
Design Loading |
1. Antenna load area as per specified by Clients worldwide. |
| 2. Wind speed as per requested by the clients. |
| 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 |
Structure Classification |
II |
| 5 |
Hot-dip galvanization |
ISO 1461 2009, ASTM A123 |
| 6 |
Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR |
| 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 |
Bolts and Nuts |
Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 |
Foundation |
50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 |
Tower Type |
1. 3 Leg Self supported Angular Towers |
| 2. 3 Leg Self supported Tubular Towers |
| 3. 4 Leg Self supported Angular Towers |
| 4. 4 Leg Self supported Tubular Towers |
| 5. Guyed Mast |
| 6. Monopole Tower |
| 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree |
| 8. RDS Tower: Rapid Deploy Site/Tower |
| 9. Rooftop Towers |
| 10. Smart Poles |
| 10 |
Warranty |
1. Tower structures: 10 years |
| 2. Camouflaged towers |
| a. Barks: 10 years |
| b. Branches and leaves: 3 years |
| 11 |
Return Period |
50 Years |
| 12 |
Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
| 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light |
| 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. |
| 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. |
| 5. ACDB as per specified by clients |
| 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. |
| 7. Fall arrest system: GB and CE certificate fall arrest system. |
| 8. Optical Fiber Cable: as per specified by client |
| 9. Generator: as per specified by client |
| 10. Canopy and Generator Cage: as per specified by clients |
