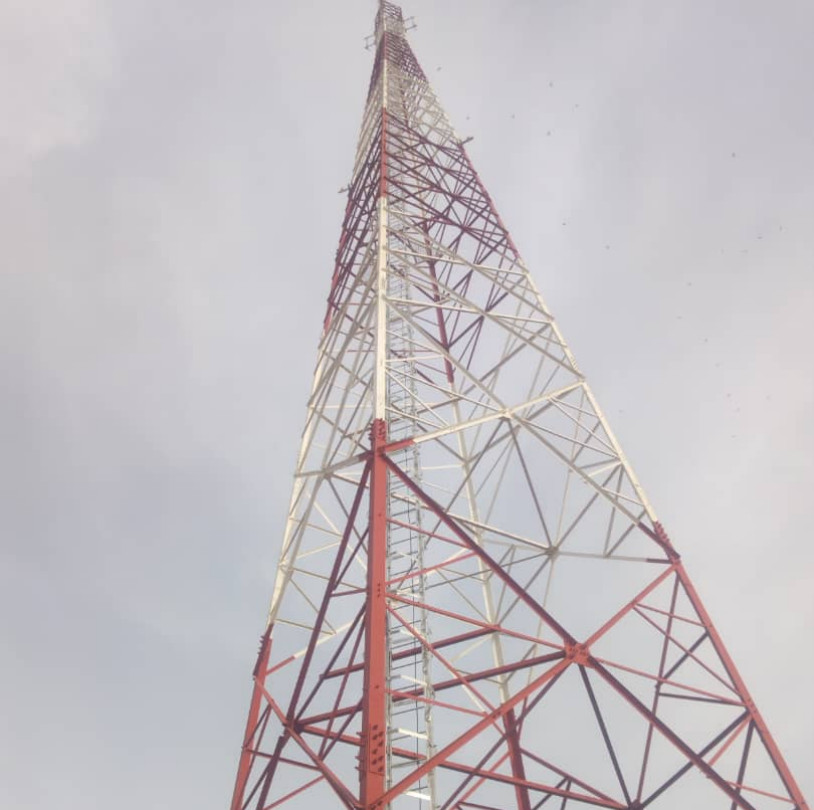

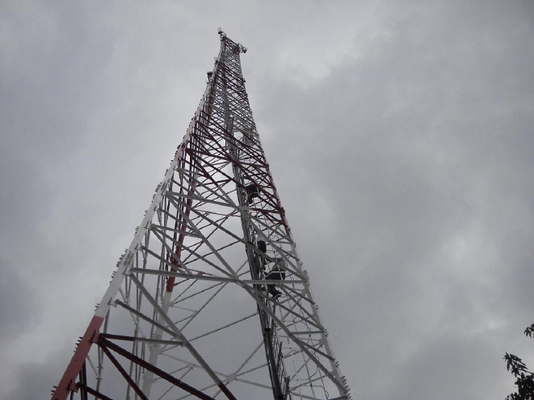

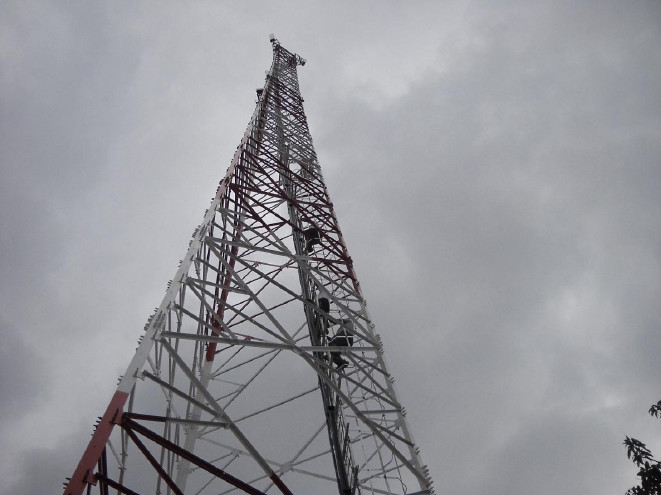

Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg

Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg

  • Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg
  • Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg
Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Steel Tower Material: Steel Q235B/Q345B/Q420
Application: Telecommunication Tower Wind Speed: 110KM/H
Surface Treatment: Hot Dip Galvanised Lifetime: 25-30 Years
High Light:

hot dip galvanization telecommunication tower

,

4 leg telecommunication tower

,

3 leg telecommunication steel tower

High Quality Hot Dip Galvanization 3 Or 4 Leg Telecommunication Steel Tower



With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.



The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate

which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized

and packing for delivery as following shows:



1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa.

Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs

and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close

scrutinyto deliver what you need.



Tower Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.



Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients



Hot Dip Galvanization Telecommunication Tower 3 Or 4 Leg 0
