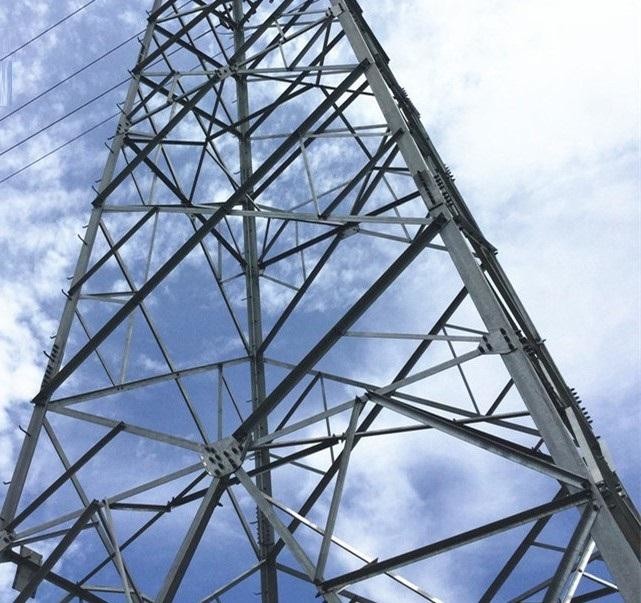

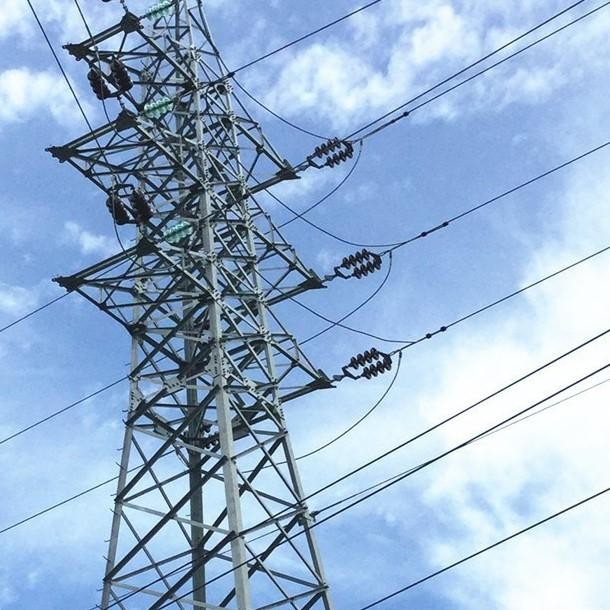

10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower

10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower

  • 10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower
  • 10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower
10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Lattice Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the latest prices
Packaging Details: Exported Containers
Delivery Time: 35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 700000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Name: Steel Lattice Tower Application: Transmission Line
Height: 10m-100m Voltage: 10kv-750kv
Usage: Construction Site Lifetime: Over 30 Yeas, According To Installing Environment
High Light:

10KV Galvanized Lattice Tower


750KV Galvanized Lattice Tower


HDG Power Transmission Tower

10KV To 750KV Power Transmission Lattice Tower Steel Post Galvanized Lattice Tower


Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.


Transmission towers may be converted to full Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors


Product Name Electric Power Transmission Line Tower
Brand Suntech Tower
Material Steel Q355/Q255
Surface treatment Hot Dip Galvanized
Voltage Grade 33KV~500KV (33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Color Customized
Wind pressure 120km/h
certification ISO9001:2015
Lifetime Over 30 years,According to Local Environment
Welding Welding Standard :AWS ( American Welding Society ) D 1.1
Wall thickness 2~30mm
Life Period More than 30 years, it is according to installing environment


Competitive Advantage:


Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit

our company anytime.


10KV To 750KV Power Transmission Hot Dip Galvanized Lattice Tower 0
