Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Get the newest prices |
Packaging Details: | Exported Containers |
Delivery Time: | 30-35 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 6000 Ton Per Month |
Product Name: | Steel Tower | Material: | Steel Q235B/Q345B/Q420 |
---|---|---|---|
Parts: | Steel Tower Bolts And Nuts | Function: | As A Frame Base Structure |
Application: | Electric Power Line Transmission | Usage: | For High VoltagTransmission Lines And Blow Transmission Line |
High Light: | Q420 Transmission Line Tower,Steel Q345B Transmission Line Tower,Steel Q235B Lattice Transmission Tower |

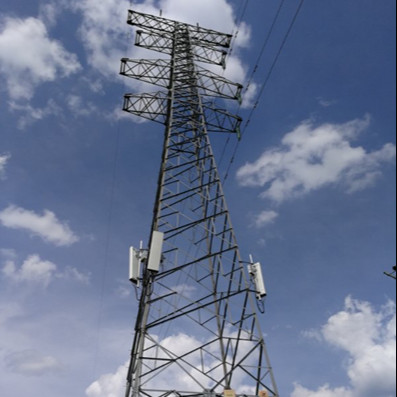

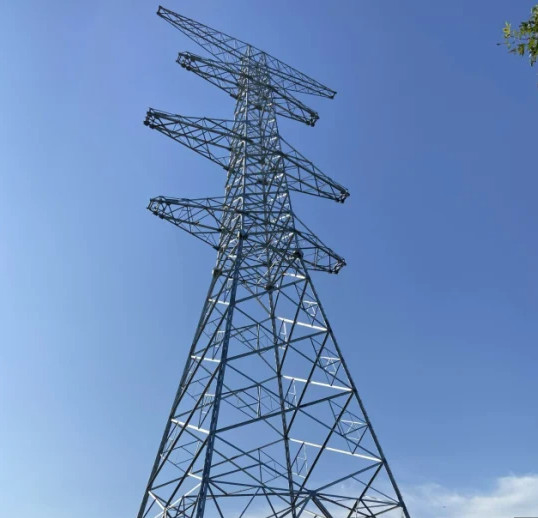

High Voltage Electricity Pylons Lattice Angle Steel Towers Transmission Line Tower
Quick Detail:
1. angle steel tower is also named as lattice tower, electrical tower;
2. angle steel tower is widely used as electrical power transmission and distribution;
3. angle steel tower is the frame structure for all kinds of power lines, especially for above 100KV high
voltage electrical powers;
Product name | lattice tower |
Raw Material | Steel Q235B/Q345B/Q420 |
Tower Type | Angel steel tower |
Related Fittings | Steel tower bolts and nuts |
Related Products | Transformer substation structure, telecommunication steel tower |
Tower Weights | Designed as customers' requirements |
Voltage Grade | 30-1100KV |
Usage | for high voltage transmission lines and blow transmission line |
Application | electric power line transmission |
Quality inspectation | ISO9001 |
Valid year | 30-50 years |
A type of a power transmission tower depends on various factors such as voltage (33kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).
The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing coating thickness depends on the weather conditions at the location of tower.
Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.
